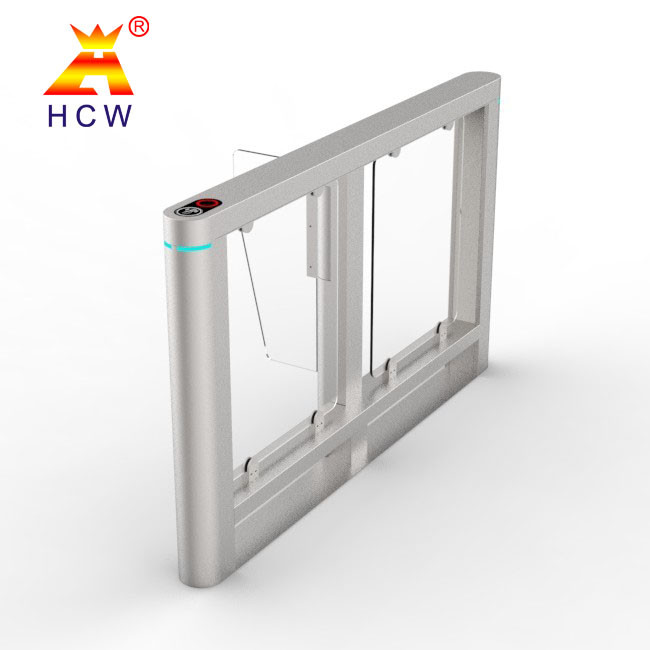

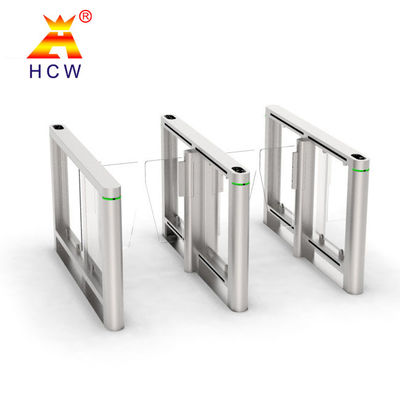

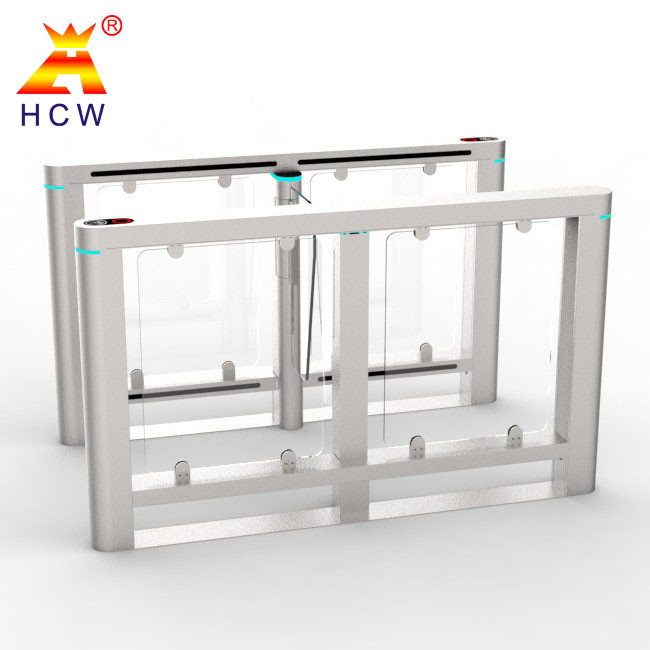

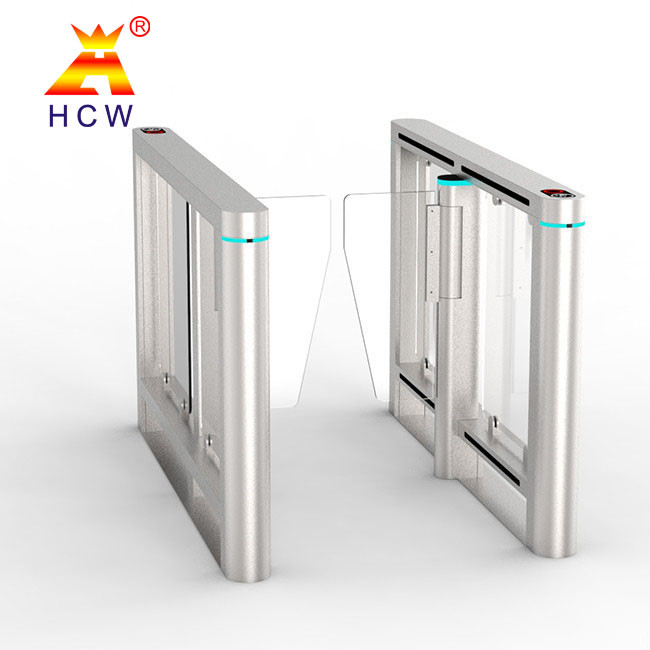

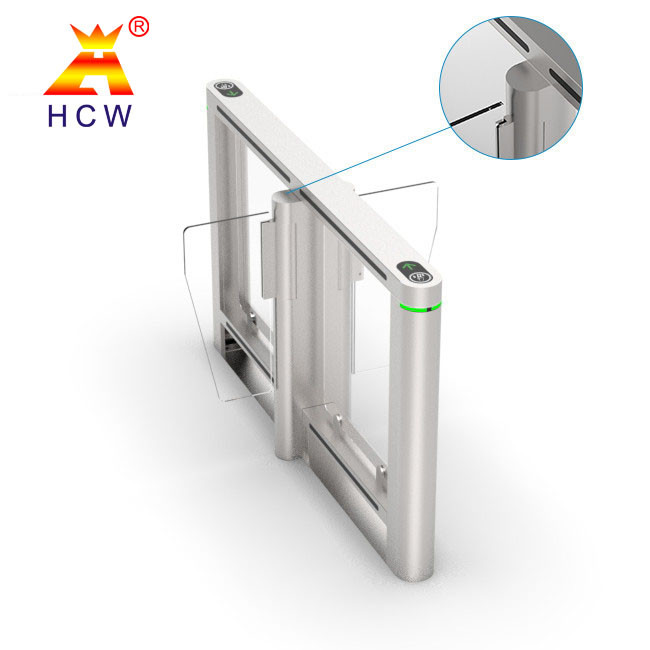

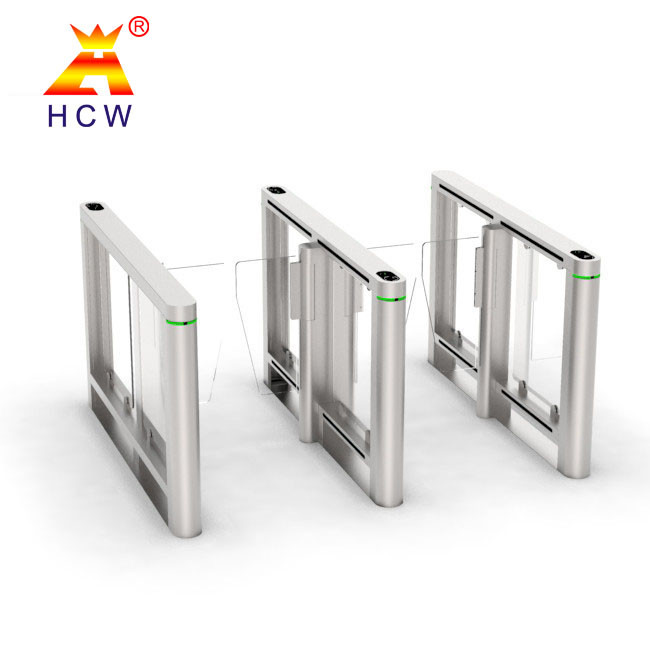

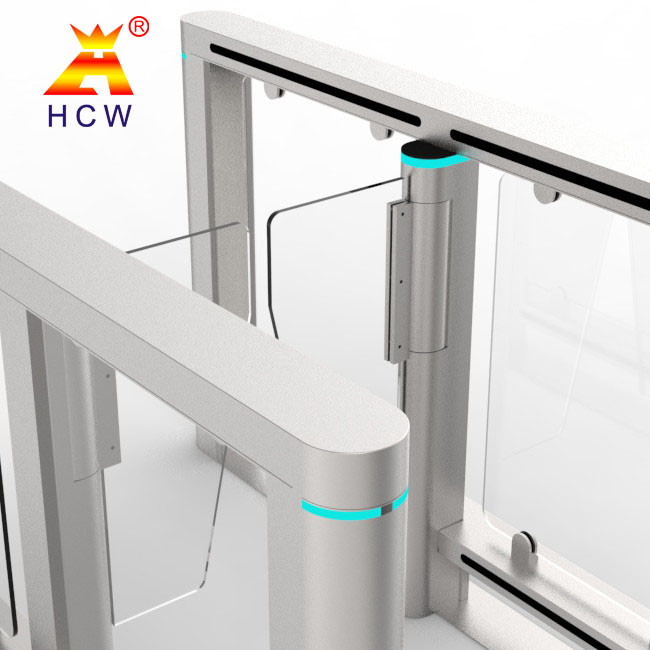

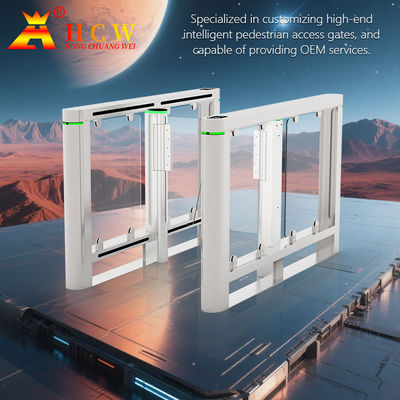

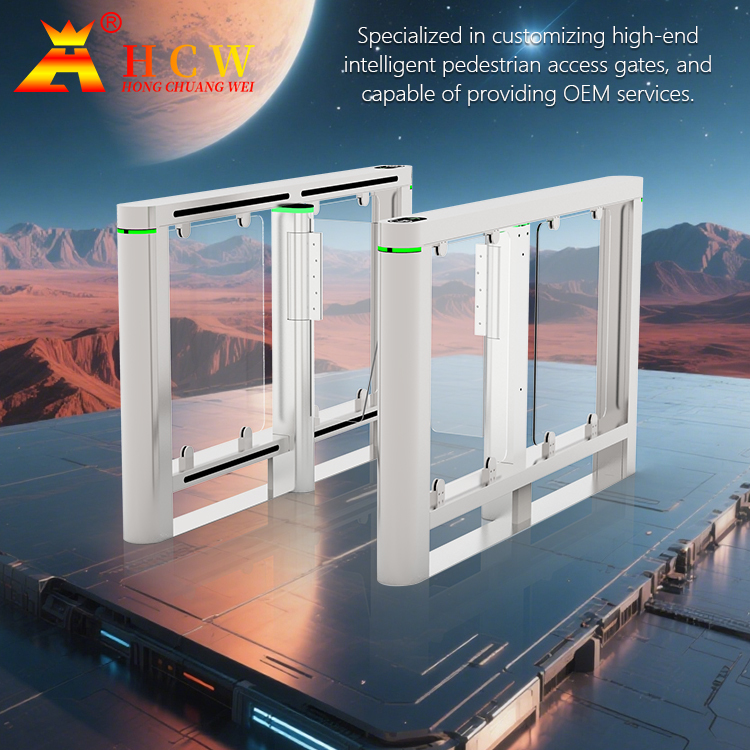

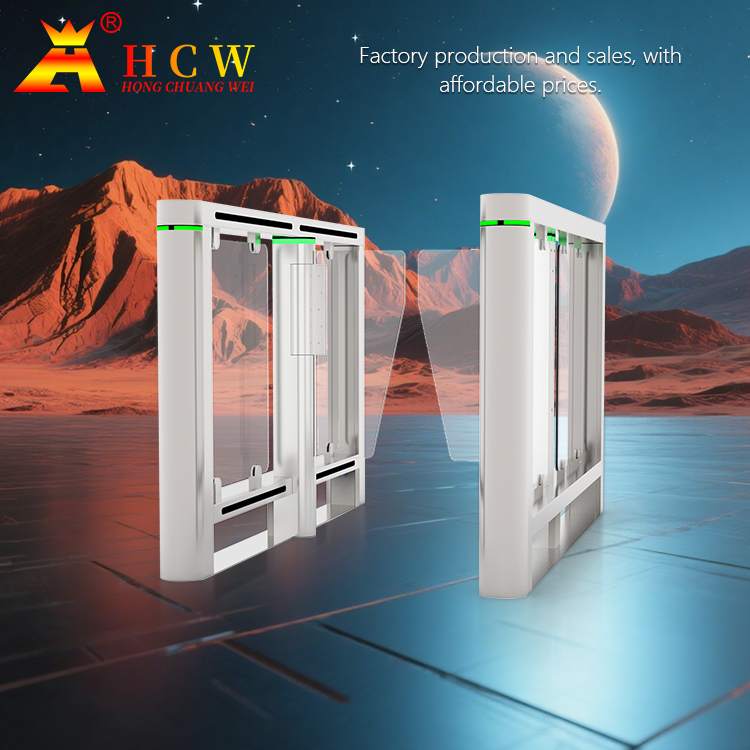

Subway Speed Gate Turnstile 0.8s Access Control Turnstile Gate

Place of Origin Guangdong,China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW422
Minimum Order Quantity 2
Price USD 769-839 per piece
Packaging Details wood cases
Delivery Time 6-10 working days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Chassis Material 304 Stainless Steel Motor Power 40W
Entrance Width Optional 500-950mm Open And Close Time 0.5 0.8s
Communication Interface Switch Value, Optional,rs232/485 Number Of Passers 30-40 Persons/min
High Light

Subway Speed Gate Turnstile

,

0.8s Speed Gate Turnstile

,

304SS Access Control Turnstile Gate

Leave a Message
Product Description

Speed Gate Subway Gates Access Control Gates Luxury Small Swing Gates


Triple anti-pinch function, illegal alarm, tailgating alarm, power off normally open
Support face recognition, QR code recognition, ID card recognition, IC/ID card recognition
Can be used for building visitor system, scenic ticketing system, membership fitness system, campus system
Independent research and development of the motherboard, powerful, stable performance, easy installation and maintenance
High-precision brushless motor and movement with a lifespan of 5 million times
304 stainless steel chassis, the swing arm can be selected from acrylic or stainless steel
With power failure emergency function, the channel is normally open after power failure, meeting fire protection requirements

  • Only authorized personnel can pass,and when unauthorized personnel break in, it will emit sound and light buzzer alarm
  • Flexible selection of open and closed modes,two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
  • Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
  • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time (additional horn is required)
  • Anti-shock function, the electromagnetic lock will automatically lock the swing arm when it does not receive the door opening signal. When the swing arm is hit, the swing arm will automatically open to the set angle. The electromagnetic lock will automatically lock, with a maximum impact of 120Nm.
  • With self-detection, self-diagnosis, and automatic alarm functions; including illegal intrusion alarm, anti-pinch alarm, anti-tailing buzzer alarm (additional horn required)
  • Remote control management function
  • Can be run online or offline
  • LED traffic direction indication, display traffic status
  • When the power is cut off, the swing arm automatically opens the cabinet, the passage is in a smooth state, and personnel can pass freely to prevent panic



Technical parameter
Product model CW422
Power supply AC220V±10%,50HZ±10% HZ
Working environment -25℃-70℃
Relative humidity ≤90%
Motor brushless motor
Motor power 40W
Communication interface switch value.RS232
Number of passers 30~40/min
Infrared quantity 8pairs
Working life 2 million times
Normal service life 3 million times
Channel width size 600mm~900mm
Swing material 10mm Plexiglass
Product size L 1600mm x W 120mm x H 965 mm

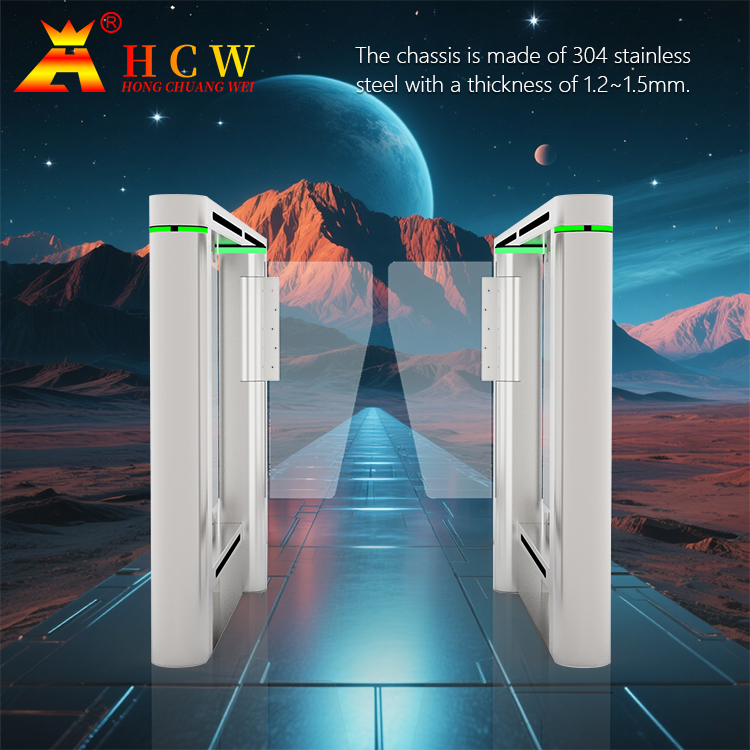

Chassis material National standard 1.2~1.5mm 304 stainless steel
Packing weight About 70 KG(single channel)
Application environment Indoor or canopy
Configuration instructions Without voice and battery




FAQ
1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate
according to your actual site, and produce different sizes, software and functions.
2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,
One-year warranty and lifetime technical support.
3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.
4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the
products and packages.
