Infrared Anti Pinch Speed Gate Turnstile 130W Swing Barrier Turnstile

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW427
Minimum Order Quantity 2
Price USD 750-800 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Motor Servo Motor IR Sensor Standard 6 Pairs
Work Environment Outdoo(Canopy)and Indoor Open Direction Single And Double(optional)
Rated Power 130W Input Control Signal Switch Value RS232, 485
Opening Speed 0.3~0.85seconds
High Light

130W Speed Gate Turnstile


Infrared Speed Gate Turnstile


130W swing barrier turnstile

Leave a Message
Product Description

High speed passing infrared anti-pinch turnstile swing speed gate


CW427 high-end speed pass anti-collision swing turnstile gate,adopts servo drive + high-speed servo motor, 8 pairs of infrared detection sensors, long life and high stability,high efficiency and anti-tailing,supports various IC/ID card readers,barcode readers,and identity Card reader, etc.,easy to hook up with the access control system.It is widely used in the entrance and exit control of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens, etc.



  • Only authorized personnel can pass,and an audible and visual alarm will be issued when unauthorized personnel break in
  • Normal open and normal closed modes can be flexibly selected,and two-way passing can be used. The opening and closing speed of the door wing can also be set according to the flow of people to improve the efficiency of the equipment
  • Anti-following tracking control technology, strictly preventing unauthorized personnel from passing through
  • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time
  • Anti-shock function, when the door opening signal is not received,the swing arm is automatically locked, and the swing arm can be opened with a maximum impact of 120Nm
  • With self-detection, self-diagnosis,and automatic alarm functions; including illegal intrusion alarm,anti-pinch alarm,anti-tailing alarm
  • Remote control management function
  • It can be run online or offline
  • LED passing direction indication, showing passing status
  • When the power is cut off,the swing arm automatically opens,the passage is in a smooth state,and personnel can pass freely to prevent panic
  • Automatic reset function: after opening the door,the system will automatically cancel the user's permission for this pass if the user does not pass within the specified time,and you can set the passing time.


Technical parameter:
Product model CW427
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -40℃-80℃
Relative humidity ≤90% No condensation
Motor servo motor
Rated power 40W
Input control signal Switch value or RS232, 485
Running speed 30~50 people/minute
Infrared beam 8 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600mm~1100mm
Door wing material 10mm plexiglass
Product Size L 1600mm x W 120mm x H 980mm
Channel frame National standard 1.5mm 304 stainless steel
Package weight About 45 KG (single side road)

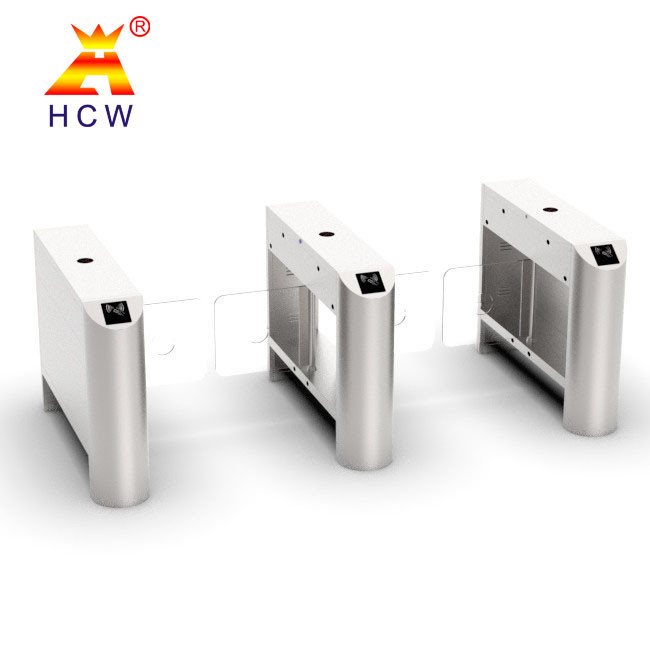

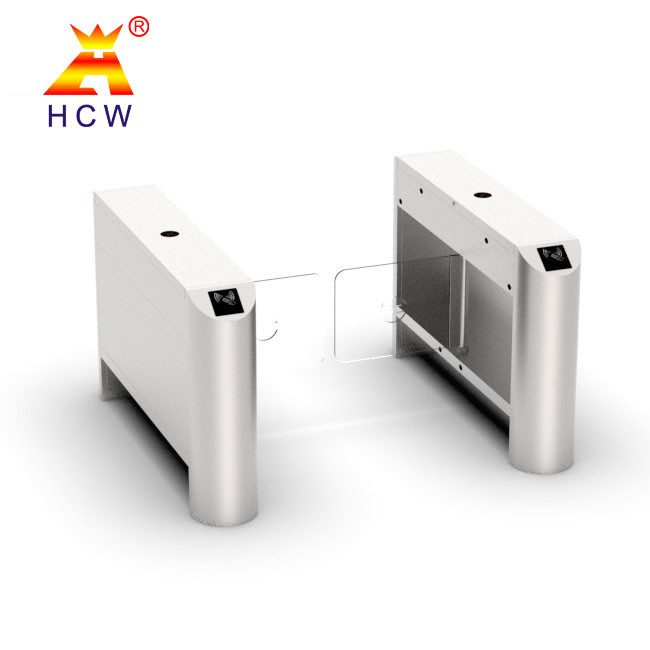

Infrared Anti Pinch Speed Gate Turnstile 130W Swing Barrier Turnstile 0Infrared Anti Pinch Speed Gate Turnstile 130W Swing Barrier Turnstile 1
