1.5mm 304 Stainless Steel Turnstile Access Control 0.3s~1s Adjustable Speed
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Motor | DC Brushless Motor | Size | 1600mm*120mm*965mm |
|---|---|---|---|
| Function | RFID Reading/FR Reader | Arm Material | 10mm Acrylic |
| Language | English/chinese | Application | Indoor/outdoor |
| Temperature | -25~70°C | ||
| Highlight | 1.5mm Stainless Steel Turnstile,304 Stainless Steel Turnstile,1.5mm turnstile access control |
||
Product Description

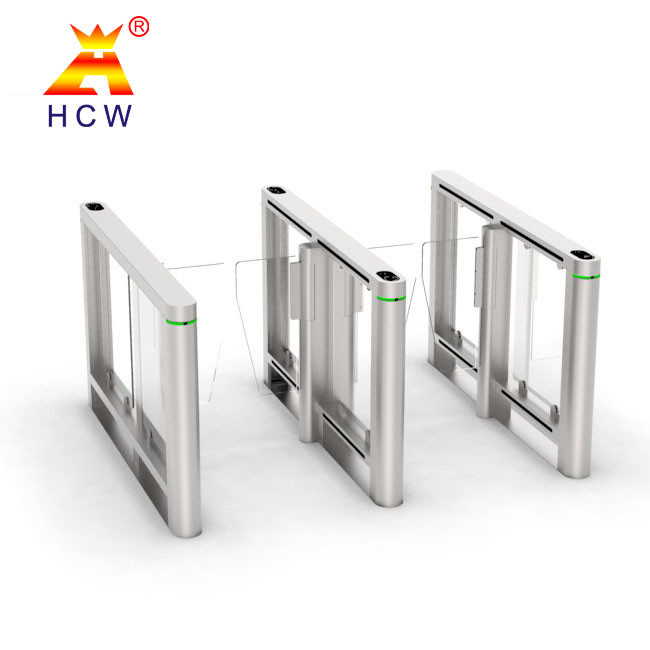

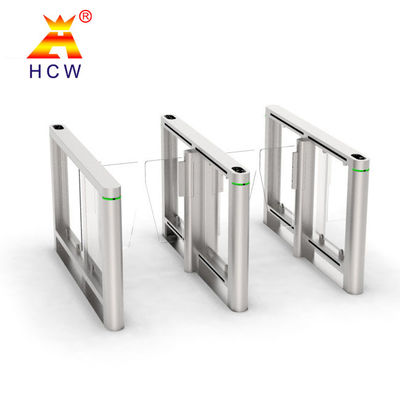

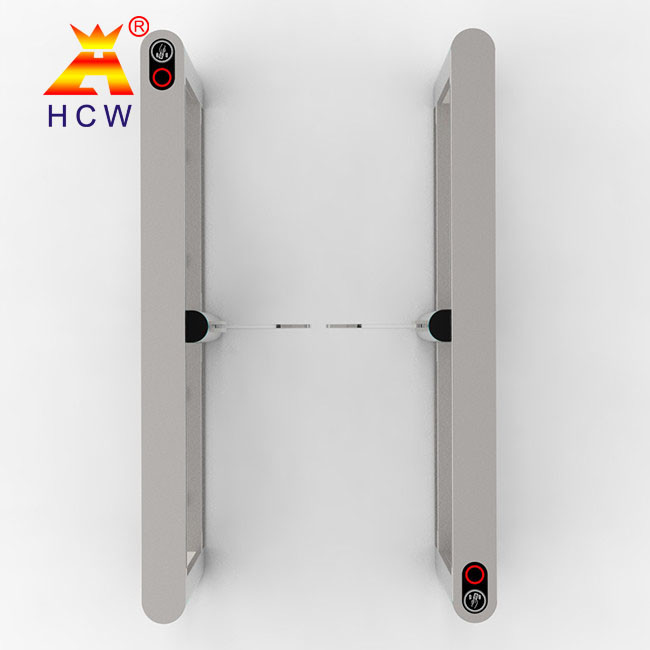

Access Control High Speed Turnstile Gate With 0.3s~1s Adjustable Speed
CW422 high-end speed pass anti-collision swing gate, adopts servo drive + high-speed servo motor, 8 pairs of infrared detection sensors, long life and high stability, high efficiency and anti-tailing, supports various IC/ID card readers, barcode readers, and identity Card reader, etc.,easy to hook up with the access control system. Widely used in the entrance and exit control of CBD business centers, government and enterprise office buildings, high-end residential areas, kindergartens, etc.
•Optical turnstile is designed to control pedestrians entering or exiting restricted areas,usually used of high pedestrian traffic flow in directions.
•The body is made from brushed stainless steel which creates a seamless and elegant access point to blend into most indoor environment.
•It can be integrated with any kind of access controller system (e.g.: RFID device, Push button, Fingerprint and Biometric device).
•In case of emergency, the Optical Turnstile arm will open automatically to allow free passage.
•Optical Turnstiles are suited for elegant and luxury entrance solutions.
| Technical parameter | |
| Product number | CW422 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor | 40W brushless DC |
| Rated power | 70W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30~40 people/minute |
| Infrared beam | 6 pairs |
| Number of trouble-free runs | 3 million times |
| Average life span | 5 million times |
| Channel width | 600~900mm |
| Swing arm material | 10mm Acrylic |
| Product Size | 1600*120*965mm(single movement) |

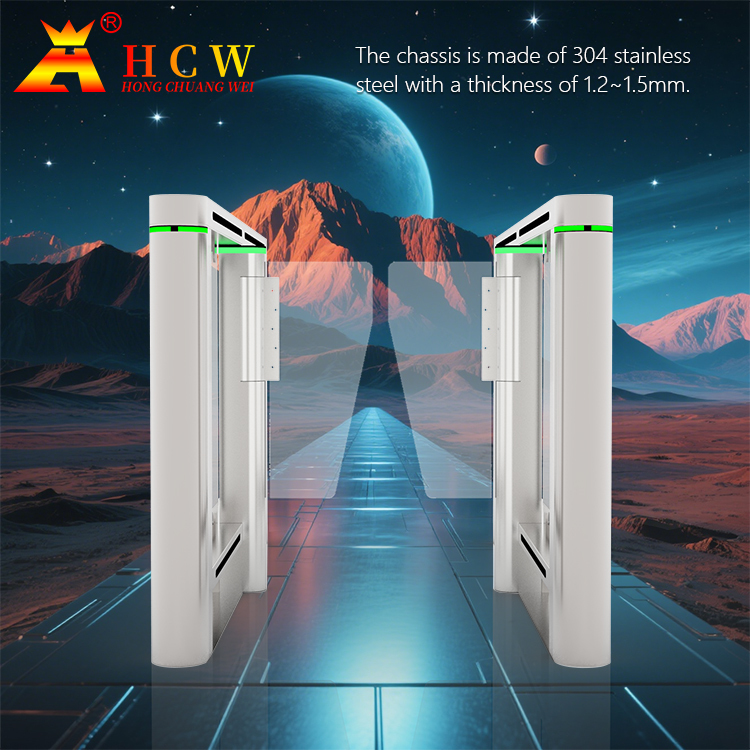

| Channel frame | 1.2 thick 304 stainless steel |
| Package weight | About 55 KG (single side road) |
