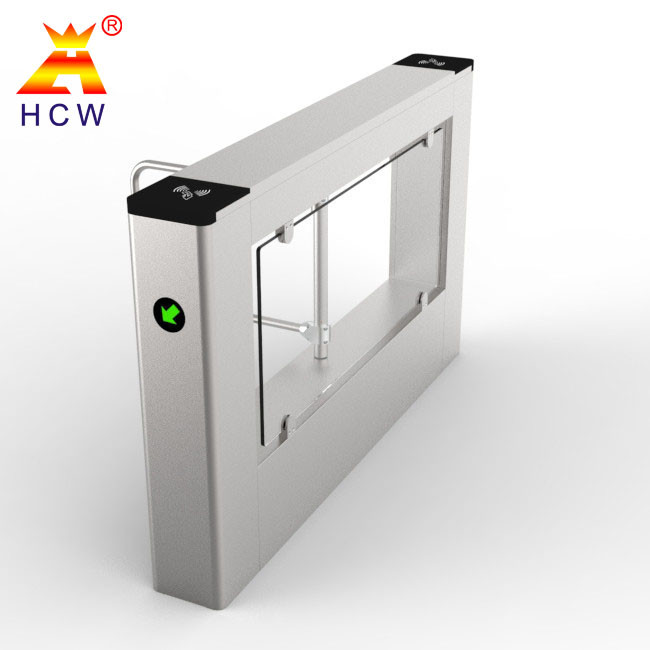

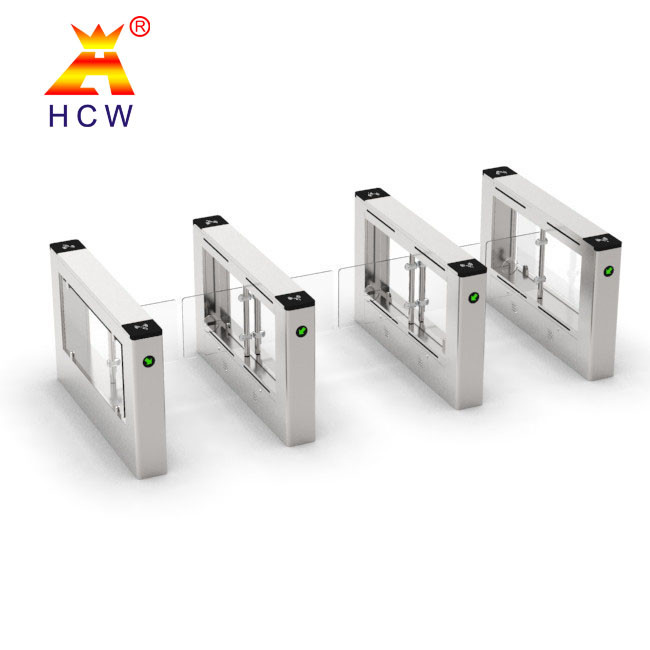

RS232 Optical Swing Speed Gate Turnstile With Face Recognition

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW429
Minimum Order Quantity 2
Price USD 750-800 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Size 1400x185x1020mm Thickness 1.2mm
MCBF 5,000,000 Cycles Input 100V-240V
Motor Servo Motor Rated Power 130W
Input Control Signal Switch Value RS232, 485 Opening Speed 0.4~0.8 Seconds
High Light

Optical Speed Gate Turnstile

,

RS232 Speed Gate Turnstile

,

RS232 optical swing turnstile

Leave a Message
Product Description

High speed anti-crush optical face recognition turnstiles swing barrier



CW429 high-end speed pass anti-collision speed gate,using STC CPU chip, brushless motor, 6 pairs of infrared detection sensors,long life and high stability,efficient anti-tailing,support various IC/ID card readers,barcode readers,ID card reader, etc.,easy to hook up with the access control system.It is widely used in the entrance and exit control of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens, etc.



  • Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in
  • Normal open and normal closed modes can be flexibly selected, and two-way passing can be used. The opening and closing speed of the door wing can also be set according to the flow of people to improve the efficiency of the equipment
  • Anti-following tracking control technology, strictly preventing unauthorized personnel from passing through
  • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time
  • Anti-shock function, when the door opening signal is not received,the swing arm is automatically locked,and the swing arm can be opened with a maximum impact of 120Nm
  • With self-detection,self-diagnosis,and automatic alarm functions;including illegal intrusion alarm,anti-pinch alarm,anti-tailing alarm
  • Remote control management function
  • It can be run online or offline
  • LED passing direction indication, showing passing status
  • When the power is cut off, the swing arm automatically opens,the passage is in a smooth state,and personnel can pass freely to prevent panic
  • Automatic reset function: after opening the door, the system will automatically cancel the user's permission for this pass if the user does not pass within the specified time,and you can set the passing time



Technical parameter
Product model CW429
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity ≤90% no condensation
Motor Brushless Motor
Rated power 40W
Input control signal Switch value, RS232
Running speed 30~40 people/minute
Infrared beam 6 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width Standard 600mm can be customized up to 860mm
Door wing material 10mm plexiglass
Product Size L 1400mm x W 130mm x H 965 mm
Channel frame National standard 1.0mm 304 stainless steel
Package weight About 70 KG (single side road)
