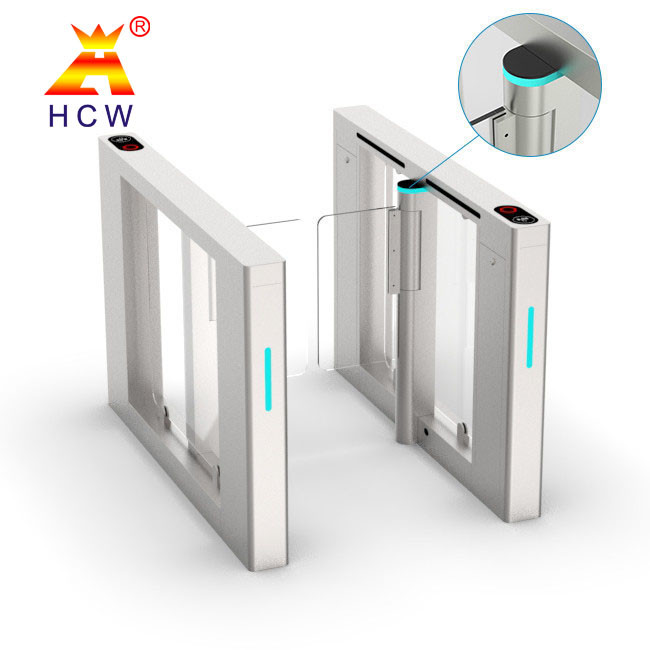

Slim Swing Speed Gate Turnstile Anti Shock ARM Control For Pedestrian

Place of Origin China
Brand Name Hongchuangwei
Certification CE
Model Number CW429
Minimum Order Quantity 2
Price USD 749-799 per piece
Packaging Details wood cases
Delivery Time 6-10 working days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Motor Power 40W Brushless Motor Number Of Passers 30-55 Persons/minute
Infrared Quantity 6 Pairs Input 100V-230V
Lane Width 600mm-900mm Working Environment -25℃ To 70℃
Input Control Signal Switch Value RS232 Opening Speed 0.4~0.7seconds
High Light

Slim Swing Speed Gate Turnstile

,

Anti Shock Speed Gate Turnstile

,

Pedestrian Slim Speed Gate Turnstile

Leave a Message
Product Description

Speed Turnstile Gate Hongpai Manufacturer



Slim Swing Speed Gate is for a variety of pedestrian, vehicle channel carefully developed an upgraded and innovative high-tech Access control product.
It adopts the new industrial-grade circuit and ARM control system and the unique mechanical design, combined with the characteristic of brush-less motor drive technology and accurate limit of technology, those make the product incomparable and revolutionary improved both in performance, lifespan, stability, and cost performance etc.


Outdoor Swing Speed Gate Swing Features:
Adopt Brush-less motor, it has a longer lifespan.
Non polar collision avoidance,it has strong resistance to destruction.
Superego protection, it is the preferred choice for non-motorized vehicle passageway.
Cutting edge new ARM technology, which has better expand-ability and high-cost performance.
Merits for smooth running, speed adjustable and low wear.
Adopt module structure design, it has an easier operation and less maintenance.
Lane size can be set and has the good anti-pinch performance to protect passengers.



  • Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in
  • Normal open and normal closed modes can be flexibly selected, and two-way passing can be used. The opening and closing speed of the door wing can also be set according to the flow of people to improve the efficiency of the equipment
  • Anti-following tracking control technology, strictly preventing unauthorized personnel from passing through
  • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time
  • Anti-shock function, when the door opening signal is not received,the swing arm is automatically locked,and the swing arm can be opened with a maximum impact of 120Nm
  • With self-detection,self-diagnosis,and automatic alarm functions;including illegal intrusion alarm,anti-pinch alarm,anti-tailing alarm
  • Remote control management function
  • It can be run online or offline
  • LED passing direction indication, showing passing status
  • When the power is cut off, the swing arm automatically opens,the passage is in a smooth state,and personnel can pass freely to prevent panic
  • Automatic reset function: after opening the door, the system will automatically cancel the user's permission for this pass if the user does not pass within the specified time,and you can set the passing time

Specification:

1.Power supply:AC220V±10%,50±10Hz
2.Power consumption: static power consumption<30W, dynamic power consumption<70w
3.Motor power: 40W brushless motor
4.Infrared quantity:6 pairs
5.Communication interface: switch value, optional,rs232/485
6.lane width:600mm-900mm
7.open/close time:0.5-0.8s
8.Number of passers:30-50 persons/minute
9.working environment:-25℃ to 70℃
10.Relative humidity,≤90% no condensation
11.Gate opening signal: low level or passive contact signal not less than 100ms
12.Chassis material: standard 304 stainless steel.
13.The appearance of the chassis can be customized according to requirements








Dimension, Material & Surface Treatment:

  • Appearance: Proper modifications can be made according to your project requirements.
  • Material of the cabinet: 304 / 316 grade stainless steel.
  • Stainless steel thickness of the cabinet: Optional range of 1.5~3.0mm.
  • Lane width may be changed accordingly.
  • Material of the swing gate: tempered glass / acrylic/ and color can be tailored.
  • Material of the flap gate:transparent acrylic glass/ soft silicon gel (red/blue color is optional)
  • Surface treatment of the cabinet: brushing/polishing / frosted finish / electroplating / baking finish.

System Integration:

Can be integrated with access control system, ticketing system, time attendance system, visitor system etc.

  • Built-in reader appointed by customers.
  • Integrate with face recognition system, fingerprint identification system, ID/IC card recognition system, passport identification system, QR code system, etc.

Direction Indicator:

  • The installation position of direction indicator can be adjusted.
  • The pattern of direction indicator can be customized.

Additional Functions:

  • Built-in or external counter
  • Equipped with TCP / IP communication
  • Audible and visual alarm function



FAQ

1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.


2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.

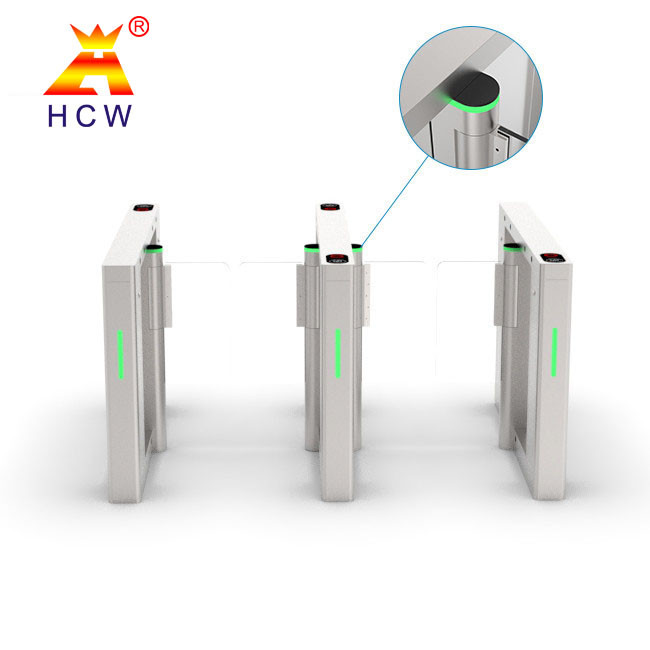

Slim Swing Speed Gate Turnstile Anti Shock ARM Control For Pedestrian 0Slim Swing Speed Gate Turnstile Anti Shock ARM Control For Pedestrian 1


3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.


4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
