Anti pinch Access Control Speed Gates 0.5s High Speed Glass Security Turnstiles

Place of Origin China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW422
Minimum Order Quantity 2
Price USD 749-799 per piece
Packaging Details wood cases
Delivery Time 7-10 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material Stainless Steel Product Size L1400*W210*H1000mm(optional)
Entrance Width Optional 500-950mm Open/close Time 0.5-0.8s
Rated Power 130W .Relative Humidity ≤90% No Condensation
Motor Power 40W
High Light

Anti Pinch Access Control Speed Gates


0.5s Access Control Speed Gates


High Speed Glass Security Turnstiles

Leave a Message
Product Description

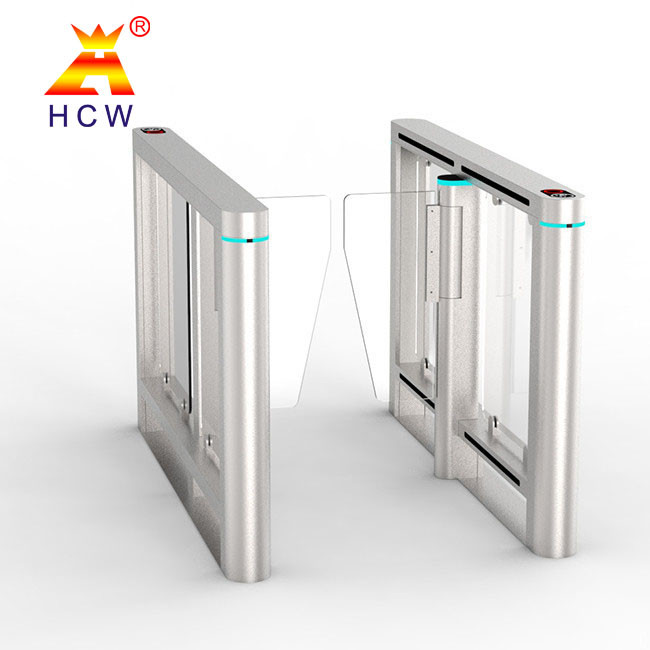

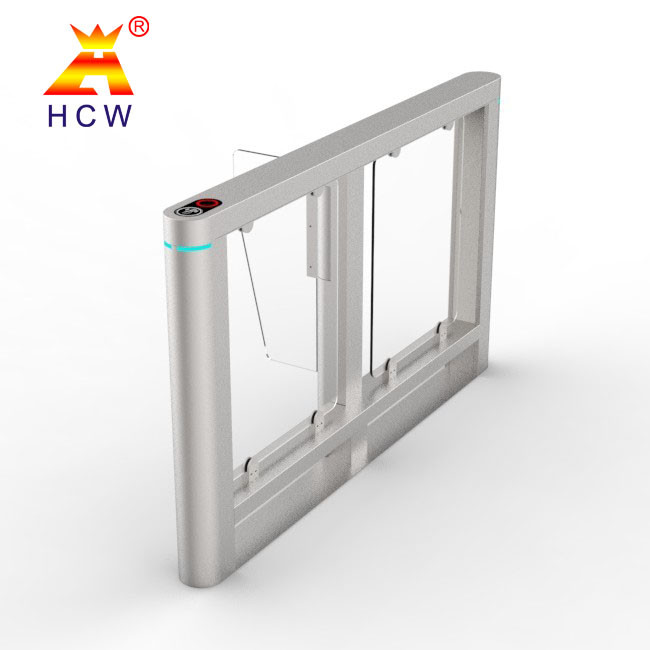

0.5s turnstile security gate Swing Sliding High Speed Gate Turnstile
This is a Fast anti-collision swing turnstile with STC CPU chip brushless motor 6 pairs of infrared detection sensors, long-life and high stability,
high efficiency and anti-tailing, support various IC/ID card readers, barcode readers,ID card reader, easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens, School , hotel etc.

  • Only authorized personnel can pass,and when unauthorized personnel break in, it will emit sound and light buzzer alarm
  • Flexible selection of open and closed modes,two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
  • Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
  • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time (additional horn is required)
  • Anti-shock function, the electromagnetic lock will automatically lock the swing arm when it does not receive the door opening signal. When the swing arm is hit, the swing arm will automatically open to the set angle. The electromagnetic lock will automatically lock, with a maximum impact of 120Nm.
  • With self-detection, self-diagnosis, and automatic alarm functions; including illegal intrusion alarm, anti-pinch alarm, anti-tailing buzzer alarm (additional horn required)
  • Remote control management function
  • Can be run online or offline
  • LED traffic direction indication, display traffic status
  • When the power is cut off, the swing arm automatically opens the cabinet, the passage is in a smooth state, and personnel can pass freely to prevent panic


Technical parameter
Product modelCW422
Power supplyAC220V±10%,50HZ±10% HZ
Working environment-25℃-70℃
Relative humidity≤90%
Motorbrushless motor
Motor power40W
Communication interfaceswitch value.RS232
Number of passers30~40/min
Infrared quantity8pairs
Working life2 million times
Normal service life3 million times
Channel width size600mm~900mm
Swing material10mm Plexiglass
Product sizeL 1600mm x W 120mm x H 965 mm
Chassis materialNational standard 1.2~1.5mm 304 stainless steel
Packing weightAbout 70 KG(single channel)
Application environmentIndoor or canopy
Configuration instructionsWithout voice and battery

1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate
according to your actual site, and produce different sizes, software and functions.
2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,
One-year warranty and lifetime technical support.
3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.
4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the
products and packages.
