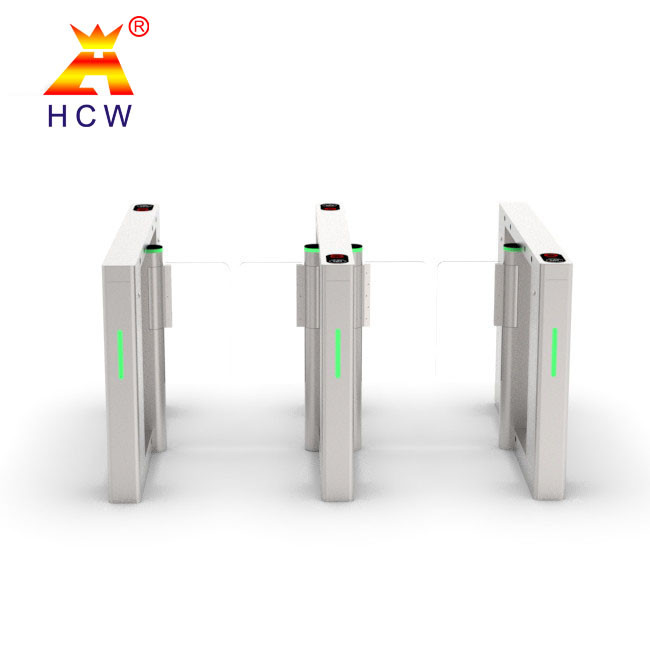

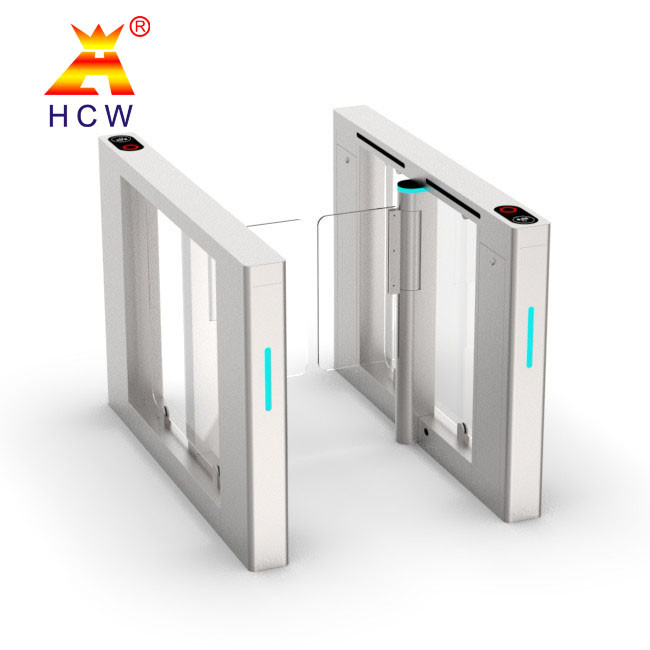

650mm Lane Width Swing Security Automatic Turnstile Gate For PWD Access
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Swing Turnstile | Lane Width | 600~900mm |
|---|---|---|---|
| Passing Speed | < 35 Person/min | Access Type | Pedestrian/ADA/Trolley |
| Protection Class | IP54 | IP Protection Level | 42 |
| Infrared Logarithm | 6 Pairs | Communication Distance | Within 40m |
| Highlight | PWD Automatic Turnstile Gate,650mm Lane Automatic Turnstile Gate,650mm Lane swing security gates |
||
Product Description
Automatic Disabled Turnstile for PWD Access Swing Barrier Gate
Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in
Flexible selection of normally open and normally closed modes, two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time.
1. The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
2. In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
3. The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
4. Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
5. The bicycle delay function: prevent the gate from hitting the bicycle;
| Technical parameter | |
| Product number | CW422 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor | 40W brushless DC |
| Rated power | 70W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30~40 people/minute |
| Infrared beam | 6 pairs |
| Number of trouble-free runs | 3 million times |
| Average life span | 5 million times |
| Channel width | 600~900mm |
| Swing arm material | 10mm Acrylic |
| Product Size | 1600*120*965mm(single movement) |

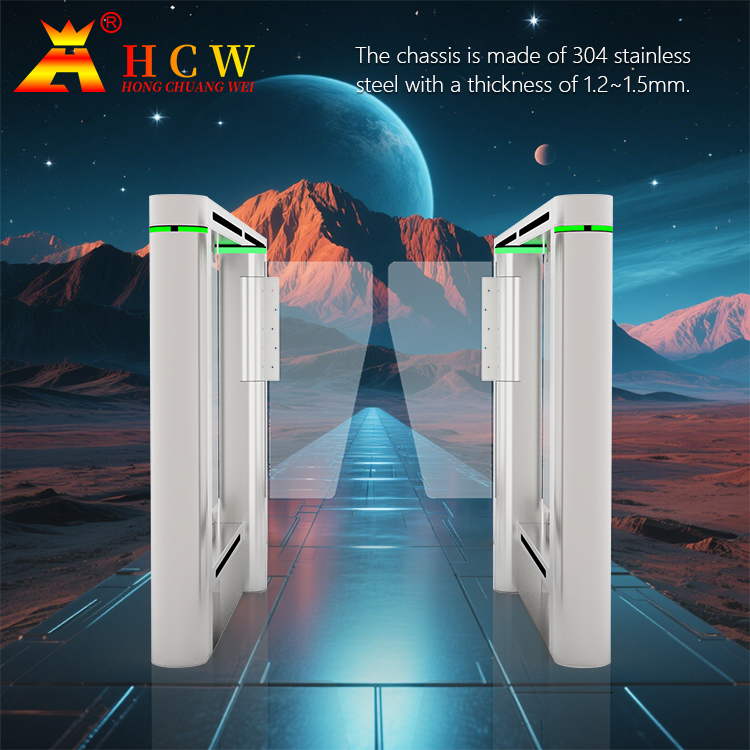

| Channel frame | 1.2 thick 304 stainless steel |
| Package weight | About 55 KG (single side road) |
