RFID Card Reader Automatic Turnstile Gate Pedestrian Access Control OEM

  • RFID Card Reader Automatic Turnstile Gate Pedestrian Access Control OEM
  • RFID Card Reader Automatic Turnstile Gate Pedestrian Access Control OEM
  • RFID Card Reader Automatic Turnstile Gate Pedestrian Access Control OEM
  • RFID Card Reader Automatic Turnstile Gate Pedestrian Access Control OEM
Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW427
Minimum Order Quantity 2
Price Negotiable
Packaging Details wood cases
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC220V±10%, 50Hz Service OEM&ODM Service
Package Wooden Case Power Consumption 32w
Input 12v Dry Contact IP Protection Level 42
Infrared Logarithm 8 Pairs Communication Distance Within 400m
Highlight

RFID Automatic Turnstile Gate

,

OEM Automatic Turnstile Gate

,

OEM pedestrian gate access control
Leave a Message
Product Description

Automatic Safety RFID Card Reader Access Control Pedestrian Passage Servo Speed Gate


The Shenzhen headquarters was established on July 1, 2006 and is located in Zhangge Community,Guanlan Street,Longhua District, Shenzhen.The headquarters factory covers an area of about 2000 square meters.With the continuous expansion and expansion of the

domestic and overseas sales market,the company invested 1.55 million USD in 2018 to establish a full-asset industrial park in the Meizhou Comprehensive Bonded Zone, and has a self-built Meizhou Industrial Park with its own property rights.The park covers an area of about 20,000 square meters and a modern industrial plant with a building area of more than 30,000 square meters.


「Millisecond-level response, a new experience of seamless passage」

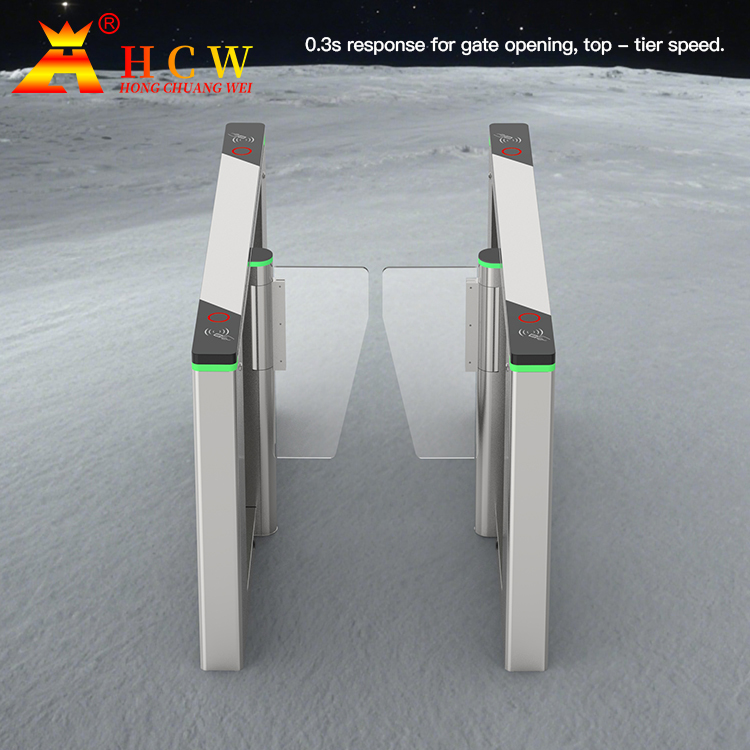

Driven by a high-precision servo motor, it opens and closes in 0.3 seconds, ensuring smooth flow even during peak hours. Equipped with intelligent sensing technology, it allows passage with face recognition or card swiping without stopping, increasing efficiency by 300%!


「Anti-tailgating black technology, no safety dead ends」
Dual identification anti-pinch system with infrared matrix and pressure sensing, accurately identifying illegal intrusions. It automatically alarms when the tailgating distance is less than 15cm, guarding every safety detail.


「Ultra-long standby, 7×24 hours stable operation」
Industrial-grade low-power design with standby power ＜15W, tested to run 5 million times without failure, and remains reliable even in extreme environments (-25℃~70℃).

「Silent elegance, library-level quietness」

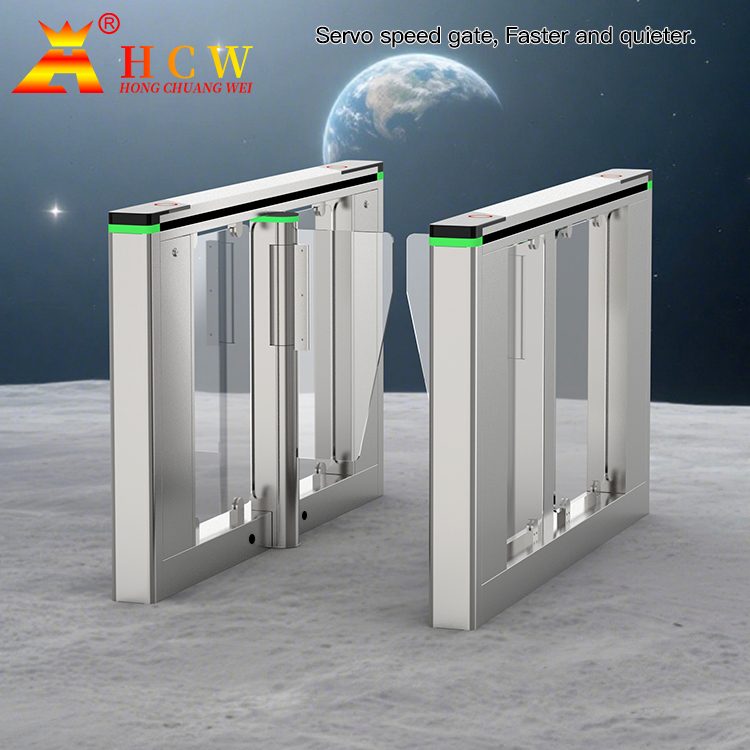

The servo motor is fast and quiet, with an operating noise of ＜35dB, making it the first choice for quiet places such as hospitals and museums.

「Barrier-free design, warming every need」
600~900mm ultra-wide passage + voice prompts, friendly for wheelchairs and strollers to pass through.

「In-depth customization, full-link empowerment from demand to finished product」
Support all-round customization of appearance (material/color/LOGO), functions (recognition method/passage logic), and dimensions (passage width/height).


Provide one-stop service from 3D modeling → prototype testing → mass production and delivery, with rapid prototyping in 15 days.

Technical parameter
Product number CW427
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Motor type Servo motor
Rated power 130W
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 40~50 people/minute
Infrared beam 8 pairs
Number of trouble-free runs 4 million times
Average life span 5 million times
Channel width 600~900mm
Swing arm material 10mm acrylic door panel
Product Size 1600*120*980mm

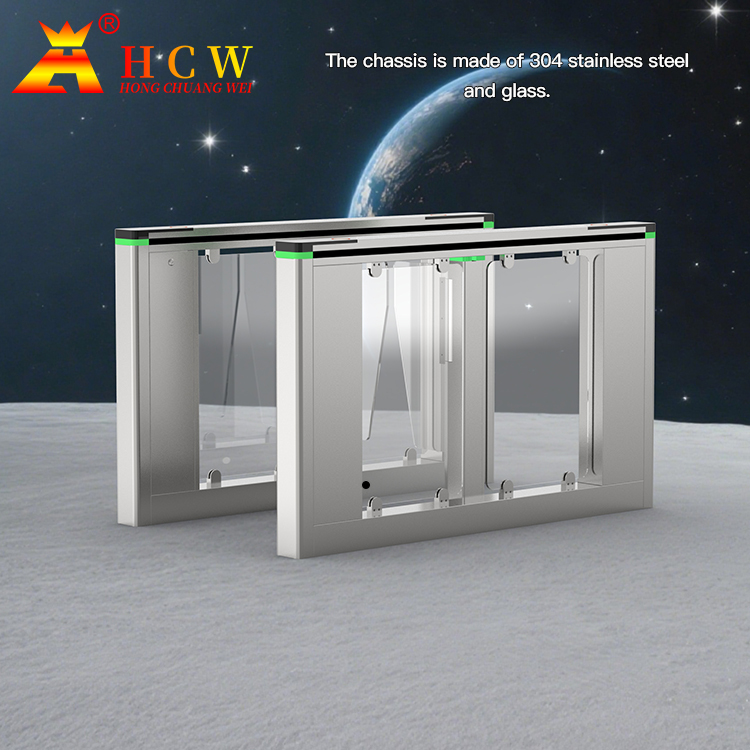

Channel frame 1.5 thick 304 stainless steel
Package weight About 65 KG (single side road)
