Full-Automatic Pedestrian Channel Fast Swing Gate with Face Recognition Support (OEM/ODM Available)
0.5s Automatic Turnstile Gate
,40W Automatic Turnstile Gate
,0.5s internal swing barrier
Adopting a high-performance brushless DC motor, it achieves second-level response, significantly improving the efficiency of pedestrian flow and avoiding congestion.

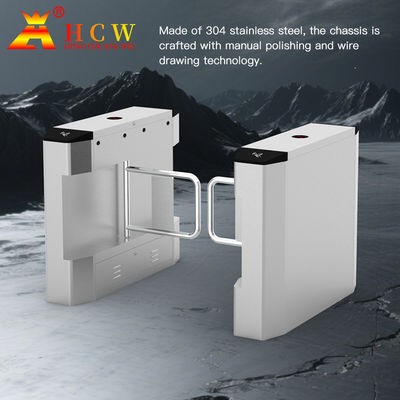

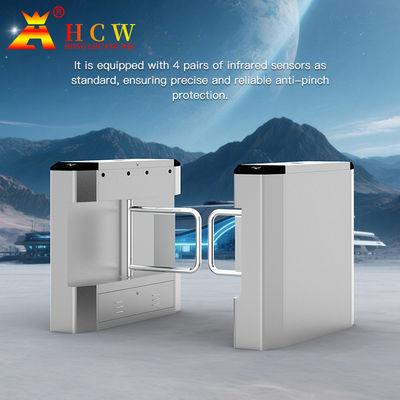

Made of 304 stainless steel, it is rust-proof and corrosion-resistant, with excellent load-bearing and impact-resistant performance; the infrared induction anti-pinch design ensures the safety of passage.

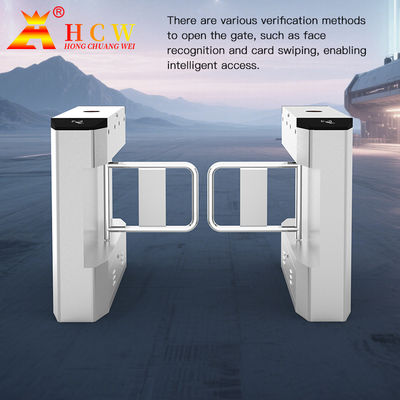

Supports multiple verification methods such as card swiping, face recognition, and QR code scanning, and seamlessly connects to smart building/mall systems.

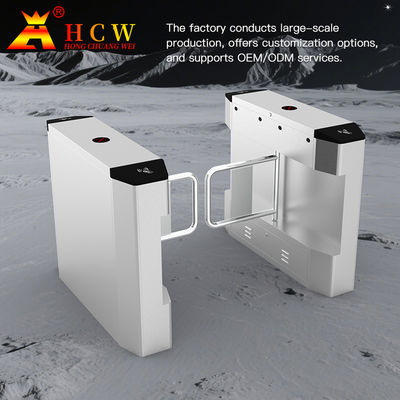

With a modular design, it is easy to install and widely applicable to high-frequency scenarios such as subways, shopping malls, and airports.
The streamlined appearance combined with stainless steel texture, featuring a modern and minimalist style, perfectly integrates into high-end venues, enhancing the overall environment grade.
The precision electromechanical structure has undergone 100,000 fatigue tests, ensuring long trouble-free operation time and reducing maintenance costs.
An optional passenger flow statistics system is available to monitor the number of people in real-time, providing data support for operational decisions.
Shopping Mall Entrances & Exits | Subway Ticket Checking Channels | Office Building Access Control | Scenic Spot Ticket Checking Gates
| Technical parameter | |
| Product number | CW426 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Rated power | 20W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30~40 people/minute |
| Infrared beam | 4 pairs |
| Number of trouble-free runs | 2 million times |
| Average life span | 3 million times |
| Channel width | 600~1400mm |
| Swing arm material | φ35*304 stainless steel tube |
| Product Size | 1400*280*990mm |
| Channel frame | 1.0 thick 304 stainless steel |
| Package weight | About 55 KG (single side road) |
