304 Stainless Steel Pedestrian Swing Gate: 600~1400mm Passage Width Customizable
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Chassis Material | 304 Stainless Steel | Thickness Of Steel | 1.0mm |
|---|---|---|---|
| Passing Speed | < 35 Person/min | Communication | RS485 Electrical Standard |
| Input | 12v Dry Contact | IP Protection Level | 42 |
| Infrared Logarithm | 4 Pairs | Communication Distance | Within 400m |
| Highlight | Anti Clipping swing turnstile gate,900mm Channel swing turnstile gate,600mm Channel waist high turnstile |
||
Product Description

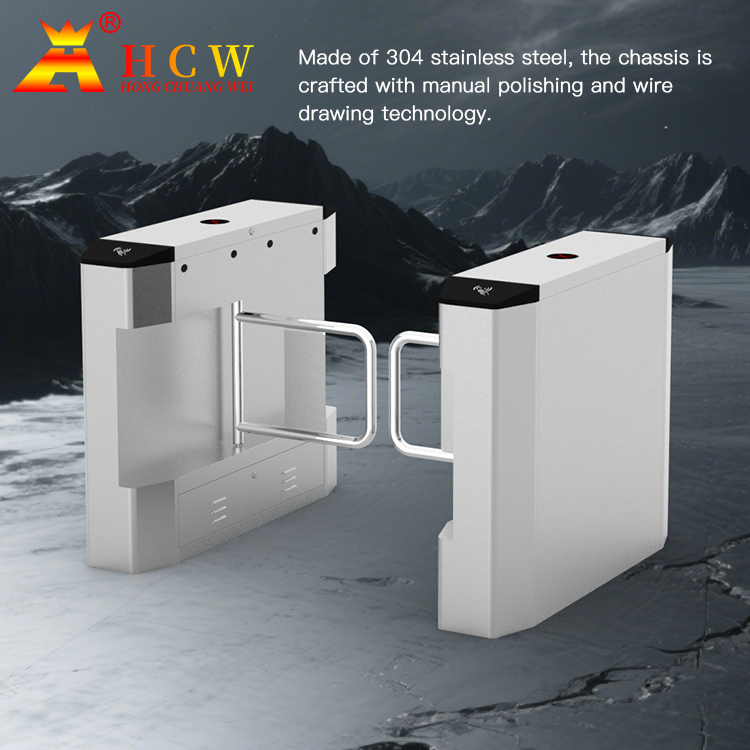

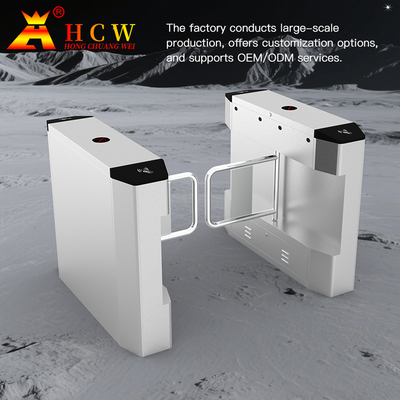

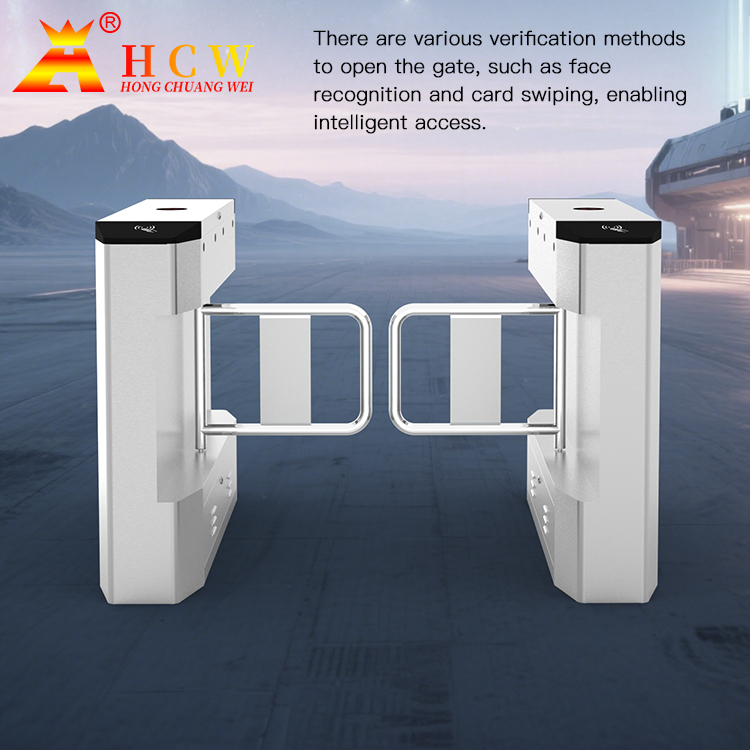

Stainless Steel Automatic Double Mechanism Infrared Anti-Clipping Flap Barrier
Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in
Flexible selection of normally open and normally closed modes, two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time.
1. With fault self-check and alarm function, convenient for user maintenance and use
2. Through the built-in small press disk on the main control board, the operation state of the programmable equipment can be realized
3. The mechanical structure of anti-clamping, anti-collision function in the swing arm reset in the process of obstruction, the motor automatically stop working within the specified time, reset again after the default delay
4. Anti-collision function, in the city without receiving the opening signal, the system will automatically cancel the user's access authority
5. Normally open or normally closed can be adjusted to meet the requirements of different sites
6. The swing arm will open automatically when the power is off, and close automatically when the power is on, meeting the fire protection requirements.
7. Single/double walkway--controlled in one direction or both.
| Technical parameter | |
| Product number | CW426 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Rated power | 20W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30~40 people/minute |

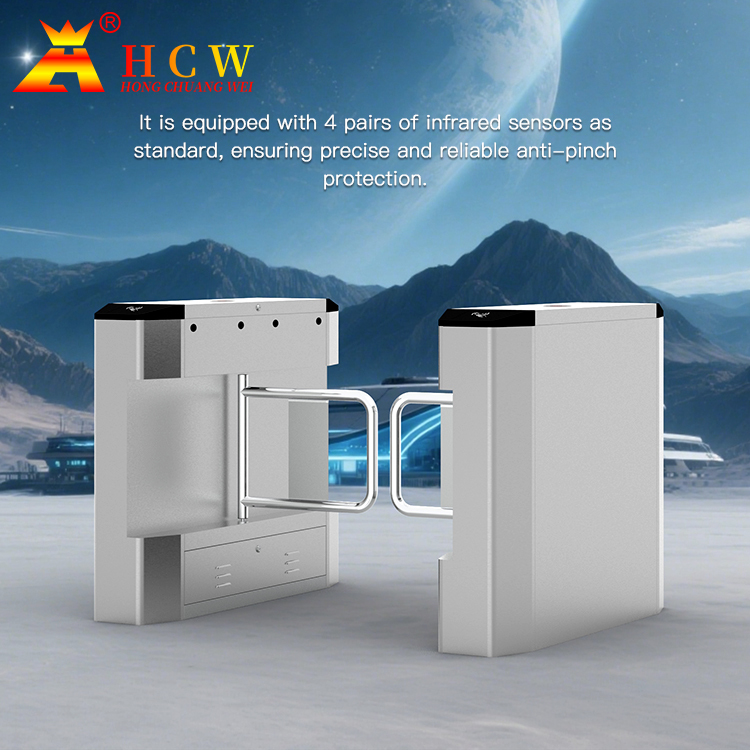

| Infrared beam | 4 pairs |
| Number of trouble-free runs | 2 million times |
| Average life span | 3 million times |
| Channel width | 600~1400mm |
| Swing arm material | φ35*304 stainless steel tube |
| Product Size | 1400*280*990mm |
| Channel frame | 1.0 thick 304 stainless steel |
| Package weight | About 55 KG (single side road) |
