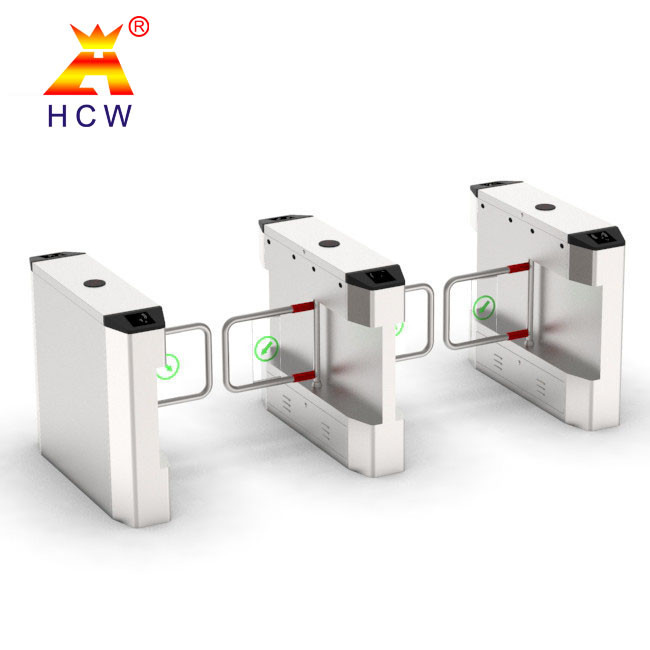

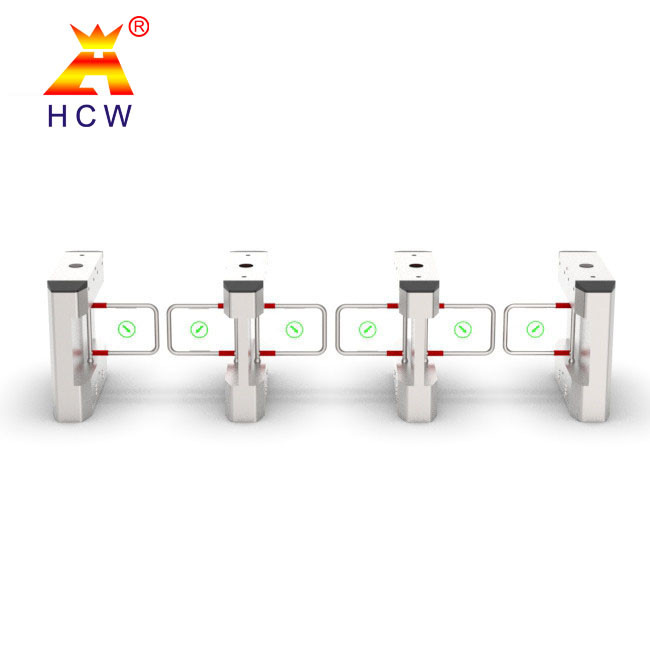

waist high Anti Clipping Swing Turnstile Gate 600mm-900mm Channel width

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW422
Minimum Order Quantity 10 piece
Price USD550-600 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Opening Pattern Automatic Turnstile Thickness Of Steel 2.0mm 1.5mm
Passing Speed < 35 Person/min Communication RS485 Electrical Standard
Input 12v Dry Contact IP Protection Level 42
Infrared Logarithm 6 Pairs Communication Distance Within 400m
High Light

Anti Clipping swing turnstile gate


900mm Channel swing turnstile gate


600mm Channel waist high turnstile

Leave a Message
Product Description

Stainless Steel Automatic Double Mechanism Infrared Anti-Clipping Flap Barrier


Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in
Flexible selection of normally open and normally closed modes, two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time.

1. With fault self-check and alarm function, convenient for user maintenance and use
2. Through the built-in small press disk on the main control board, the operation state of the programmable equipment can be realized
3. The mechanical structure of anti-clamping, anti-collision function in the swing arm reset in the process of obstruction, the motor automatically stop working within the specified time, reset again after the default delay
4. Anti-collision function, in the city without receiving the opening signal, the system will automatically cancel the user's access authority
5. Normally open or normally closed can be adjusted to meet the requirements of different sites
6. The swing arm will open automatically when the power is off, and close automatically when the power is on, meeting the fire protection requirements.
7. Single/double walkway--controlled in one direction or both.


Channel width 600mm-900mm
Outer length of swing arm chassis ≤430mm
Opening speed 0.5s
Number of passers normally closed 30 people/min, normally open 40 people/min
Working environment indoor and outdoor (outdoor with rain shed) -40°C~80°C
Relative humidity ≤95%, no condensation
Gate opening signal low frequency or passive node signal of no less than 100ms
Case material 304 stainless steel
Thickness 1.2mm
Drive current >10mA
