HCW Biometric Swing Turnstile Speed Gate Custom Access Control Security Systems With Brushless
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | HCW | Product Model | CW495 |
|---|---|---|---|
| Product Material | 304 Stainless Steel | Product Size | 1400*130*990mm |
| Warranty | 1 Year | Certificate | ISO 9001/CE |
| Operating Temperature | -25℃~70℃ | Opening And Closing Time | 1s |
| Motor | 40W DC Brushless | Infrared Beam | 6 Pairs |
| Normal Service Life | 5 Million Cycles | Channel Width | 600-1000mm |
| Highlight | biometric swing turnstile access control,speed gate turnstile with brushless motor,custom security systems speed gate |
||
Product Description
HCW Biometric Swing Turnstile Speed Gate Custom Access Control Security Systems With Brushless
Product Overview
The HCW CW495 is a high-performance subway speed gate turnstile designed for demanding access control environments, featuring a quick swing barrier turnstile mechanism that delivers rapid 1-second operation for efficient pedestrian flow.
Key Specifications
| Attribute | Value |
|---|---|
| Brand name | HCW |
| Product model | CW495 |
| Product material | 304 stainless steel |
| Product size | 1400*130*990mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |
| Operating Temperature | -25℃~70℃ |
| Motor | 40W DC brushless |
| Opening and closing time | 1s |
| Infrared beam | 6 pairs |
| Normal service life | 5 million cycles |
| Running speed | 30~40 people/minute |
| Channel width | 600-1000mm |
Key Advantages
- Ultra-Fast Access Control: Industry-leading 1-second response time with precision 40W DC brushless motor, processing up to 40 persons per minute.
- Advanced Biometric Integration: Ready integration with face recognition technology for touchless access solutions.
- Intelligent Pedestrian Management: Smart infrared detection (6 pairs) automatically adjusts to human flow patterns.
- Customizable Operation Modes: Adjustable cycling speeds (1-3s) with settings accessible through RS485/RS232 interfaces.
- Energy-Efficient Performance: Consumes minimal power while delivering robust performance across extreme temperatures.
Applications
- Mass Transit Systems: Ideal for subway stations and airports, processing 40 persons/minute with 1-second response time.
- Corporate Security: Adapts to different security levels in office buildings with adjustable speed settings.
- Smart City Infrastructure: Perfect for stadiums and municipal buildings with smart city integration capabilities.

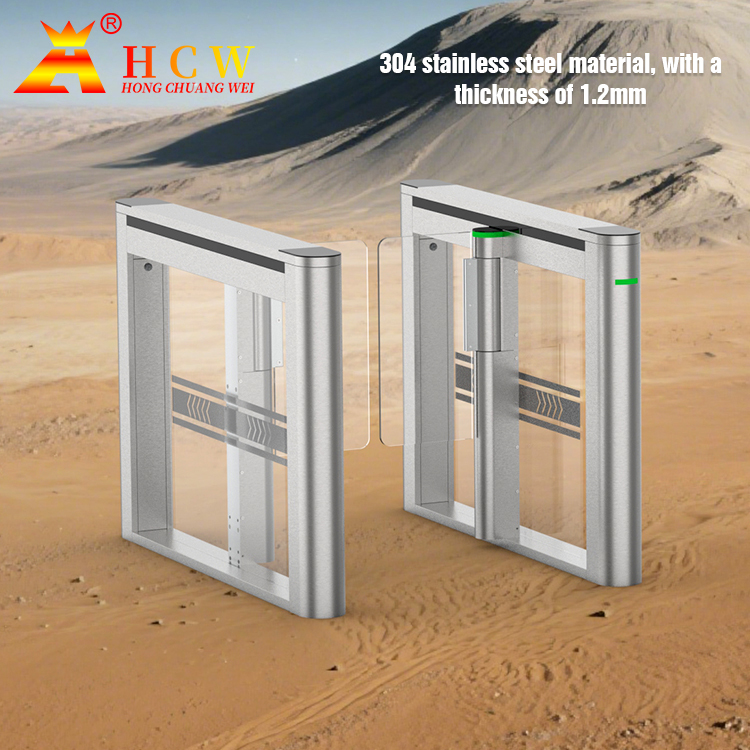

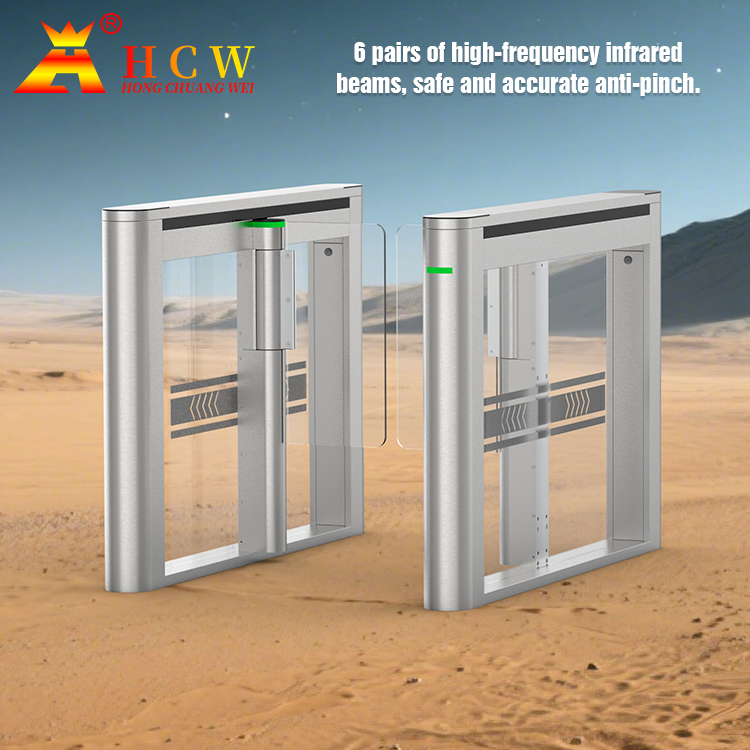

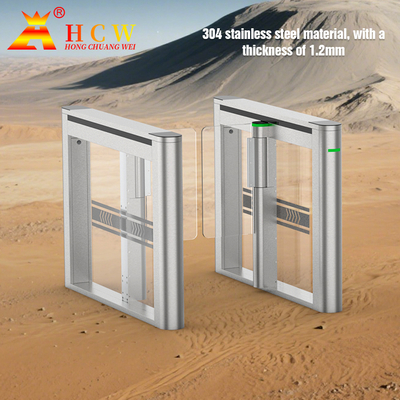

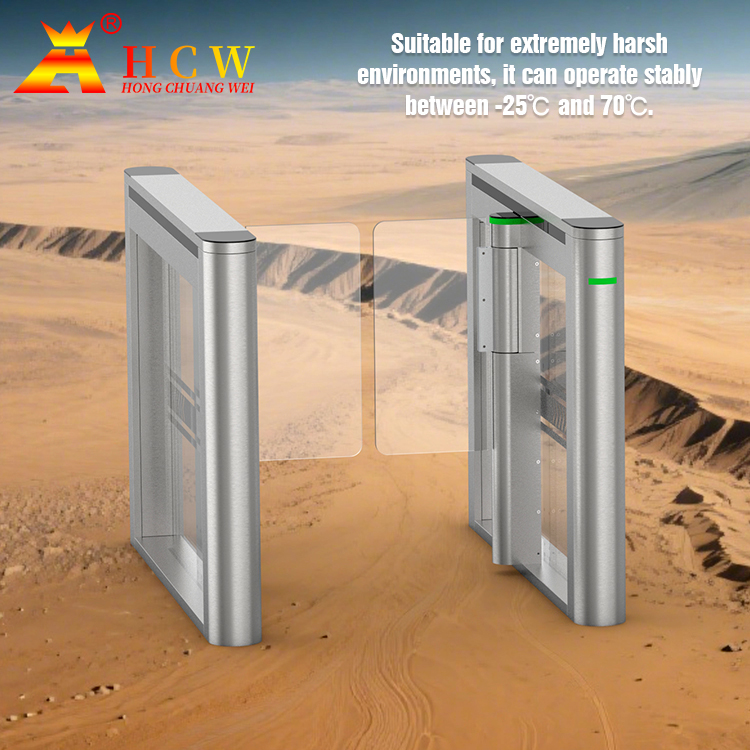

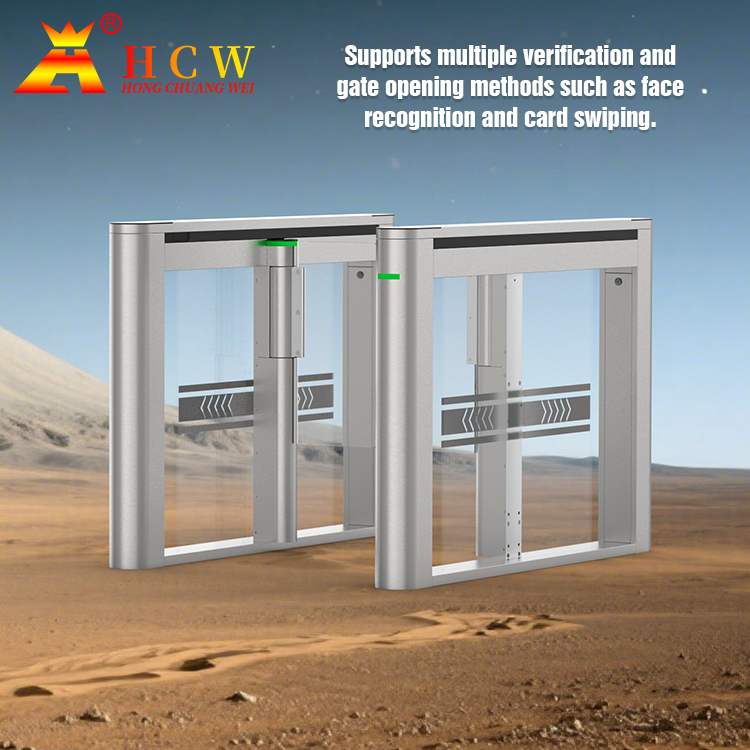

Product Images
