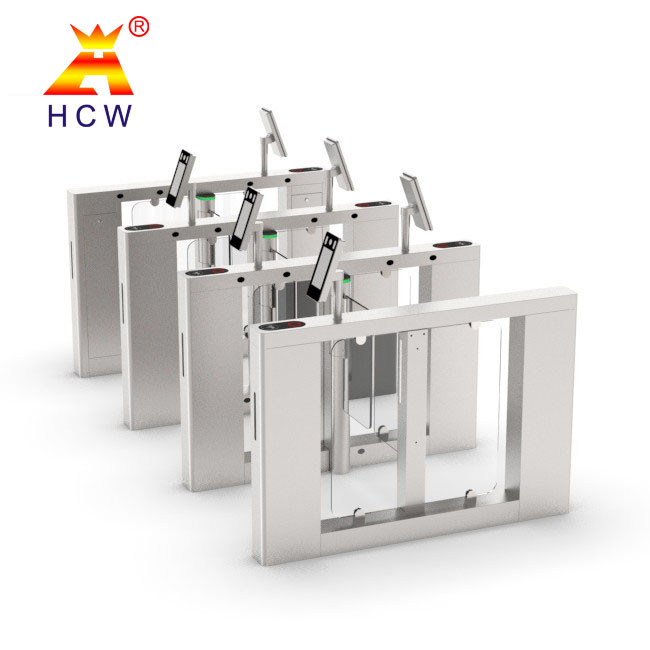

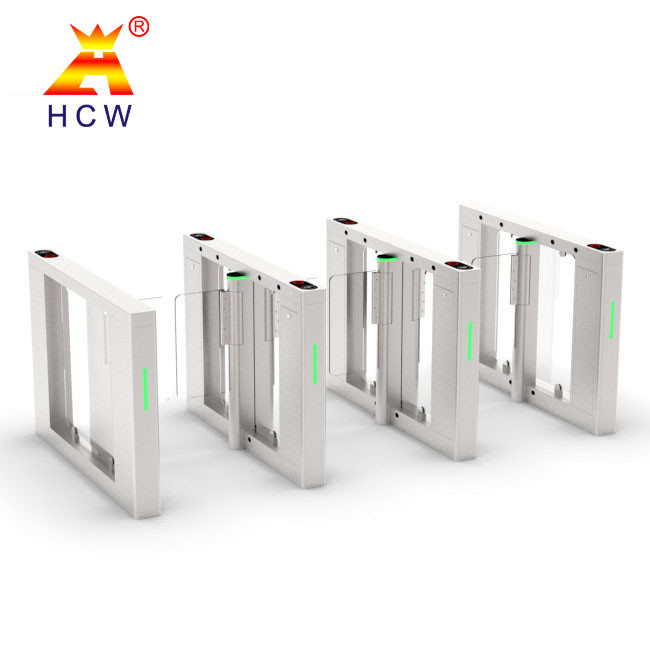

SUS304 Automatic High Speed Glass Turnstile Doors Pedestrian Access Control 60HZ

  • SUS304 Automatic High Speed Glass Turnstile Doors Pedestrian Access Control 60HZ
  • SUS304 Automatic High Speed Glass Turnstile Doors Pedestrian Access Control 60HZ
  • SUS304 Automatic High Speed Glass Turnstile Doors Pedestrian Access Control 60HZ
  • SUS304 Automatic High Speed Glass Turnstile Doors Pedestrian Access Control 60HZ
Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW429
Minimum Order Quantity 1piece
Price Negotiable
Packaging Details wood cases
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Arm Length 280mm(norm) Material SUS304 Thickness(1.5mm)
Input Voltage AC110-220±10%,50HZ60HZ Motor's Power 24V
Rated Power 130W Input Control Signal Switch Value RS232, 485
Opening Speed 0.4~0.8 Seconds
Highlight

SUS304 glass turnstile doors

,

60HZ glass turnstile doors

,

SUS304 access control gate
Leave a Message
Product Description

"Fast Pass·As Solid As a Rock" — DC Brushless 304 Stainless Steel Pedestrian Swing Gate


Thickened 304 Stainless Steel Body


The entire body is forged from 304 stainless steel, featuring corrosion resistance, high and low temperature resistance, riot and rust prevention. It can be used outdoors for 10 years without fading and adapts to extreme environments (-25℃~70℃).


The surface is treated with a wire-drawing process, which balances aesthetics and durability. It has passed the IP42 protection certification, being impervious to wind, rain and sand.


DC Brushless Motor Drive


Equipped with a high-precision brushless motor, it has an ultra-fast response of 0.3 seconds. The service life of switching gates exceeds 5 million times, which is 40% more energy-efficient than traditional motors, and runs quietly (＜45dB).


The carbon brush wear-free design completely solves the maintenance pain points of traditional motors and reduces long-term use costs.


Intelligent Control System


It supports multi-modal verification such as IC card, face recognition and QR code, and seamlessly connects to smart building/security platforms.


Infrared double anti-pinch + torque adaptive adjustment, automatically rebounds when encountering obstacles, and its safety meets international standards.


【Full Coverage of Application Scenarios】


High-end security places: airports, high-speed railway stations, government affairs centers, strictly controlling personnel access permissions.


Commercial complexes: office buildings, shopping malls, scenic spots, realizing rapid diversion of peak passenger flow.


Smart communities: community access control, property lobbies, preventing tailgating and illegal entry.


Industrial scenarios: factories, warehouses, linking with attendance systems to achieve precise management of employees.


Technical parameter
Product number CW429
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Motor type Brushless DC
Rated power 40W
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30-40 people/minute
Infrared beam 6 pairs
Number of trouble-free runs 4 million times
Average life span 5 million times
Channel width 600~860mm
Swing arm material 10mm acrylic door panel
Product Size 1400*130*965mm
Channel frame 1.0 thick 304 stainless steel
Package weight About 70 KG (single side road)
