Sliding Speed Gate Turnstile 500-950mm Entrance Width Speedlane Swing Turnstile

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW422
Minimum Order Quantity 10 piece
Price USD 750-800 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Housing Material 304 Stainless Steel Housing Size L1400*W210*H1000mm(optional)
Entrance Width 500-950mm(optional) Housing Thickness 1.5mm
Rated Power 130W Input Control Signal Switch Value RS232, 485
Opening Speed 0.4~0.8 Seconds
High Light

Sliding Speed Gate Turnstile


950mm Entrance Speed Gate Turnstile


500mm Entrance speedlane swing turnstile

Leave a Message
Product Description

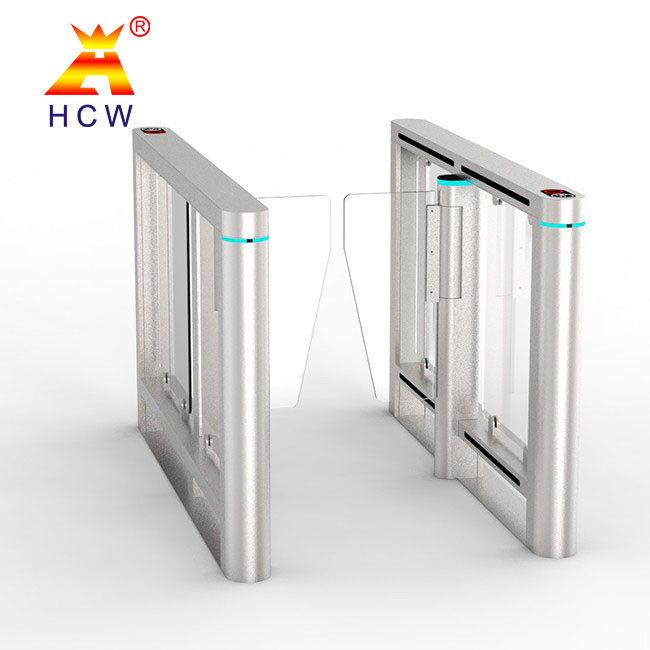

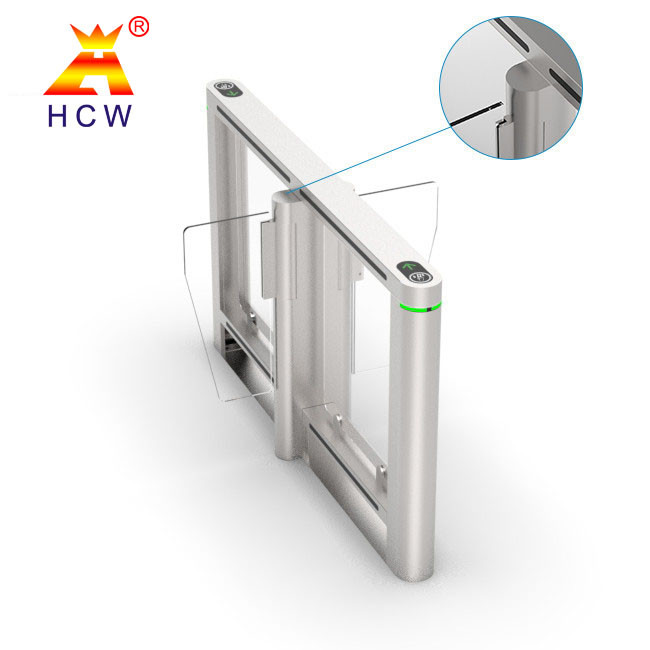

Sliding gate design access control system face machine speed gate


CW422 Fast anti-collision swing turnstile,use STC CPU chip brushless motor 6 pairs of infrared detection sensors, long life and high stability,

high efficiency and anti-tailing,support various IC/ID card readers, barcode readers,ID card reader, etc.,easy to hook up with the access control system.It is widely used in the entrance and exit control of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens, etc.


  • Only authorized personnel can pass,and when unauthorized personnel break in, it will emit sound and light buzzer alarm
  • Flexible selection of open and closed modes,two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
  • Anti-tailing tracking control technology to strictly prevent unauthorized personnel from passing through
  • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time (additional horn is required)
  • Anti-shock function, the electromagnetic lock will automatically lock the swing arm when it does not receive the door opening signal. When the swing arm is hit, the swing arm will automatically open to the set angle. The electromagnetic lock will automatically lock, with a maximum impact of 120Nm.
  • With self-detection, self-diagnosis, and automatic alarm functions; including illegal intrusion alarm, anti-pinch alarm, anti-tailing buzzer alarm (additional horn required)
  • Remote control management function
  • Can be run online or offline
  • LED traffic direction indication, display traffic status
  • When the power is cut off, the swing arm automatically opens the cabinet, the passage is in a smooth state, and personnel can pass freely to prevent panic


Technical parameter
Product model CW422
Power supply AC220V±10%,50HZ±10% HZ
Working environment -25℃-70℃
Relative humidity ≤90%
Motor brushless motor
Motor power 40W
Communication interface switch value.RS232
Number of passers 30~40/min
Infrared quantity 8pairs
Working life 2 million times
Normal service life 3 million times
Channel width size 600mm~900mm
Swing material 10mm Plexiglass
Product size L 1600mm x W 120mm x H 965 mm
Chassis material National standard 1.2~1.5mm 304 stainless steel
Packing weight About 70 KG(single channel)
Application environment Indoor or canopy
Configuration instructions Without voice and battery
