HCW Speed Gate Turnstile with 1-Second Operation 600-1000mm Channel Width and 5 Million Cycle Lifespan
| Place of Origin | China |
|---|---|
| Brand Name | HCW |
| Certification | CE/ISO 9001 |
| Model Number | CW495 |
| Minimum Order Quantity | 2 pieces |
| Price | Negotiable |
| Packaging Details | Wooden case |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | HCW | Product Model | CW495 |
|---|---|---|---|
| Product Material | 304 Stainless Steel | Product Size | 1400*130*990mm |
| Warranty | 1 Year | Certificate | ISO 9001/CE |
| Operating Temperature | -25℃~70℃ | Opening And Closing Time | 1s |
| Motor | 40W DC Brushless | Infrared Beam | 6 Pairs |
| Normal Service Life | 5 Million Cycles | Channel Width | 600-1000mm |
| Highlight | 1-Second Operation Speed Gate Turnstile,600-1000mm Channel Width Swing Barrier Turnstile,5 Million Cycle Lifespan Biometric Turnstile |
||
Product Description
HCW Speed Gate Turnstile - Biometric Swing Gate Access Control System
The HCW CW495 is a high-performance subway speed gate turnstile designed for demanding access control environments, featuring a quick swing barrier turnstile mechanism that delivers rapid 1-second operation for efficient pedestrian flow.
Product Introduction

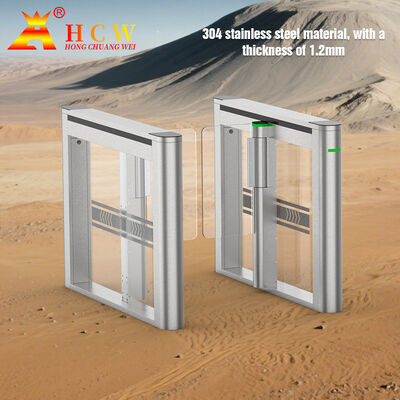

Constructed with premium 304 stainless steel, this durable turnstile accommodates 600-1000mm channel widths while processing 30-40 people per minute - making it ideal for mass transit hubs, corporate campuses, and secure facilities. The system features advanced turnstile gate communication interface RS485/RS232 for seamless integration with existing security infrastructure. Its 40W DC brushless motor ensures quiet, maintenance-free operation while achieving an exceptional 5 million cycle lifespan. Six pairs of anti-clipping swing turnstile gate infrared sensors provide reliable tailgating prevention. Certified to ISO 9001/CE standards and operating in extreme -25℃~70℃ temperatures, the CW495 offers outstanding value with competitive pricing.
Specifications
| Brand Name | HCW |
|---|---|
| Product Model | CW495 |
| Product Material | 304 stainless steel |

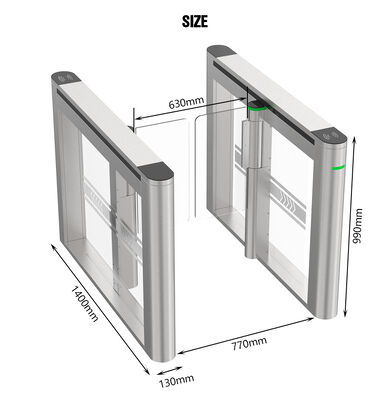

| Product Size | 1400*130*990mm |
| Warranty | 1 Year |
| Certificate | ISO 9001/CE |

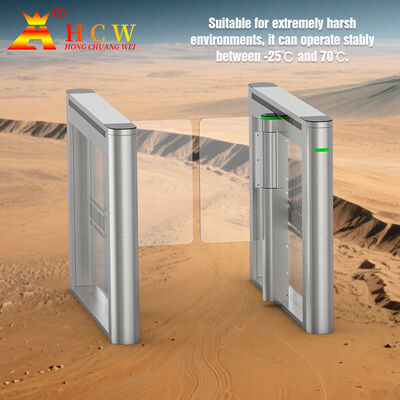

| Operating Temperature | -25℃~70℃ |

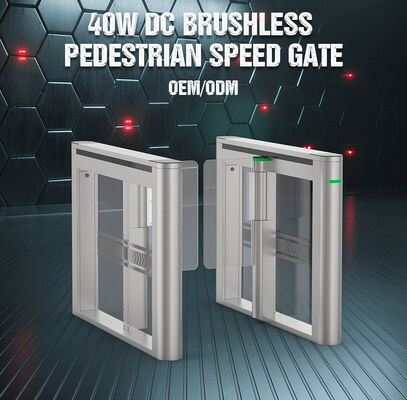

| Motor | 40W DC brushless |
| Opening/Closing Time | 1s |

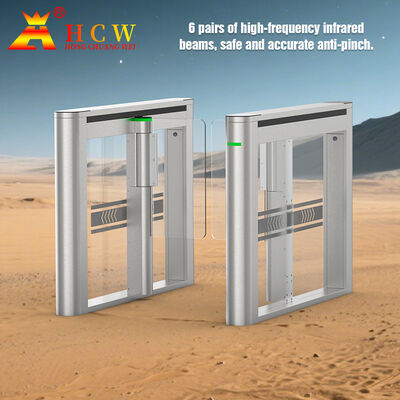

| Infrared Beam | 6 pairs |
| Normal Service Life | 5 million cycles |
| Running Speed | 30~40 people/minute |
| Channel Width | 600-1000mm |
Key Advantages
- Ultra-Fast Access Control: Industry-leading 1-second response time with precision 40W DC brushless motor, processing up to 40 persons per minute.

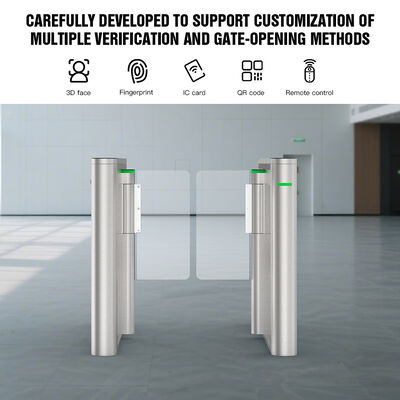

- Advanced Biometric Integration: Ready integration with face recognition technology for touchless access solutions.
- Intelligent Pedestrian Management: Smart infrared detection (6 pairs) automatically adjusts to human flow patterns.
- Customizable Operation Modes: Adjustable cycling speeds (1-3s) based on time periods or security levels.
- Energy-Efficient Performance: Consumes minimal power while delivering robust performance across extreme temperatures.
Applications
- Mass Transit Systems: Excels in subway stations and airports, processing 40 persons/minute with 1-second response time.
- Corporate Security: Adapts to different security levels in office buildings while maintaining fast throughput.
- Smart City Infrastructure: Ideal for stadiums and municipal buildings with smart city integration capabilities.
