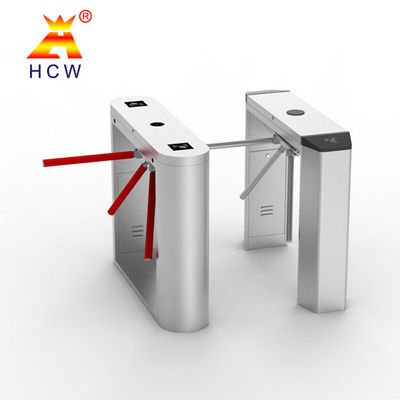

Semi Automatic Tripod Security Gates QR Code RFID Card Tripod Access Control System

Place of Origin China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW308
Minimum Order Quantity 2
Price USD219~249 per piece
Packaging Details wooden packing
Delivery Time 6-10 working days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Material 304/316 Stainless Steel Number Of Passers 20-30 Persons/minute
Normal Service Life 3 Million Times Name Tripod Turnstile Gates
Standard Channel Width 550mm Input Voltage 240V
Open/ Close Time Not Adjustable Working Environment -25℃ To 70℃
High Light

Semi Automatic tripod security gates


QR Code tripod security gates


RFID Card Tripod Access Control System

Leave a Message
Product Description

Half Height Tourniquet Security Access Control QR Code Ticket RFID Card reader Automatic Tripod Turnstile Gate


Occasion Application

Suitable for commercial buildings, subways, airports, customs, exhibition halls, government buildings, financial institutions, clubs and other high-end indoor applications.


v Running stable without noise and mechanical impact

v Equipped with the dry contact signal input interface, compatible with all kinds of access controllers.

v After swiping card in normal condition, if within the permitting time passages do not pass, the system will cancel the users’ pass right and arm close                    automatically

v Arm automatically open when the power off to make sure safety In case of emergency

v Optional for external counter to record the people numbers for each lane

v Single way or Bi-directional adjustable based on the requirement.

v Equipped with LED directional indication / status lights


The scale of the factory is leading the industry. we are the manufacturer of Turnstile gates which the top 1 of annual production in China , we own 2 factories in Shenzhen and Meizhou Guangdong covers over 50000 square meters .


CW308 intelligent bridge style tripod turnstile,adopts STC CPU chip,high life and high stability,high efficiency and anti-tailing,supports various IC/ID readers,barcode readers,ID card readers,etc.,easy to link with access control systems.It is widely used in the entrance and exit control

of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens,etc.


1.Power supply:AC220V±10%,50±10Hz
2.working environment:-25℃ to 70℃
3.Relative humidity,≤90% no condensation close time: not adjustable
5.Power-on system startup time: 1 second
6.Number of passers:20-30 persons/minute
7.Normal service life: 3 million times
8.Chassis material: standard 304 stainless steel
9.standard channel width :550mm
10.The shape of the chassis can be customized according to requirements



Technical parameters
Product model CW308
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Input control signal Switch value
Running speed

20~30 people/minute.

Opening and closing time Not adjustable
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 550mm
Boom material Stainless steel round tube
Product Size L 1200mm x W 280mm x H 990mm
Channel frame 1.0mm 304D stainless steel
Package weight About 45KG (single side)
