50Hz-60Hz Vertical Tripod Turnstile Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW308
Minimum Order Quantity 1
Price USD200~240 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Material 304 Stainless Steel Case Thickness 0.94mm
Top Cover Thickness 1.15mm Name Tripod Turnstile
Communication Relay Signal Input Voltage 240V
Electromagnet Yes Mechanical Part Movement
High Light

20000 Face Tripod Turnstile Gate


50Hz Tripod Turnstile Gate


60Hz vertical tripod turnstile

Leave a Message
Product Description

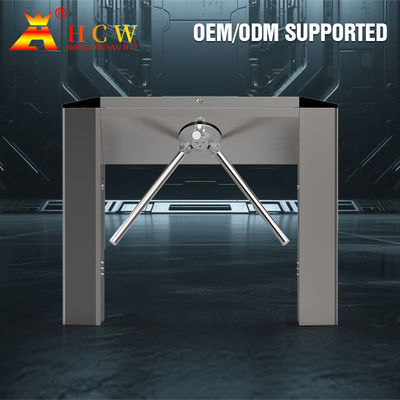

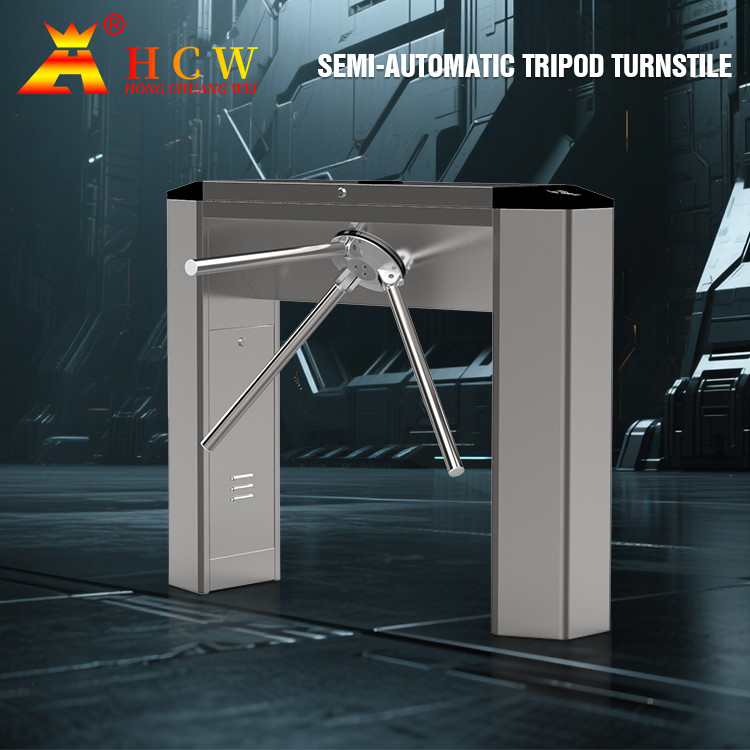

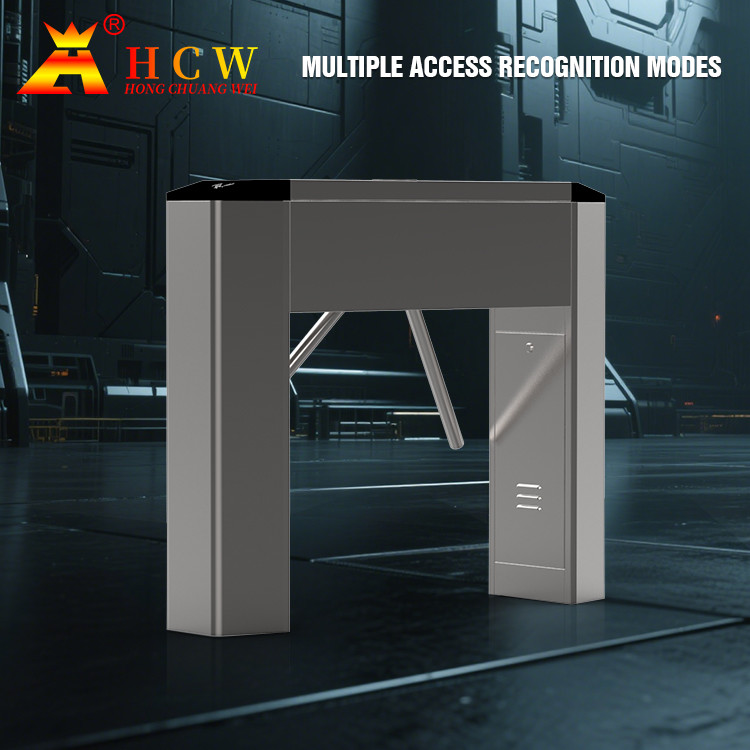

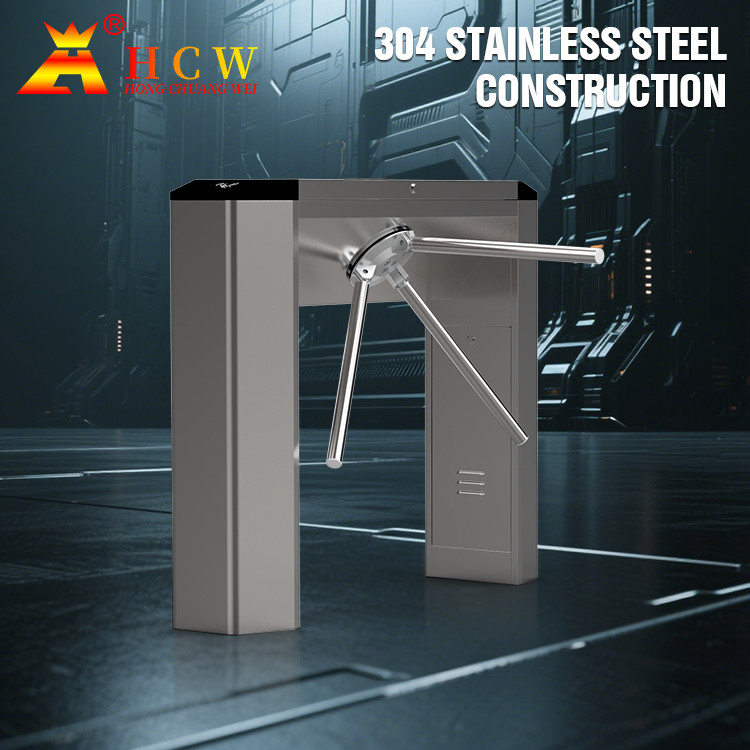

20000 Face Capacity Vertical Tripod Turnstile Gate 50Hz-60Hz


The scale of the factory is leading the industry.The headquarters factory covers an area of nearly 20,000 square meters.In 2018,it also invested 100 million yuan to establish a new industrial park of more than 30,000 square meters in Meizhou,Guangdong, with a monthly production capacity of 10,000 units,which can efficiently satisfy customers Demand for production capacity.



CW308 intelligent bridge style tripod turnstile,adopts STC CPU chip,high life and high stability,high efficiency and anti-tailing,supports various IC/ID readers,barcode readers,ID card readers,etc.,easy to link with access control systems.It is widely used in the entrance and exit control

of CBD business centers,government and enterprise office buildings,high-end residential areas,kindergartens,etc.



Technical parameters
Product model CW308
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity 5%--90%
Input control signal Switch value
Running speed

20~30 people/minute.

Opening and closing time Not adjustable
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 550mm
Boom material Stainless steel round tube
Product Size L 1200mm x W 280mm x H 990mm
Channel frame 1.0mm 304D stainless steel
Package weight About 45KG (single side)
