300-800mm Gate Length RFID Turnstile Gate Semi Automatic Pedestrian Security Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW308
Minimum Order Quantity 10 piece
Price USD200~240 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Passage Width ≤600mm Working Environment Indoor And Out Door
Suitable Temperature -40℃ ~ 80℃ Emergency Measure Pole Falling When Power Off
Reacting Time 0.2S Input Voltage 110V
Electromagnet Yes Mechanical Part Movement
High Light

800mm RFID Turnstile Gate


Semi Automatic RFID Turnstile Gate


300mm pedestrian security gate

Leave a Message
Product Description

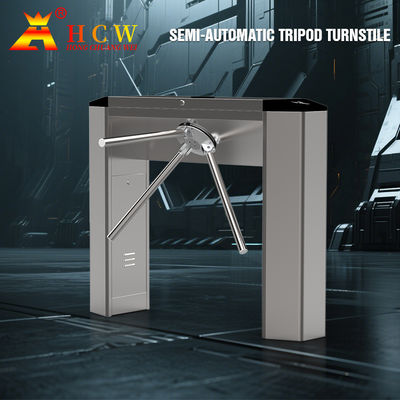

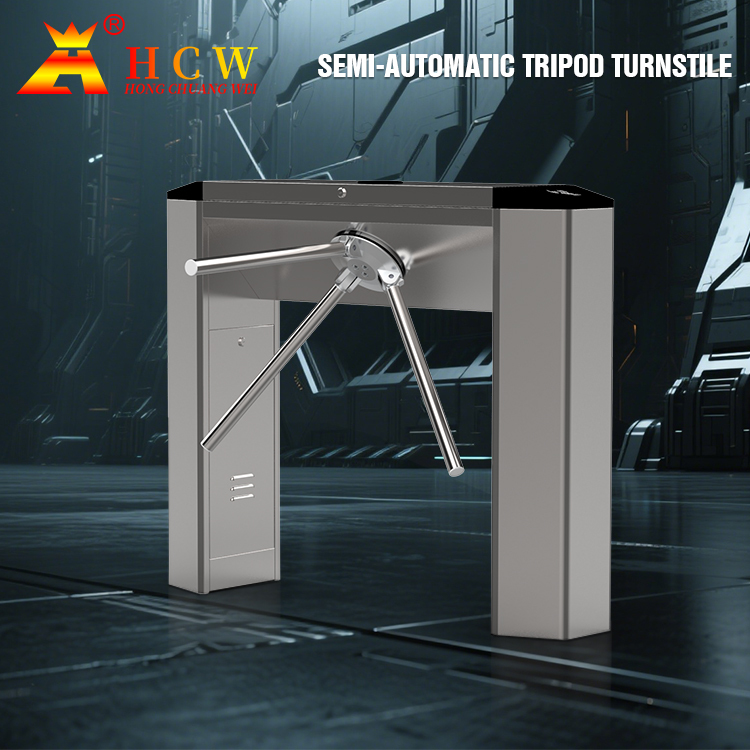

Three Arm Access Control RFID Barrier Gate Semi Automatic Tripod Turnstiles Gate



The outline of the product is formed after pressing the stainless steel plate. The shape is featured as pleasing appearance, good looking, stainless and durable. The system is provided with a standard electric interface and is easily integrated into the equipment with read/write facilities such as magnetic card, bar code card, ID card and IC card. As a result, an orderly and civilized passage is provided for the personnel in and out, and illegal personnel can be barred. At the same time, a special fire control interface is equipped in the system to meet the requirement of fire control passage, so that a rapid down rod control may be realized in emergency for diverting passengers.


1. Power supply voltage: AC220V ± 10%, 50Hz;
2. Drive motor: 24V;
3. Working environment temperature: -30 ° C ~ +70 ° C;
4. Relative humidity: relative humidity ≤ 95%, no condensation;
5. Input interface: 12V level signal or 12V pulse signal with pulse width >100ms;
6. Drive current: >200mA;
7. Communication interface: RS485 electrical standard;
8. Communication distance: ≤1200 meters;
9. Gate length: 300-800mm;
10. Channel width: 600-1600mm;

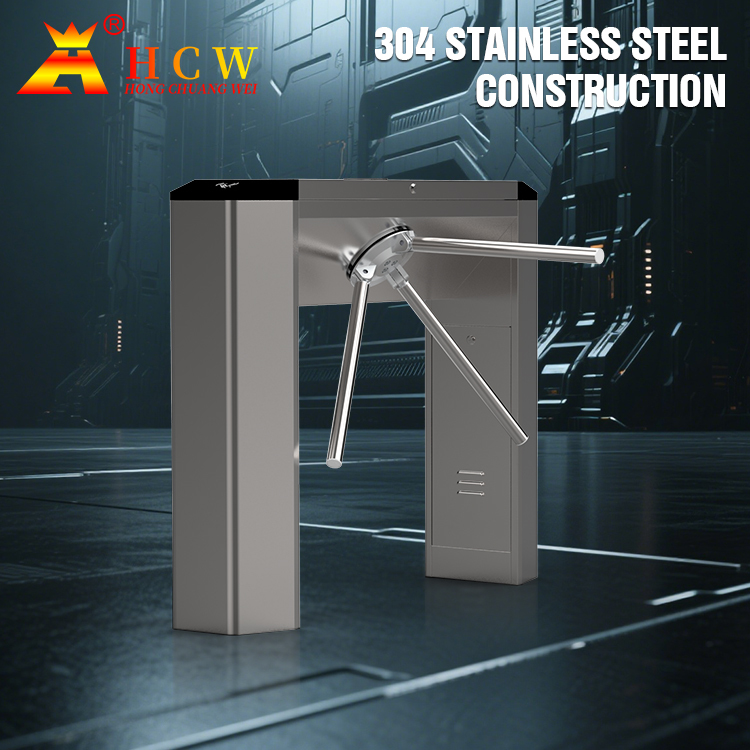

304 stainless steel
Reliability of the core
3million, no fault
35Kg(bridge type)
Width of lane
Driving force of arms
Driving mode
