SS304 Stainless Steel Full Automatic Three Arm Tripod Turnstile Gate

Place of Origin Shenzhen,China
Brand Name hongchuangwei
Certification CE
Model Number CW309
Minimum Order Quantity 1
Price USD300~350 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Tripod Turnstile Motor Brushless
Automatic Full Material 304 Stainless Steel
Case Thickness 1.0mm Top Cover Thickness 1.3mm
Communication Relay Signal Electromagnet Yes
Highlight

Tripod Stainless Steel Turnstile

,

1mm Stainless Steel Turnstile

,

1mm face recognition turnstile

Leave a Message
Product Description

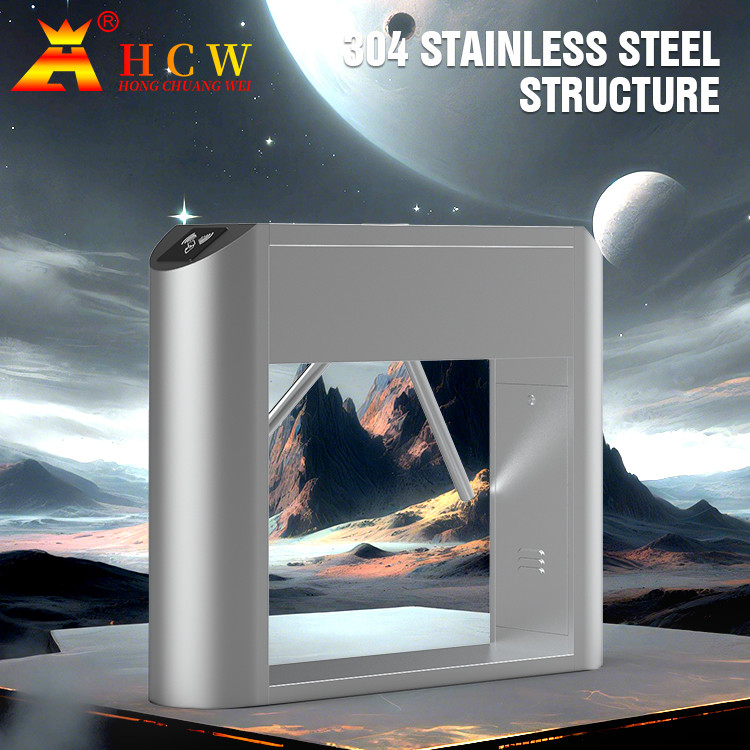

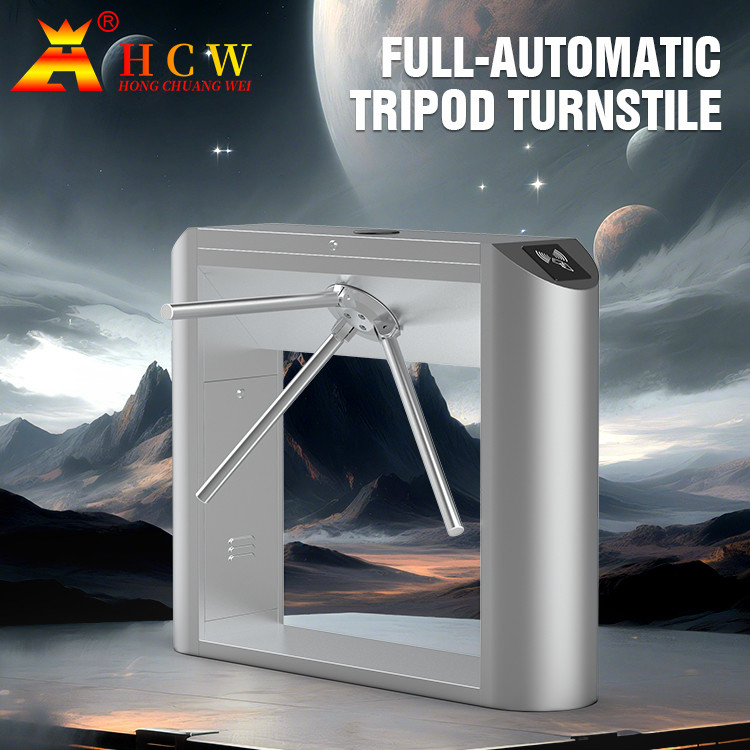

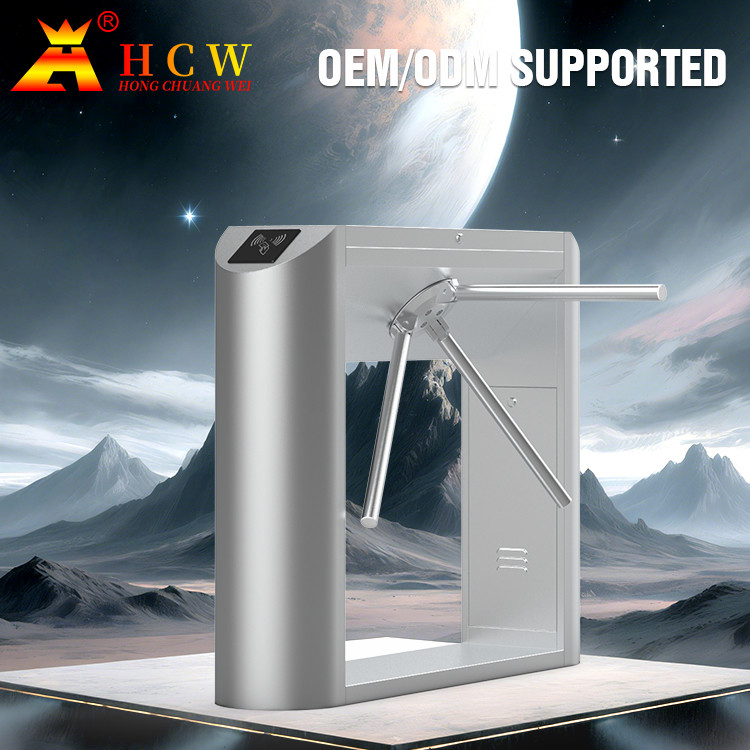

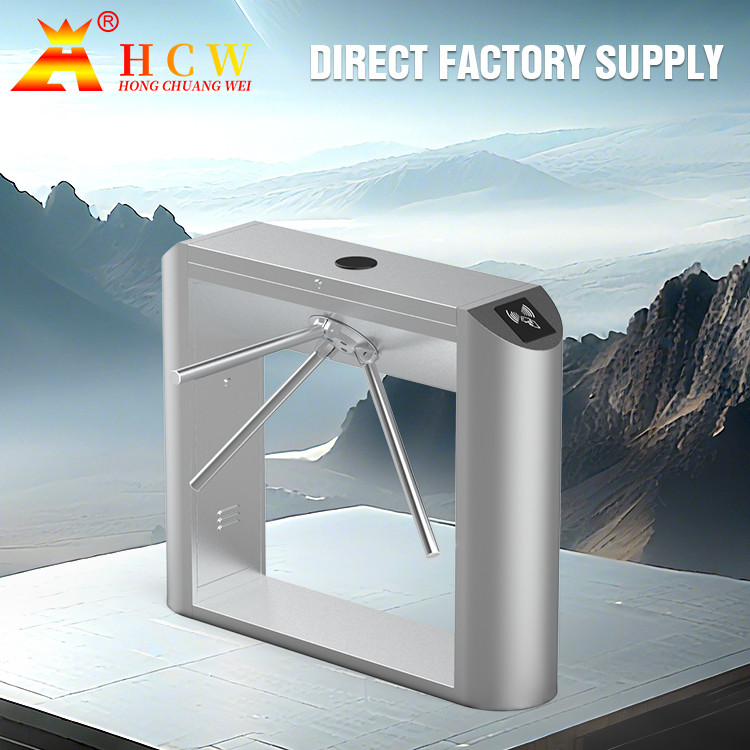

SS304 Stainless Steel Full Automatic Three Arm Tripod Turnstile Gate


Company Introduction

Shenzhen Hongtaiweier Security Technology Co., Ltd.was established in July 2006.It is a national high-tech enterprise specializing in the research and development,production and sales of pedestrian gates and vehicle gates.The company has passed the IS09001 quality management system certification,the national high-tech enterprise and the Shenzhen high-tech enterprise certification.for many years,it has provided various pedestrian passage gates for many listed companies with processing services.The technology and quality have been well received by major customers.We have strong strength and obvious advantages in the intelligent security industry,mainly in the following aspects.





Product Features
CW309 Intelligent bridge-type tripod turnstile,use industrial-grade MCU chip,long life and high stability,high efficiency and anti-tailing,supporting various IC/ID readers,barcode readers,ID card readers,etc.,easy to link with the access control system catch.Widely used in CBD business center,government and enterprise office buildings,high-end residential areas,etc.entrance and exit control.




Technical Parameter
Product model CW309
Motor Brushless motor 24V/60W
Power supply AC220V±10%,50HZ±10% HZ
Working environment temperature -25℃-70℃
Relative humidity 5%--90%
Number of passers 20~30/min
Communication interface RS485
Normal service life 5 million times
Channel width size 550mm
Boom material stainless steel
Product size L 1200mm x W 280mm x H 990 mm
Chassis frame Chassis 1.0thiickness Top cover 1.3mm 304 stainless steel
Packing weight About 45KG(single channel)




SS304 Stainless Steel Full Automatic Three Arm Tripod Turnstile Gate 0


Main Functions

1. With fault self-checking and alarm prompt function,it is convenient for users to maintain and use.
2. It can be connected to any control signal or button or remote control output by any control device to realize single and two-way control.
3. Can be arbitrarily set single,two-way free passage.
4. Automatic reset function: automatically reset every 120 degrees of rotation,or the systemwill automatically cancel the permission to pass this time when the pass is not passed within a specified time (the delay is multi-speed adjustable.
5. Light indication: high-brightness traffic light status indication,guide traffic.
6. Anti-tailing function:every time a person turns 120 degrees,if someone is tailing the gate,it will automatically lock and alarm.
7. Fire protection input:It can be connected with the fire alarm signal to realize constant power down and always open.
8. Memory function:Precise signal memory,when receiving legal signals multiple times in succession,it will automatically reset after detecting the last person passing,which greatly improves the speed of passage.
9. Alarm prompt function: automatic alarm prompt when passing illegally or rushing the gate
10. Brake lever is automatically locked and an alarm is issued.When the reverse external force disappears,the passage will automatically resume.
11. Anti-buffer function:When illegally passing or rushing,the brake lever automatically rotates to a corresponding angle and locks,realizing humanized anti-injury.Automatically reset when the external force disappears.
12. Unattended: Automatically drop the pole when power is off, and automatically move on when the power is on
13. Fast and silent: electric power assist, zero mechanical wear.make an appointment 45-60/min
14. Dynamic reminder: When accepting a legal pass signal, the brake lever automatically rotates about 5 degrees,and then softly rotates to the next reset point and then stops.





FAQ
1. How strong is your company?
We have more than 200 employees,50-person R&D team,2 factories,more than 30,000 squares producing factory and 200 product patents.
2. How is the quality of your products?
We use leading brand accessories from Germany,Japan,and China to ensure product quality from the source
3. How do you do after-sales service?
We provide life-long technical support online through e-mail,video,telephone, etc.,7*24 hours a day service
4. How about the lead time?
It takes 7-10 working days for regular products.It takes 15-20 working days for customized products.
5. How long is your warranty period?
One year warranty
6.payment method
T/T, Western Union.
7.The way of Transportation
DHL, UPS, EMS,FedEx,air freight.Ocean freight.
8.How about packaging?
Firstly,we will wrap our goods with protective film.Then will put it in a cardboard box, into a standard export wooden box to protect the goods.
9.If can do OEM and ODM sevice?
Yes,we can
