25W Flap Barrier Turnstile Gate With Card Reader Infrared Mechanical Anti Pinch

Place of Origin China
Brand Name Hongchuangwei
Certification CE
Model Number CW507
Minimum Order Quantity 2
Price USD 499-799 per piece
Packaging Details wood cases
Delivery Time 6-10 working days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Item Model CW507 Power Supply Voltage AC220V±10%,50±10Hz
Working Environment Temperature -25℃ To 70℃ Relative Humidity 93%
Lane Width 600mm Rated Power 25W
Motor Powe DC Brush-less Motor Running Speed (XX People/minute) 30-40 People/minute
High Light

Anti Pinch Flap Barrier Turnstile


Card Reader Flap Barrier Turnstile


25W Turnstile Gate With Card Reader

Leave a Message
Product Description

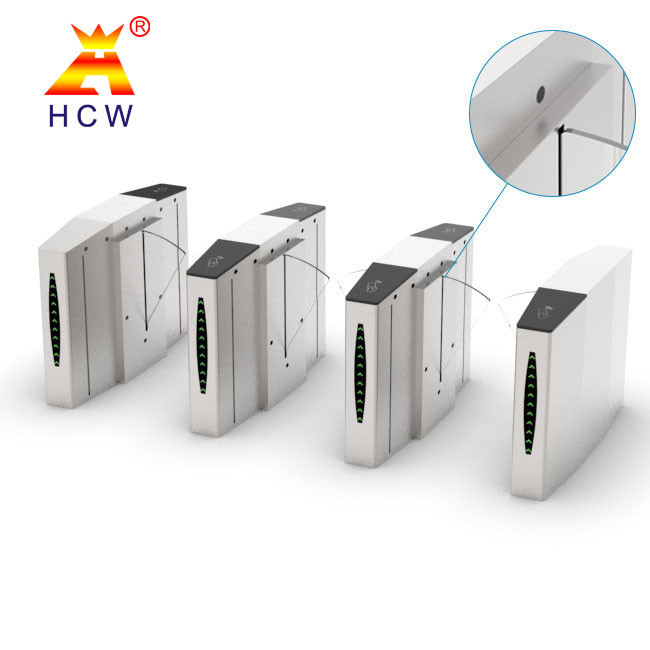

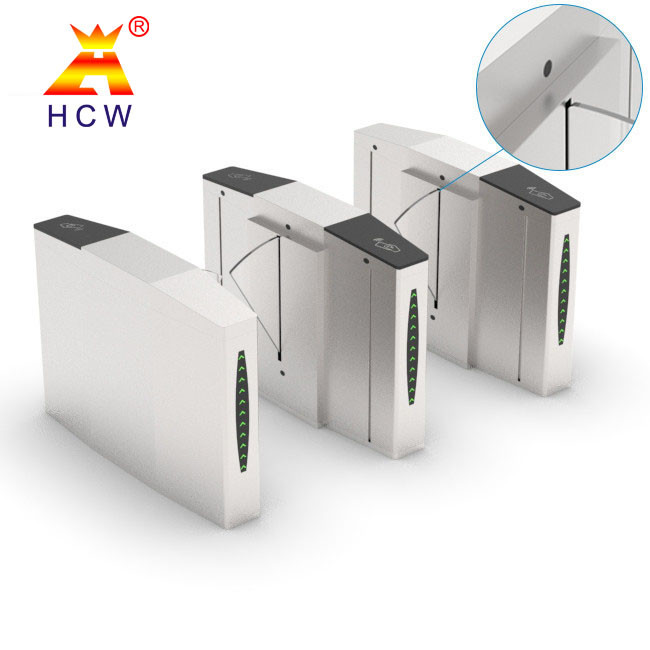

CW507 Flap Barrier Turnstile Gate With Card Reader


1. Easy operation and convenient maintenance with functions of self-diagnostic for failure with alarm.
2. Performance feature can be setting via turnstile control board and that it’s suitable for extansibility.
3. Double protections of infrared and mechanical anti-pinch function:the turnstile will automatic stop or
rebound, sending out alarm signal at the same time when a sudden barrier force is happened during system
4. Multi-modes alarm function, including unauthorized intrusion, anti-intrusion, anti-trailing, overtime alarm,
5. Unauthorized passing prohibit feature: without receiving the opening signal, turnstile arm locks automatically.
6. Anti-Reverse function,when somebody attempt to passing reversely, the barrier arm will quickly shuts and at
the same time alarms.
7. Flexible access instruction function, High brightness LED passing indication. green and red arrow indicate
the passing guide.
8. keep opening or closing mode can be set by code-dialing or control by external button.
9. Overtime function setting feature: System will automatically cancel the access authority when no objects passing detected within the setting time (adjustable).
10. Arm auto can keep open when power is off(free passing) in case of emergency.
11. Can be linked with a variety of control system, receiving the signal of relay switch.
12. Muti Passing modes: uni-direction or bi-direction can be selected.
13. Strong environment adapting ability, Turnstile can be working properly under harsh environments, with strong
ego defense ability. Withstand with weak current, short circuit, humid, rain and snow weather, typhoon or even
other environmental change.



Dimension, Material & Surface Treatment:

  • Appearance: Proper modifications can be made according to your project requirements.
  • Material of the cabinet: 304 / 316 grade stainless steel.
  • Stainless steel thickness of the cabinet: Optional range of 1.5~3.0mm.
  • Lane width may be changed accordingly.
  • Material of the swing gate: tempered glass / acrylic/ and color can be tailored.
  • Material of the flap gate:transparent acrylic glass/ soft silicon gel (red/blue color is optional)
  • Surface treatment of the cabinet: brushing/polishing / frosted finish / electroplating / baking finish.

System Integration:

Can be integrated with access control system, ticketing system, time attendance system, visitor system etc.

  • Built-in reader appointed by customers.
  • Integrate with face recognition system, fingerprint identification system, ID/IC card recognition system, passport identification system, QR code system, etc.

Direction Indicator:

  • The installation position of direction indicator can be adjusted.
  • The pattern of direction indicator can be customized.

Additional Functions:

  • Built-in or external counter
  • Equipped with TCP / IP communication
  • Audible and visual alarm function

For customization requirements not mentioned above, if any, please communicate with our sales team in detail.



Technical parameter
Product number CW507
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25℃~70℃
Relative humidity 5%--80%
IP protection level 42
Rated power 20W
Input control signal Switch value (standard configuration does not include RS232, RS485)
Running speed 40 people/minute
Infrared beam 4 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600mm
Door wing material 15mm plexiglass, 35mm sponge body with soft wings
Product Size L 1400mm x W 300mm x H 990 mm
Channel frame National standard 1.2mm~1.5mm thick + 304 stainless steel
Package weight About 55 KG (single side road)




1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.

2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.

3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.

4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
