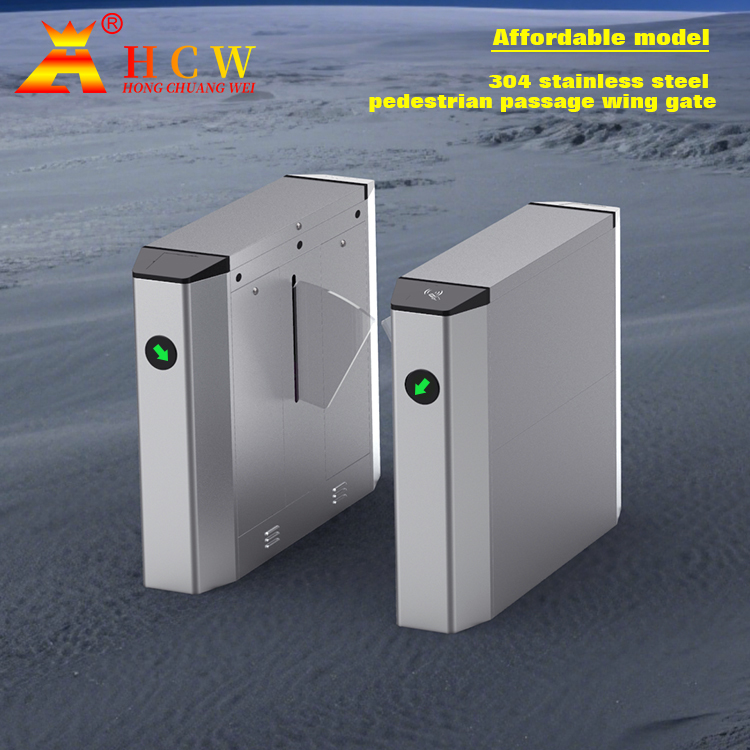

Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness

  • Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness
  • Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness
  • Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness
  • Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness
  • Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness
Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW510
Minimum Order Quantity 2 piece
Price Negotiable
Packaging Details wood cases
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Opening Pattern Automatic Flap Turnstile Thickness Of Steel 1.0mm
Passing Speed < 40 Person/min Wing Material Acrylic Glass
Communication RS485 Electrical Standard Way To Control Full Automatic
Relative Humidity ≤90%, No Condensation Switching Time 1 Second
Highlight

Fast Channel Wing Gate Turnstile

,

1.5mm Wing Gate Turnstile

,

1.5mm access control entrance
Leave a Message
Product Description

Outdoor Pedestrian Access Control Entrance Fast Channel Gate Turnstile Flap Barrier Gate



The Shenzhen headquarters was established on July 1, 2006 and is located in Zhangge Community, Guanlan Street, Longhua District, Shenzhen. The headquarters factory covers an area of about 2000 square meters. With the continuous expansion and expansion of the domestic and overseas sales market, the company invested 1.55 million USD in 2018 to establish a full-asset industrial park in the Meizhou Comprehensive Bonded Zone, and has a self-built Meizhou Industrial Park with its own property rights. The park covers an area of about 20,000 square meters and a modern industrial plant with a building area of more than 30,000 square meters.


In the Modern Spaces with Heavy Foot Traffic, Order and Efficiency Are Paramount
Our intelligent swing gates are not only managers of passageways, but also guardians of safety, user experience, and brand image. With precise control and elegant design, they create a smooth, secure, and high-end pedestrian access experience for you.

Efficient Passage, Unobstructed Flow

  • Rapid Response: Millisecond-level recognition response, with swift swing arm opening. It significantly improves passage efficiency and effectively avoids congestion during peak hours.

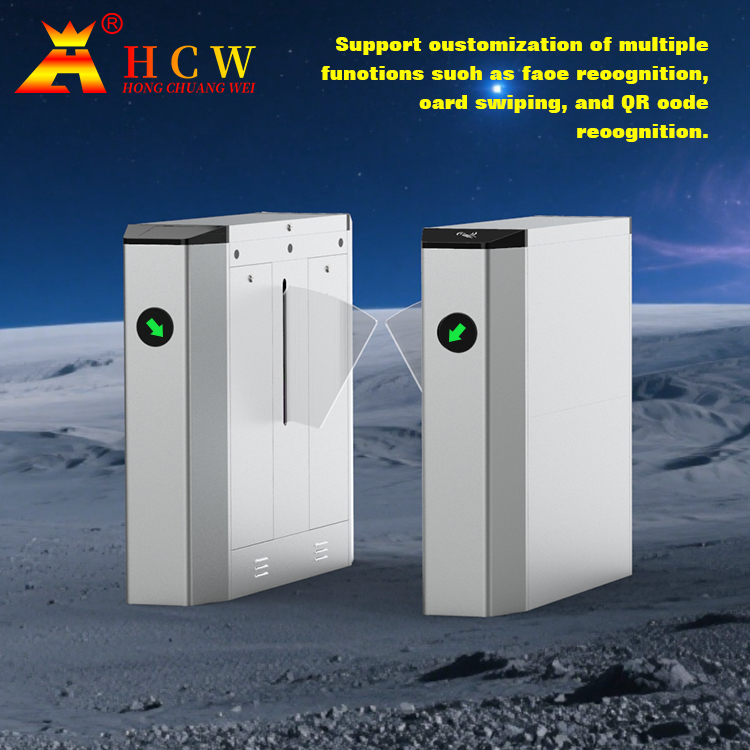

  • Intelligent Logic: Supports multiple identification methods (card swiping, facial recognition, QR code scanning, etc.), enabling unmanned intelligent management and reducing labor costs.

Solid Safety Protection, Rock-Steady Reliability

  • Precise Anti-Pinch Function: The swing arm stops immediately or rebounds automatically when encountering obstacles during operation, providing all-round protection for pedestrians, especially the elderly and children.
  • Anti-Tailgating & Anti-Intrusion: With strict logical judgment, it accurately identifies one person per gate, effectively preventing tailgating and forced intrusion to ensure area security.
  • Fire-Fighting Linkage: In emergency situations, the swing arm opens automatically after receiving a signal to form an unobstructed passage, complying with fire safety regulations.

Technological Aesthetics, Enhanced Image

  • Streamlined Design: The simple and fashionable shape can be perfectly integrated with various modern architectural environments, enhancing the technological sense and high-end image of the venue.

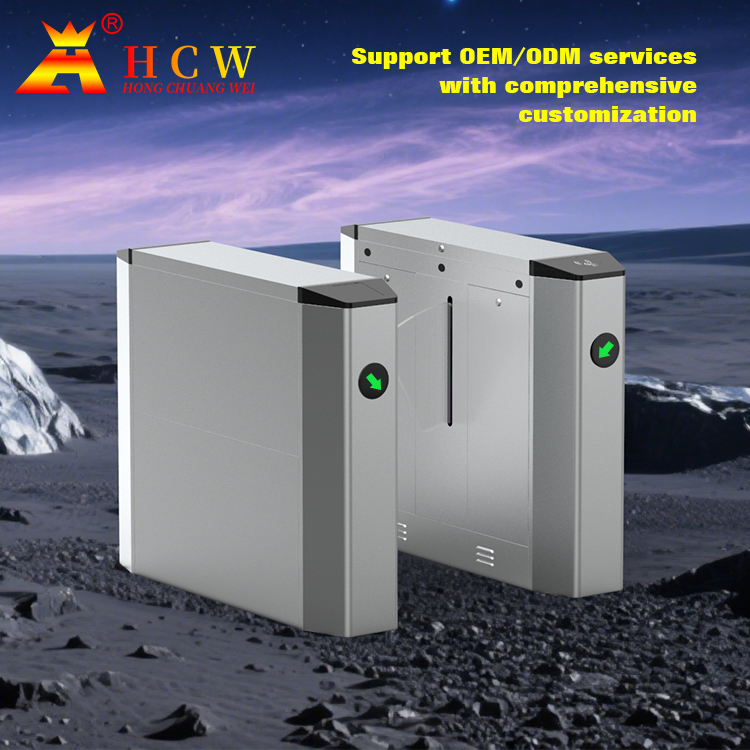

  • Customizable Interface: The chassis color, logo, and lighting effects can be customized, serving as a personalized display window for your corporate image.

Stable, Durable & Long-Lasting Reliability

  • Durable Quality: Adopts high-strength 304 stainless steel material, with core components precision-forged. It adapts to high-frequency and high-load use, maintaining long-term stability.
  • Strong Adaptability: Possesses excellent dustproof, waterproof, and anti-interference capabilities, enabling stable operation in various indoor and outdoor environments.

Application Scenarios:

Office buildings, smart parks, subway stations, airports, schools, libraries, factories, high-end residential communities, and other entrances/exits that require efficient and safe management.




Technical parameter
Product number CW510
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature ‘-25℃-70℃
Relative humidity 5%--90%
Rated power 20W

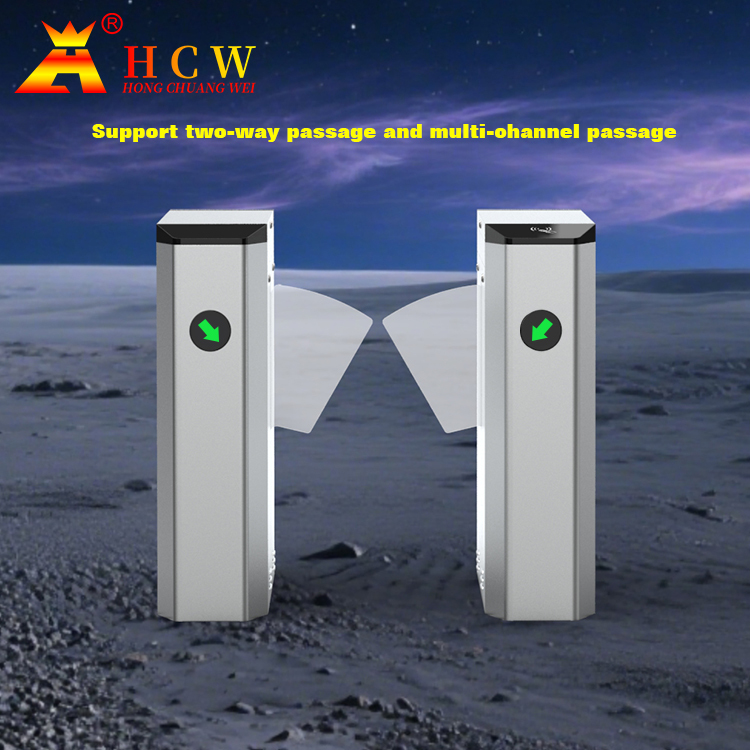

Direction of passage One-way or two-way
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30-40 people/minute
Infrared beam 3 pairs
Number of trouble-free runs 3 million times
Average life span 4 million times
Channel width 550mm
Swing arm material 10mm acrylic door panel
Product Size 1200*280*990mm
Channel frame 1.0mm thick 304 stainless steel
Package weight About 55 KG (single side road)


Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness 0

Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness 1

Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness 2

Fast Channel Wing Gate Turnstile Access Control Entrance 1.0mm Thickness 3
