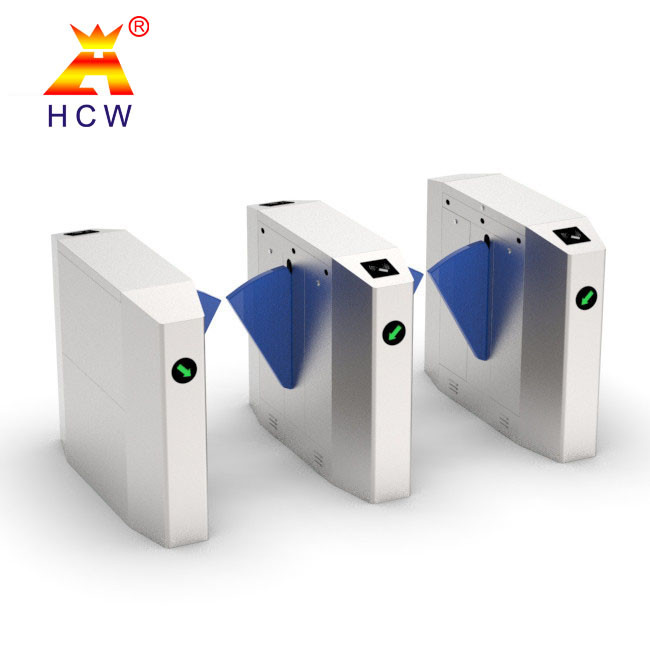

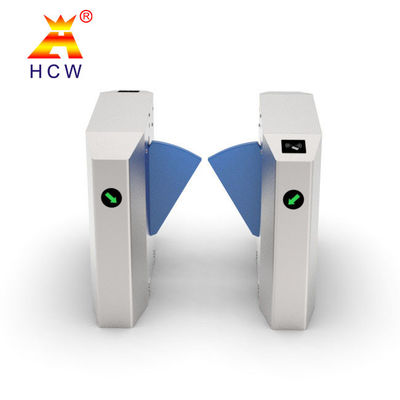

Half Height SS304 Wing Gate Turnstile 40 Persons / Min Support IC Card

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW501
Minimum Order Quantity 2
Price USD300-500 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Name Bridge Round Arc Inclined Wing Gate Material GB 304# Stainless Steel
Dimensions 1200*300*980mm ( L*W*H) Pole Length 250mm
Arm Length 550 Mm( Normal Size) Open Direction Single And Double(optional)
Relative Humidity No More Than 95%,None-condensation Operation Condition -30°C~+70°C
High Light

SS304 Wing Gate Turnstile


SS304 half height turnstiles


IC Card Wing Gate Turnstile

Leave a Message
Product Description

Flap Type Automatic Turnstile Control Board Access Control Wing Turnstile



Integrated control of movement control system and credit card system
A unique incomplete gear transmission system is adopted to make the gate lock and unlock at the zero position more accurate and reliable
There are a variety of working modes to choose from,you can read the card in both directions,or you can read the card while reading the card in the other direction,and the driver's working mode can be set through the supporting software
When the power is cut off, the door wing automatically retracts into the environment,and it is in an unobstructed state at any time,and personnel can pass freely to prevent panic



1. Control board

The gear rotation system is used to lock the gate in the zero position, the unlocking is more stable and reliable, the function is complete, the door control and the consumption function are provided,and the gate can be controlled at the same time, no external consumption system is needed.

2. Card window

With a variety of working modes, you can both swipe in and out in both directions, and you can swipe the card while the other button is open.

3. Acrylic Wing Arm

The system will automatically reset the gate when the valve is not open within the specified time after opening the gate to ensure the safety of the channel.


Power-on system startup time 1.5 seconds
Number of people passing 40 people/minute
Normal service life 4 million times
Case material 304 stainless steel
Thickness 1.2mm
Clear channel width size channel width 600mm
