Traffic Management Acrylic Wing Gate Turnstile 50/60HZ For Subway Metro

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW501
Minimum Order Quantity 10 piece
Price USD450-800 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Name Bridge Round Arc Inclined Wing Gate Flap Material Soft PU, Plastic, Acrylic(Color Optional)
Size 1400 * 280 * 990(mm) Power Input AC100-240V,50/60HZ
Arm Length 550 Mm( Normal Size) Open Direction Single And Double(optional)
Relative Humidity No More Than 95%,None-condensation Operation Condition -30°C~+70°C
High Light

Acrylic Wing Gate Turnstile


50Hz Wing Gate Turnstile


60HZ subway turnstile

Leave a Message
Product Description

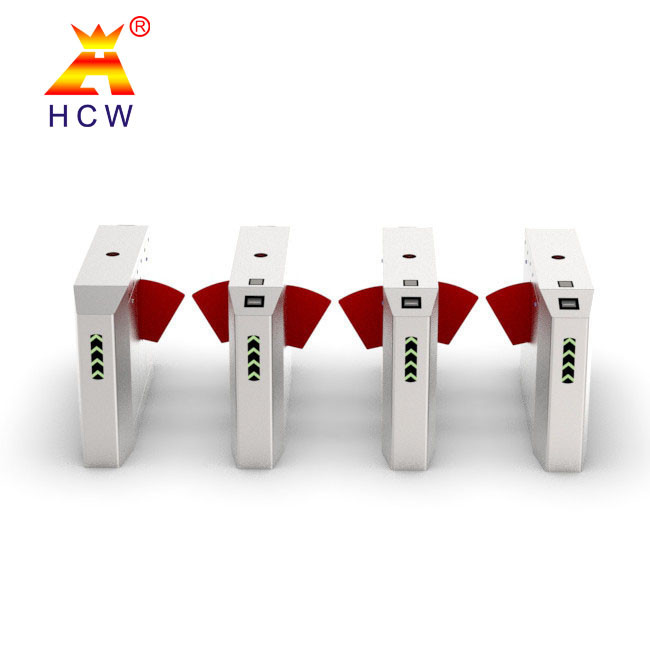

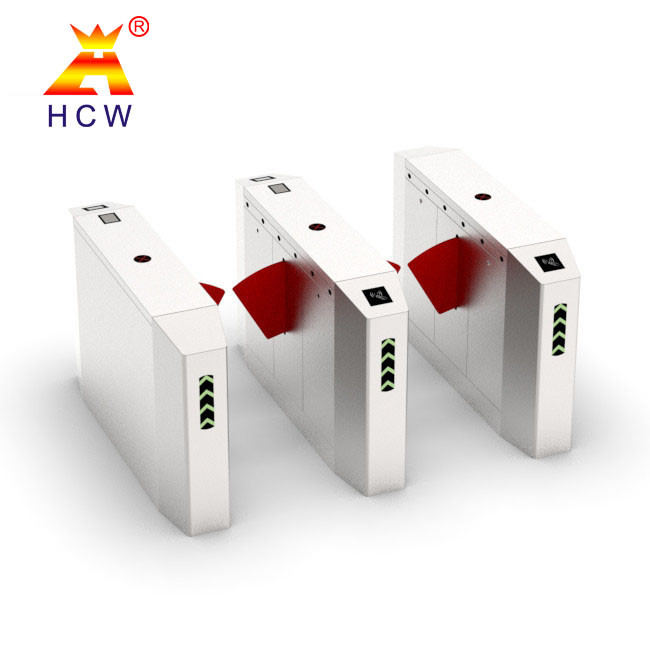

Traffic Management Acrylic Flap Barrier Wing Turnstile For Subway Metro



Integrated control of movement control system and credit card system
A unique incomplete gear transmission system is adopted to make the gate lock and unlock at the zero position more accurate and reliable
There are a variety of working modes to choose from,you can read the card in both directions,or you can read the card while reading the card

in the other direction, and the driver's working mode can be set through the supporting software
When the power is cut off, the door wing automatically retracts into the environment,and it is in an unobstructed state at any time,and personnel can pass freely to prevent panic


Infrared sensor reset, infrared sensor anti-pinch function (standard 3 pairs of infrared ray).
After power off, the access automatically open and automatically closed after power on.
Available connection with access control system, consumer system, electronic ticket system, biometric identification system, electrostatic tester and other equipments.
Single-direction or Bi-direction control pedestrians access, infrared sensor access.
Available for remote control and management directly by computer.


Power-on system startup time 1 second
Number of people passing 40 people/minute
Normal service life 4 million times
Case material 304 stainless steel
Thickness 1.2mm
Clear channel width size channel width 600mm
