IP57 Automatic Flap Barrier Turnstile Gate Entrance Security Automation

Place of Origin Shenzhen,China
Brand Name hongchuangwei
Certification CE
Model Number CW501
Minimum Order Quantity 1
Price USD300~500 per piece
Packaging Details wood cases
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Model CW501 Power Requirements AC110V/220V, 50/60Hz
Working Temperature -28 To 60 Working Environment Outdoor/Indoor
IP Protection Level 57 Rated Power 25W
Input Control Signal Switch Quantity Standard Configuration Does Not Include RS232, 485 Running Speed (XX People/minute) 36 People/minute
High Light

IP57 Flap Barrier Gate Entrance


Automatic Flap Barrier Gate Entrance


IP57 automatic turnstile gate

Leave a Message
Product Description

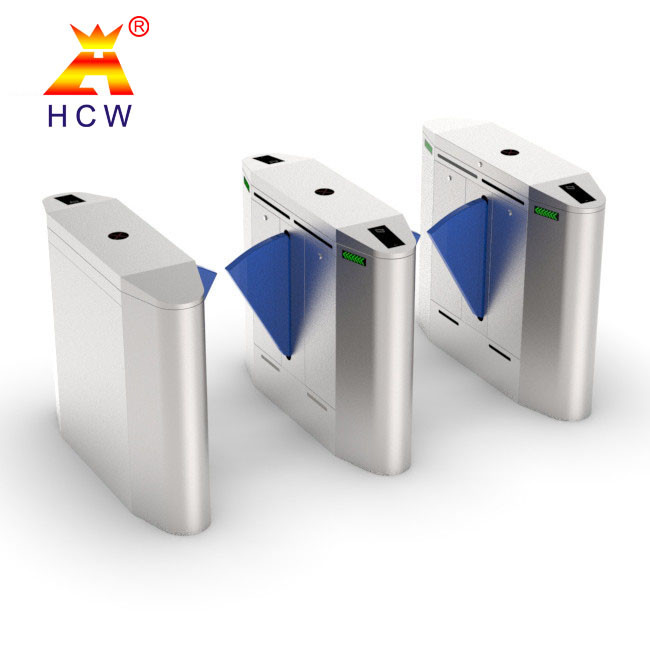

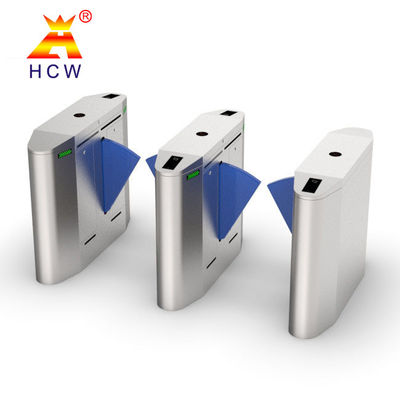

IP57 Automatic Flap Barrier Turnstile Gate Entrance Security Automation


Cw501 Intelligent octagonal inclined plane wing turnstile, use TC CPU chip, DC brushed motor, 3 pairs of infrared detection sensors, long life and high stability, high efficiency and anti-tailing, support various IC/ID card readers, barcode readers, ID cards Readers, etc., easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers, government and enterprise office buildings, high-end residential areas, kindergartens, etc.


From raw materials to parts to finished products, Hongtaiweier is currently the leading manufacturer of large-scale intelligent turnstile gates across the industrial chain in China. With excellent product quality and high-quality after-sales service system, our product sales network has spread all over the country, and sold in Southeast Asia, Europe, North America, South America and many other countries and regions.


Technical parameter
Product Model Cw501
Power supply AC220V±10%,50HZ±10% HZ
Working environment -20℃-60℃
Relative humidity 5%--80%
IP grade 42
Motor power 20W
Communication interface switch value(not include RS232,485)
Number of passers 40/min
Infrared quantity 3pairs
Working life 2 million times
Normal service life 3 million times
Channel width size 550mm
Wing material 15mm Plexiglass ,Soft wings 35mm sponge
Product size L 1200mm x W 300mm x H 990 mm
Chassis Frame National standard 1.2~1.5mm 304 stainless steel
Packing weight About 55kg (single channel)



IP57 Automatic Flap Barrier Turnstile Gate Entrance Security Automation 0
