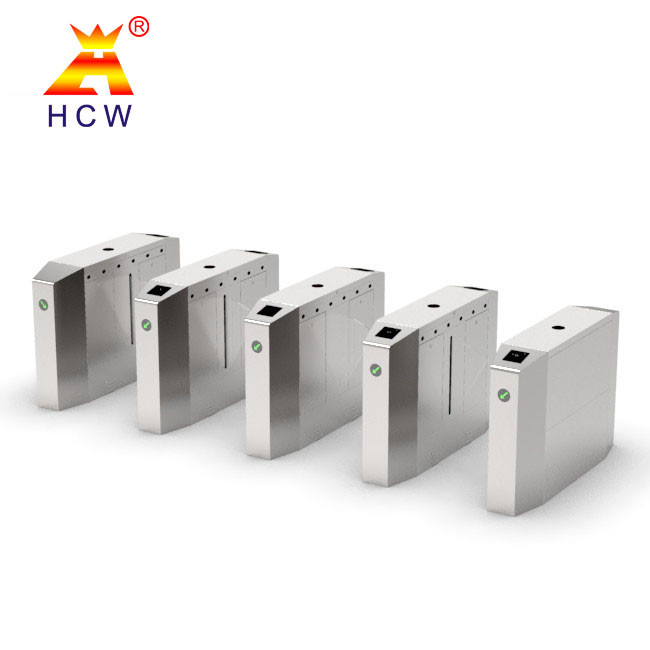

SS304 Pedestrian Turnstile Gate Kindergarten Access Control System

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW512
Minimum Order Quantity 2
Price USD 750-800 per piece
Packaging Details wood cases
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply Voltage AC230V Working Environment Temperature -19℃~75℃
IP Protection Level 55 Rated Power 25Watt
Input Control Signal Switch Quantity Standard Configuration Does Not Include RS232, 485 Running Speed (XX People/minute) 33 People/minute
High Light

SS304 Pedestrian Turnstile Gate

,

25Watt Pedestrian Turnstile Gate

,

SS304 pedestrian security turnstiles

Leave a Message
Product Description

Wing gate pedestrian passage gate Kindergarten access control system



The equipment organically integrates machinery, electronics, microprocessor control and various identification technologies. The LED counting display interface, coordinated to realize the intelligent control and management of the channel, etc.
The intelligent swing gate can be easily compatible with the use of IC cards, ID cards, barcode cards, fingerprints and other card-reading and identification devices, providing a civilized and orderly way for people to enter and exit, and effectively manage the entry and exit of personnel. It can be widely used in stations, docks, subways, factories, buildings, intelligent communities, hotels, clubs, enterprises and institutions, etc. where intelligent management of channels is required.
Cabinet swing gate function and characteristics


1 Standard product features:
1) It has the functions of fault self-checking and alarm prompting, which is convenient for users to maintain and use;
2) Through the built-in small button on the main control board, the running status of the programmable device;
3) Anti-pinch and anti-collision functions, when the swing arm encounters resistance during the reset process, the motor will automatically stop working within a specified time, and reset again after the default delay (until reset), and the force is very small (≤2Kg );
4) Anti-shock function, the swing arm is automatically locked when no signal of opening the gate is received;
5) The swing arm can be adjusted synchronously (for double swing);
6) It has an automatic reset function. After the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's permission to pass this time;
7) Normally open or normally closed can be freely adjusted to meet the requirements of different venues;
8) It can be connected with a variety of card reading devices to receive relay switch signals;


2.2 Scalable functions:
1) Sound and light alarm function, including illegal intrusion alarm, anti-pinch alarm, etc.;
2) counting function;
3) Infrared reset function;
4) The chassis is lengthened, the swing arm is lengthened, etc.
Main structure and configuration of box swing gate
◇Standard case 1
◇Swing arm 1
◇Control panel 1 set
◇Direction indicator board 1
◇Transformer 1
◇ Motor 1
◇Movement and transmission part 1 set
Standard technical parameters of box swing gate
◇Case material: domestic standard 304 stainless steel
◇ Chassis size: 1400 length * 280 width * 1000 height (MM) (standard)
◇Swing arm length: 600-900mm
◇Weight: 60Kg
◇ Swing arm transmission angle: 180 degrees
◇ Swing direction: one-way or two-way
◇Working voltage: AC220 ±10% V/50 ±10% HZ
◇Drive motor: DC brush motor 200W/24V
◇Input interface: dry contact signal or 12V level signal or 12V pulse signal with pulse width ≥100ms, drive current ≥10mA
◇ Communication interface: RS485 standard distance ≤ 1200 meters



Infrared radio 5 pairs
trouble-free operation 2 million times
average life span 3 million times
Channel width 850mm
Door wing material soft double wings
Product size length 1200mm x width 300mm x height 990 mm
Channel frame 304 stainless steel
Packing weight bout 65 KG (single side lane)
