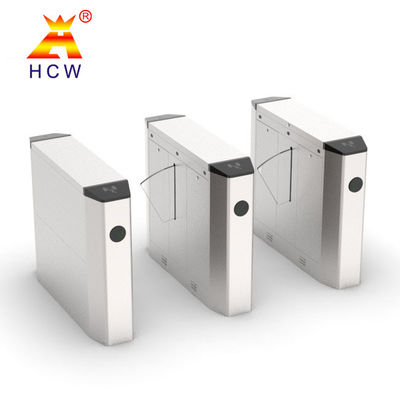

304SS office building turnstiles Access Control Face Recognition Turnstile

Place of Origin China
Brand Name Hongchuangwei
Certification CE
Model Number CW510
Minimum Order Quantity 2
Price USD 749-799 per piece
Packaging Details wood cases
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model CW510 Motor Power DC
Working Environment Temperature -19℃~75℃ Relative Humidity ≤90%
Material 304 Stainless Steel Running Speed (XX People/minute) 30-40 People/minute
High Light

304SS office building turnstiles


CE office building turnstiles


304SS Face Recognition Turnstile

Leave a Message
Product Description

Enterprise Factory Access Control Attendance Wing Gate Face Recognition Gate


It can provide a civilized and orderly way of passage for people entering and leaving, and effectively manage the entry and exit of people
Widely used in stations, docks, subways, factories, buildings, schools, residences and other occasions where intelligent management of passages is required


Functions & Features
1) Rapid identification technique, available to identify accurately and efficiently the magnetic card, bar code card, ID card and IC card.
2) DC Brushless Motor, Maintenance Free
3) On-line or off –line mode(optional)
4) Real time trouble self-detect and alarm indication, ensuring system safe operation and facilitating maintenance and operation
5) With direction indication, guiding passenger to entry and exit.
6) Self automatic locking to prevent force passing without the card
7) Automatic counting and displaying number of passenger, facilitating observation and with a displaying total amount as high as 90,000
8) Light and sound alarm indication function, preventing illegal entry or irregular passing
9) Powerful on-line intelligent control mode, facilitating you:
A) To adjust the operation speed of the barrier according to the flow of passenger and improve the passing rate.
B) To set up operation mode for passage entry and exit.
C) To read card with multiple times, the special function meeting the application requirements of a particular site.
D) To set up the card reading with or without memory.
E) To select a reasonable normally open or close mode, to divert the flow of passengers effectively.
F) Setting function humanized for reset of over time passing.
10) The infrared sensing technique realizes real time monitor of passage, safe protection and tail-proof.
12) The processing mode in emergency or in special conditions.
13) Having standard input/output port, facilitating the integration of the system and the other equipment, to realize far end control management.
14) Super combination capability, with the combined application of products of different passage types and series, not affecting the system performance.
15) Strong system expending capability, available to add new product at any time
16) Far end control management: function to far end control of barrier mode, meeting the special requirements of the users and the fire protection




Infrared radio 5 pairs
trouble-free operation 2 million times
average life span 3 million times
Channel width 600mm
Door wing material soft double wings
Product size length 1200mm x width 280mm x height 990 mm
Channel frame 304 stainless steel
Packing weight bout 65 KG (single side lane)


Application Of Flap Barrier Gate

  1. lobby entry
  2. Subway
  3. Airports
  4. Stations,Library




1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.

2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.

3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.

4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
