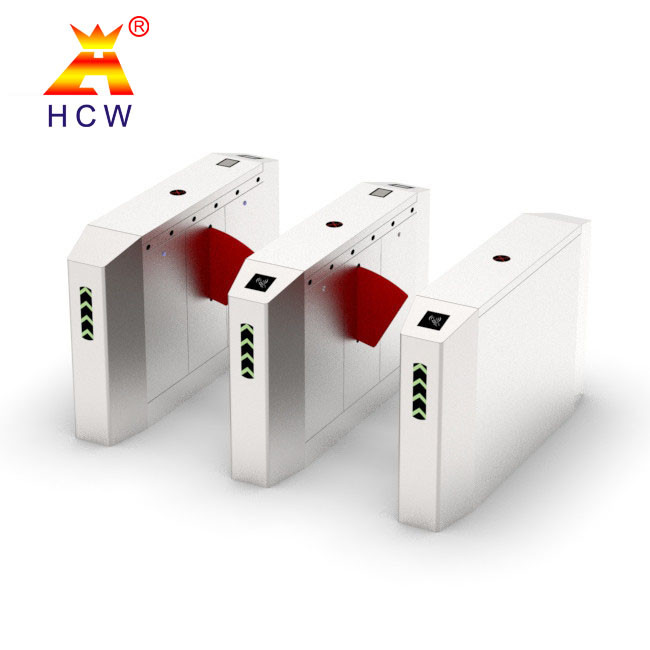

Anti Pinch Retractable Flap Barrier Turnstile AC220V Wide Passage

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW503
Minimum Order Quantity 2
Price USD 750-800 per piece
Packaging Details wood cases
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Working Environment Temperature -20℃~76℃ Relative Humidity 97%
IP Protection Level 46 Rated Power 25W
Input Control Signal Switch Quantity Standard Configuration Does Not Include RS232, 485 Running Speed (XX People/minute) 34 People/minute
High Light

Retractable Flap Barrier Turnstile


Anti Pinch Flap Barrier Turnstile


AC220V retractable flap barrier

Leave a Message
Product Description

Wide Passage Retractable Flap Barrier Turnstile AC220V Support Bar code



Product Introduction

intelligent octagonal inclined wing turnstile gate, using STC CPU

Chip, DC motor, 6 pairs of infrared detection sensors,B long life and high stability,high efficiency and anti-tailing, support various IC/ID readers, barcode readers, ID card readers, etc., easy to connect to the access control system .It is widely used in the entrance and exit control of CBD business centers, government and enterprise office buildings, high-end residential areas, kindergartens, etc.




  • Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in
  • Flexible selection of always open and always closed modes, two-way passing can also be set according to the flow of people,
  • the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
  • Anti-following tracking control technology, strictly preventing unauthorized personnel from passing through
  • Anti-pinch function, when the door wing is blocked during the reset process,it will automatically rebound or the motor will automatically stop working within the specified time, and sound and light alarms will be issued at the same time
  • It can be run online or offline
  • LED passing direction indication, display passing status
  • When the power is off, the door wings automatically retract into the chassis, the passage is in a clear state, and personnel can pass freely to prevent panic
  • With automatic reset function, after opening the door, the system will automatically cancel the user's permission to pass this time if the user does not pass within the specified time,and you can set the passing time



Technical parameter:
Product number CW503
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -20℃-60℃
Relative humidity 5%--80%
IP protection level 42
Rated power 20W
Input control signal RS232, 485
Running speed 40 people/minute
Infrared beam 6 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 550mm
Door wing material 15mm plexiglass, 35mm sponge body with soft wings
Product Size 1200*300*990mm
Channel frame National standard 1.2mm~2.0mm thick + 304 stainless steel
Package weight About 55 KG (single side road)


List of key materials:

Note: For accessories that need to be inspected, the specifications of the accessories are added to the end of the specification.

Key material name Brand Material model
Power supply Outsourcing Single channel DC24V/6.25A
Gate control panel Self made TDZV5.0
Movement Self made 200*220*698
Pedestrian swing arm Self made 550*395*Φ35
Manual button Self made TT-SK
Infrared Outsourcing Customized oval AX-15KD (8V-12V)
Accumulator Outsourcing 12V1.3A
Chassis Self made 1200*280*990mm



Competitive Advantage

1. Friendly and professional customer service people help you in 16 hours.
2. More than 10 years powerful ODM/OEM ability,could make product shape design,custom logo,custom package.
3. We can provide not only product, but also system software management.Save your time and cost.
4. Special service from Goldantell: For repairing,no need you return back product,only need you take a video,our engineer will instruct you,if spare parts was damaged in 1 year,we will send you spare parts by fastest express,you no need bear any fee.
