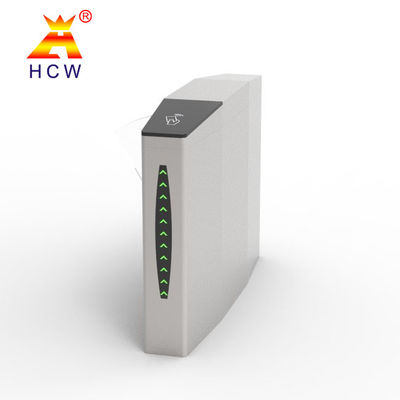

Smart RFID Card Retractable Flap Barrier Gym Turnstile Pedestrian Access Control
RFID Card Retractable Flap Barrier
,Smart Retractable Flap Barrier
,Smart Gym Turnstile
Smart Entrance RFID Card Solutions Pedestrian Access Control Barrier Flap Turnstile Gate for gym building school subway
Description Of Flap Barrier Turnstile
1. Higher flow rate and better anti-tailgate function.
2. Double protections of Mechanical and infrared anti-pinch function. providing more reliable and safer passing.
3. Multi alarm modes: illegal intrusion, anti-intrusion, anti-follow, overtime alarm etc.
4. Anti-rush function,Anti-Reverse,anti-intrusion, anti-follow.
5. LED indicator light: green and red indicate the passing information.
6. Normal open and normal close can be controlled by external button.(for group pass)
Feature Of Flap Barrier Turnstile
- The electric control adopts DC motor to drive stable and reliable, and has low failure rate. Ultra high light traffic indicator function: directional instructions are designed with ultra bright LED lights, indicating more prominently;
- In the case of the person who has not swiped the card into the passageway, the equipment alarm will prompt the traveler to swipe the card.
- The function of the reverse alarm system: when a pedestrian swipes the card, the device alarms the alarm.
- Check the following function: when the first person swipes the card, the second person doesn't swipe the card and the device will alarm.
- The bicycle delay function: prevent the gate from hitting the bicycle;
- Various control functions: by set the setting, the brake machine can be set at special time to the regular open mode, which satisfies a large number of people.
Parameters
| Technical parameter | |
| Product number | CW507 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor | 40W brushless DC |
| Rated power | 70W |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 30-40 people/minute |
| Infrared beam | 4 pairs |
| Number of trouble-free runs | 5 million times |
| Average life span | 6 million times |
| Channel width | 600mm |
| Swing arm material | 15mm acrylic door panel |
| Product Size | 1400*300*990mm |
| Channel frame | 1.2~1.5mm thick 304 stainless steel |
| Package weight | About 65 KG (single side road) |
SS304 Pedestrian Turnstile Gate Kindergarten Access Control System
Wing gate pedestrian passage gate Kindergarten access control system The equipment organically integrates machinery, electronics, microprocessor control and various identification technologies. The LED counting display interface, coordinated to realize the intelligent control and management of the channel, etc. The intelligent swing gate can be easily compatible with the use of IC cards, ID cards, barcode cards, fingerprints and other card-reading and identification devices,
Gym Smart RFID Card Flap Barrier System Access Control Turnstile Gate
Smart Entrance RFID Card Solutions Pedestrian Access Control Barrier Flap Turnstile Gate for gym building school subway Description Function: 1. working method can be set by the buttons on the main panel 2. This model is double wing flap gate, low noise, smaller casing, save space 3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg. 4.Anti-illegal in, anti-intrusion,
Bidirectional Flap Barrier Turnstile Face Recognition Dynamic Temperature Measurement
Dynamic temperature measurement face recognition wing turnstile gate Automatic reset, no reset within the specified time Anti-pinch, automatic rebound when encountering resistance Anti-trailing, accurate memory of the number of passersby Anti-collision, the swing gate is locked without receiving the opening signal Access mode, two-way card swiping, face recognition access Intrusion alarm, continuous alarm will be issued when intrusion Direction indication, LED light to pass
304SS office building turnstiles Access Control Face Recognition Turnstile
Enterprise Factory Access Control Attendance Wing Gate Face Recognition Gate It can provide a civilized and orderly way of passage for people entering and leaving, and effectively manage the entry and exit of peopleWidely used in stations, docks, subways, factories, buildings, schools, residences and other occasions where intelligent management of passages is required Functions & Features 1) Rapid identification technique, available to identify accurately and efficiently the
