Security 5s Flap Barrier Turnstile Low Noise Access Control Turnstile Gate

Place of Origin China
Brand Name Hongchuangwei
Certification CE
Model Number CW506
Minimum Order Quantity 2
Price USD799~1299 per piece
Packaging Details wood cases
Delivery Time 6-9 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Security Turnstile Gate Ane Width 90mm
Working Temperature -18℃~75℃ Power 26W
Input Control Signal Switch Quantity Standard Configuration Running Speed (XX People/minute) 30-40 People/minute
High Light

5s Flap Barrier Turnstile

,

Low Noise Flap Barrier Turnstile

,

5s Access Control Turnstile Gate

Leave a Message
Product Description

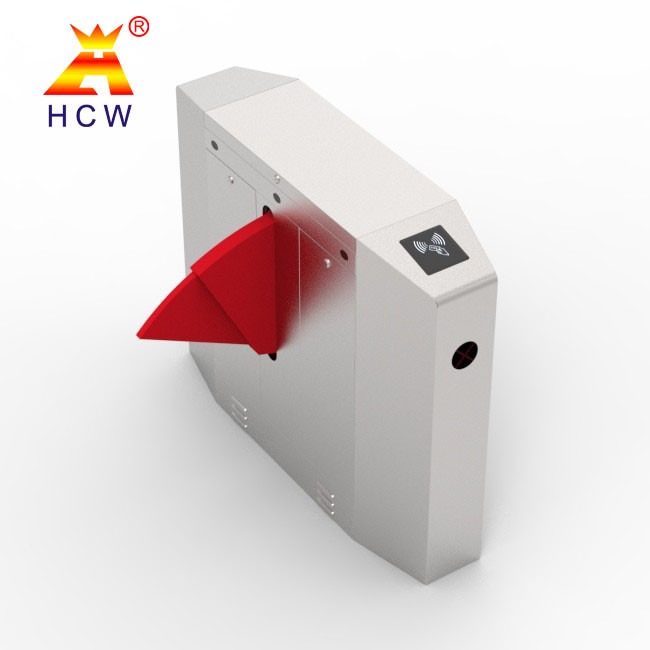

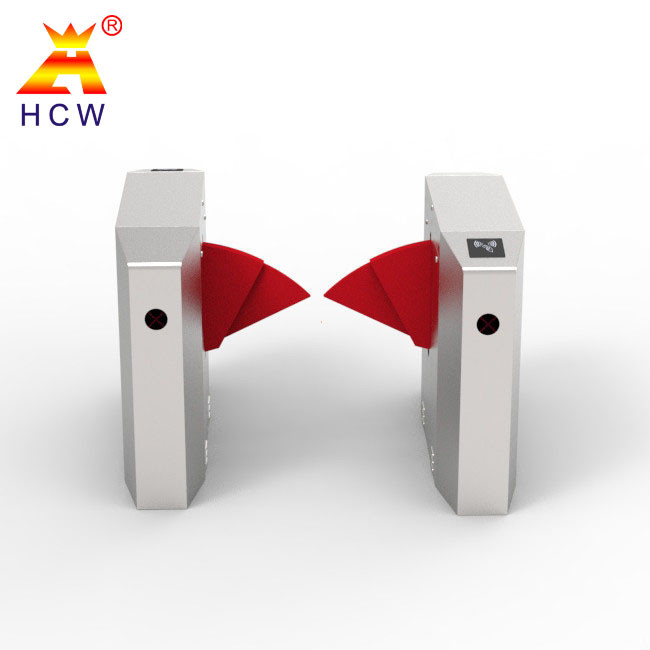

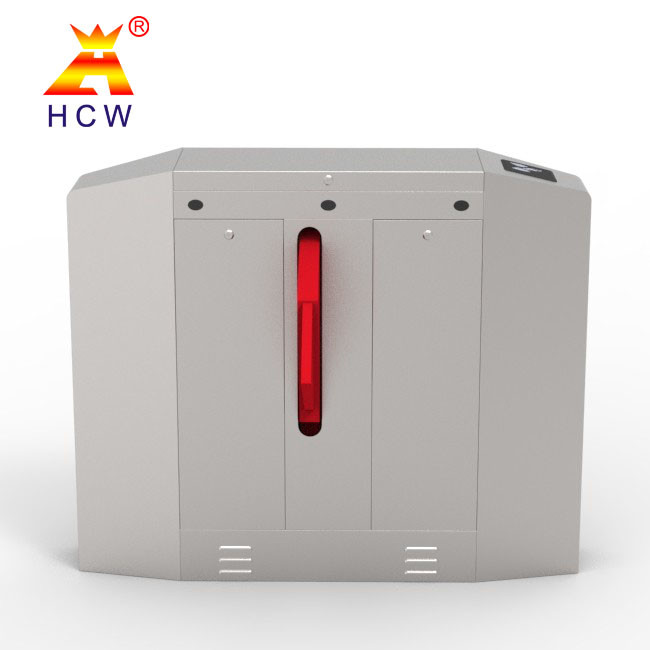

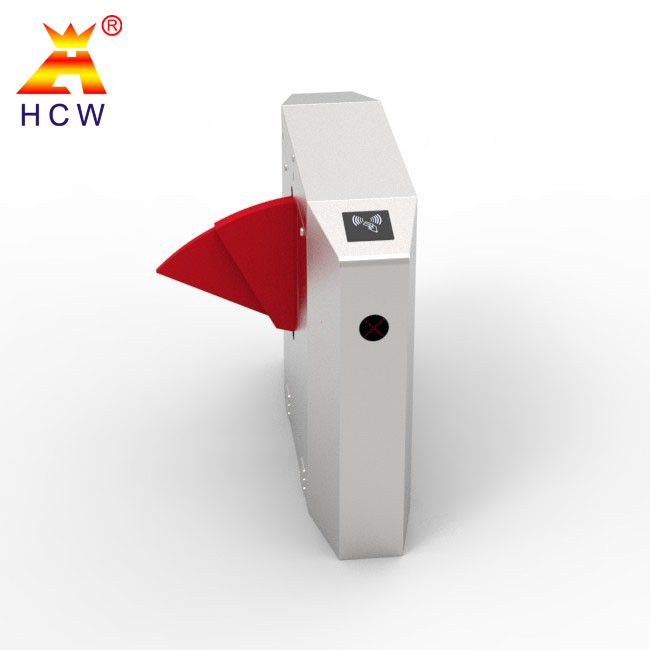

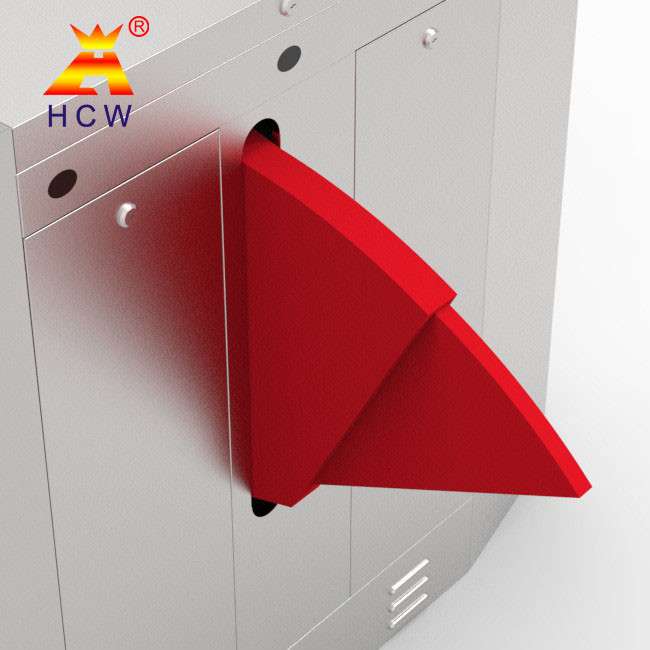

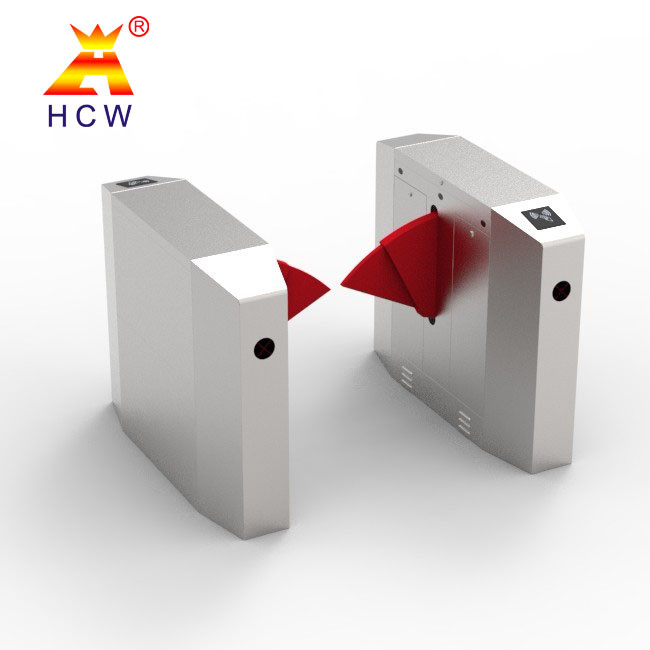

Classic soft Flap-in-Flap electronic system Access Control Barrier Turnstile Gate Manufacturer



1. Wider lane ,ideal for wheelchair/ADA passthru.
2. Adopt Brush-less motor, the optical barrier turnstiles have a longer lifespan.
3. Adopt control technology, which has stronger function and better expandability.
4. Flow rate more fast,and switching speed up to less than or equal to 5s
5. Low noise, sound can be achieved ≤ 20 decibels.
6. Running more smooth, that is no shaking, no shake, no echo.
7. Flap-In-Flap Flap Barrier Gate Main Functions and Features:
8. With auto failure checking and Logical judgment function, make the turnstile access easy for maintenance and operation.
9. Flexible to set the performance, up to dozens of species, and easy to expand.
10. Double protections of infrared and mechanical anti-pinch function.the turnstile will automatically stop or rebound, sending out alarm signal at the same time when a sudden barrier force is applied during system reset.
11. Multi-modes alarm function, including illegal intrusion, anti-intrusion, anti-trailing, overtime alarm, etc.
12. Anti-rush function, without receiving the open signal, turnstile arm locks automatically.


Infrared radio 5 pairs
trouble-free operation 2 million times
average life span 3 million times
Channel width 850mm
Door wing material soft double wings
Product size length 1200mm x width 300mm x height 990 mm
Channel frame 304 stainless steel
Packing weight bout 65 KG (single side lane)



Application Of Flap Barrier Gate

  1. Bookstores
  2. Parks
  3. Exhibition halls
  4. Stadium
  5. Museums
  6. Apartments
  7. Residence Area
  8. Offices
  9. Commercial buildings.



FAQ:

1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.


2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.


3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.


4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
