600mm Full Height Turnstile Gate For Construction Site Railway Station Community
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature | -25 To 70 Degrees | Humidity | <95%, Without Concretion |
|---|---|---|---|
| Passage Width | <=600mm | Dimension | 2400*1500*2300mm |
| Power Supply | AC220~240 V | Traffic Direction | One-way Or Two-way Traffic |
| Fence Length | 600mm | ||
| Highlight | Metal Revolving Full height gate,600mm Full height turnstile gate,20 Persons / Min Full height turnstile gate |
||
Product Description

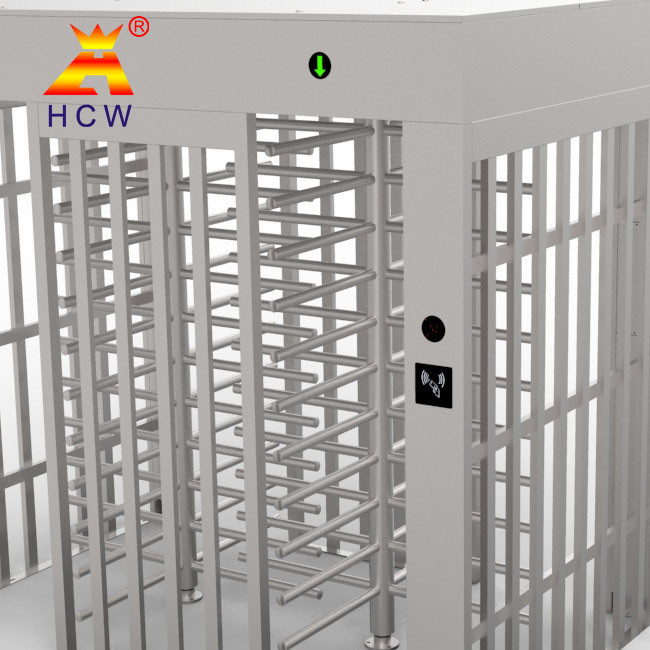

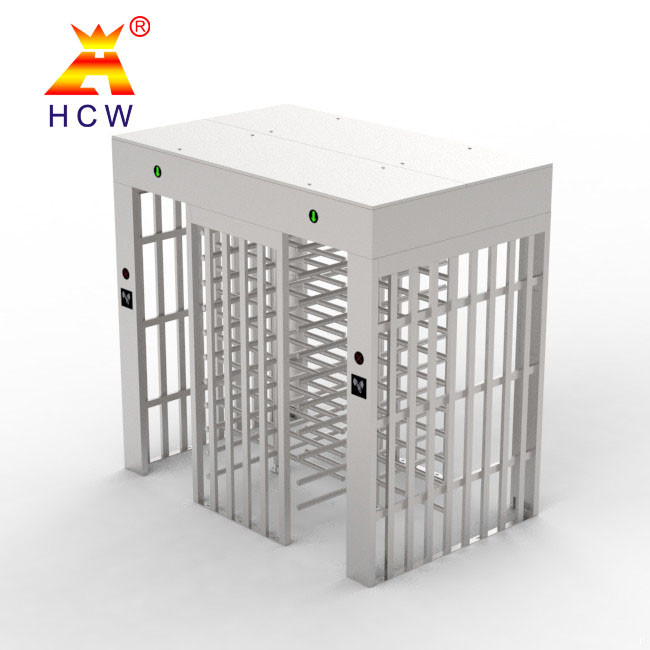

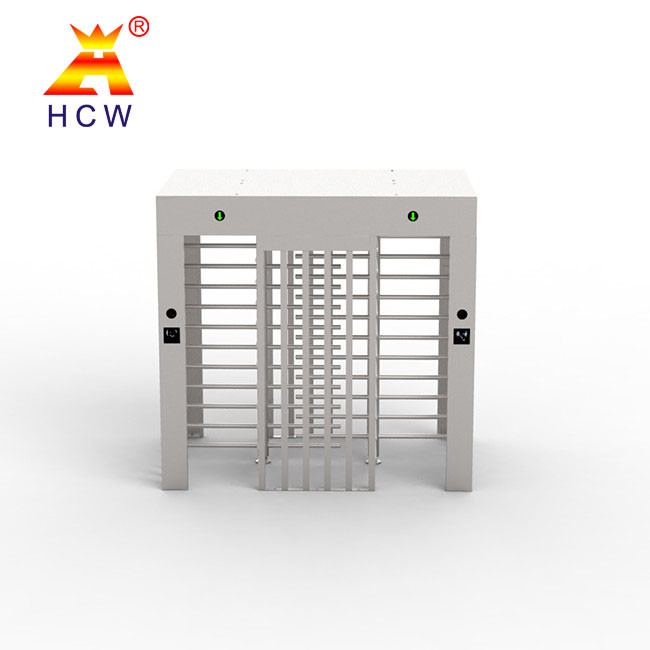

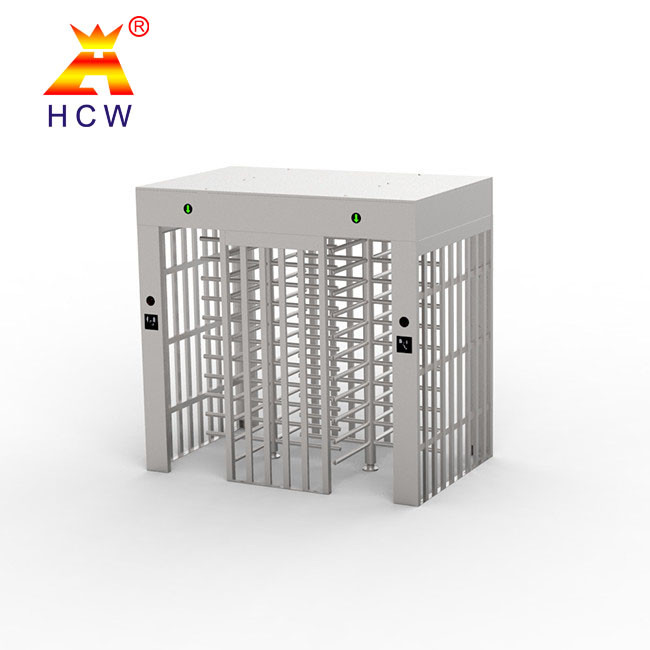

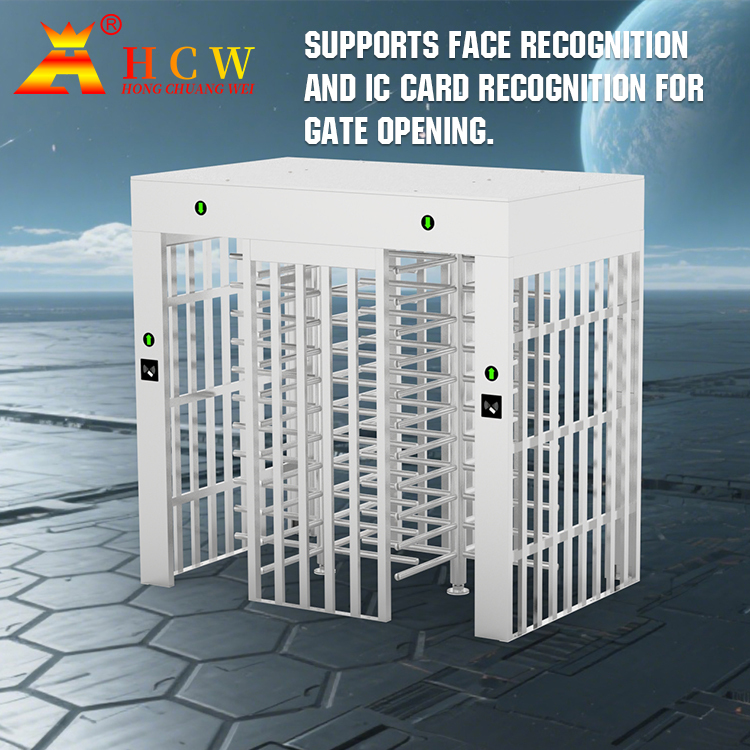

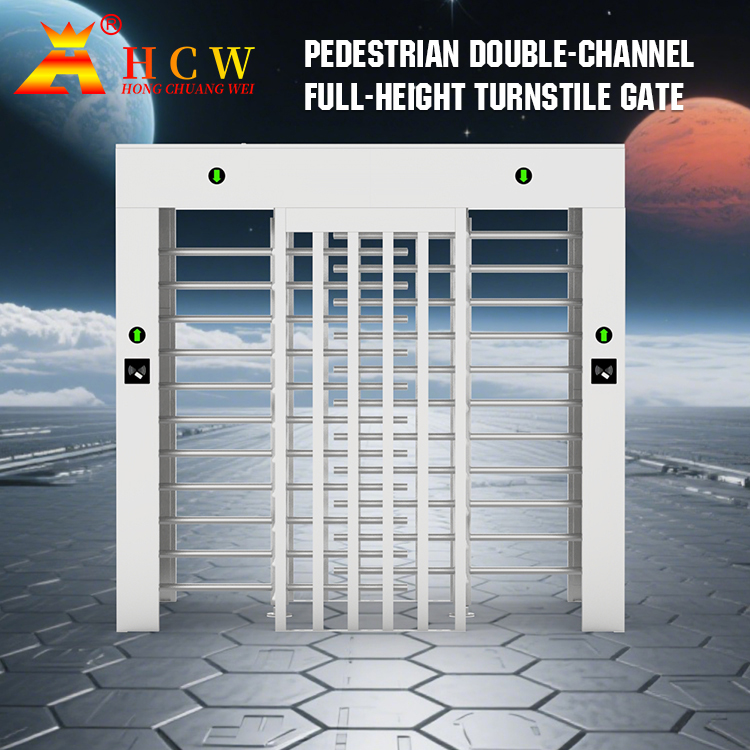

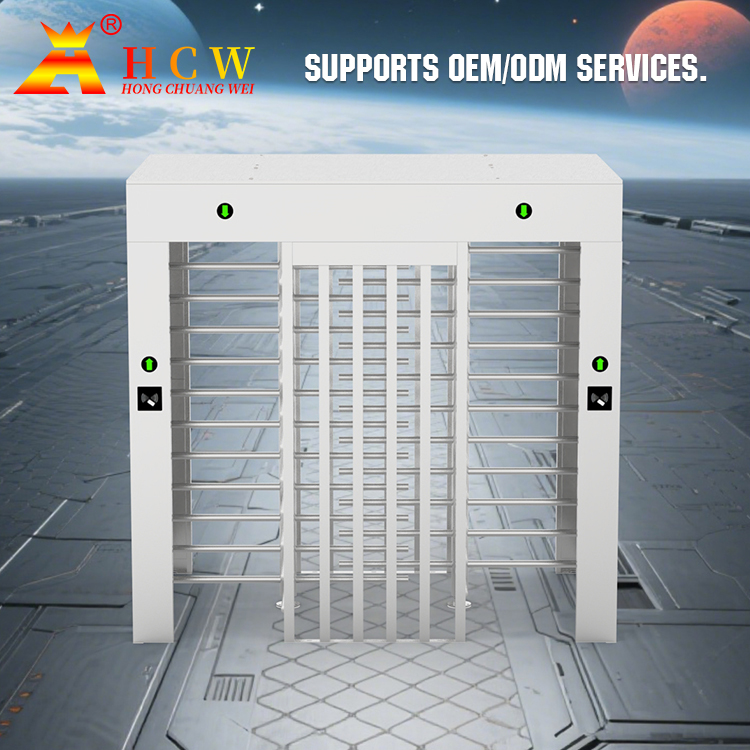

Full height gate cross turnstile construction site railway station community
Long stainless steel box, luxurious and beautiful appearance, sturdy and durable
With a personalized installation interface (convenient to integrate magnetic card, barcode, ID card and other reading and writing equipment)
Smooth operation, soft buffering, low noise, no mechanical shock
The surface of the movement is electroplated with white heavy zinc acid, which is rust-proof and durable
Programmable gate control, with a variety of working modes to choose from, one-way or two-way control can be set (set by the user)
Power-off opening: power-off unlocking and power-off locking. Under normal circumstances, the power is cut off and the lock is unlocked. When there is no power, the gate can pass through freely.
It has a unified and standard external electrical interface, which can be freely connected with various reading and writing devices, which is convenient for system integration.
Power off to open the door, in line with fire protection requirements, power off lock, special occasions also play a role in closing the gate in case of power failure, improve safety and reliability, the staff will activate the backup power supply to deal with it in time
Safe and reliable, the movement of the turnstile has an automatic adjustment hydraulic shock absorber, so that when the turnstile moves, the sound is small and there is no impact, and the brake lever automatically decelerates and returns.
The main board of intelligent gate can be used for secondary development of QR code, ID card reader, attendance system, etc. Capacitors and filter components provide good power support for each component. The intelligent main board is strong and stable, and its service life is greatly improved.
Safe and reliable, the movement of the turnstile has an automatic adjustment hydraulic shock absorber, so that when the turnstile moves, the sound is small and there is no impact, and the brake lever automatically decelerates and returns.
The main board of intelligent gate can be used for secondary development of QR code, ID card reader, attendance system, etc. Capacitors and filter components provide good power support for each component. The intelligent main board is strong and stable, and its service life is greatly improved.
| Technical parameter | |
| Product number | CW802-2 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | ‘-25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor type | 90° full-height movement |
| Rated power | Quiescent power consumption:＜50W,Dynamic power consumption:＜100W |
| Direction of passage | One-way or two-way |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 20 people/minute |
| Opening time | Non-adjustable |
| Number of trouble-free runs | 5 million times |
| Channel width | 600mm |
| Product Size | 2400*1500*2300mm |

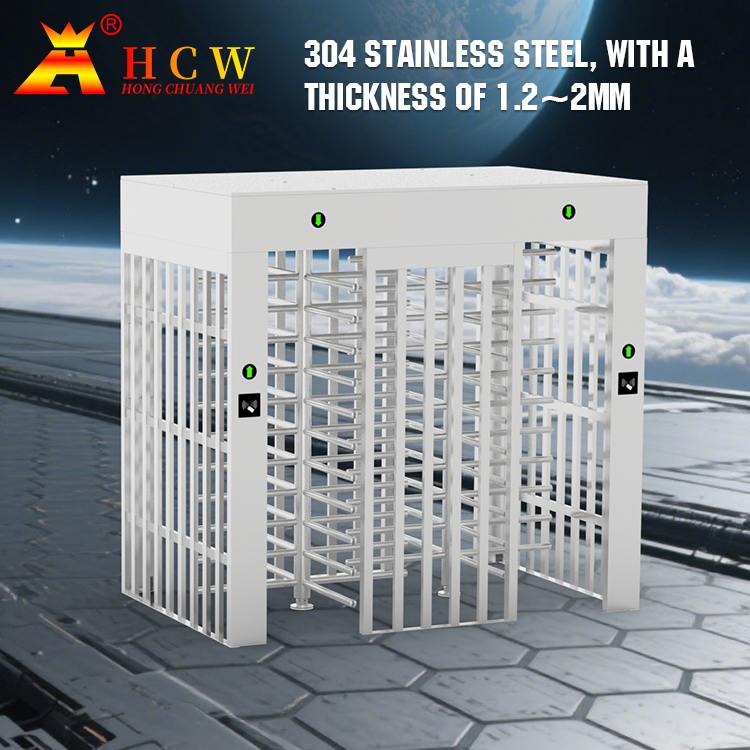

| Channel frame | 1.2~2.0 thick 304 stainless steel(customization) |
| Package weight | About 250KG |
