120 Degree Semi Automatic Waist Height Turnstile High Security

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW803
Minimum Order Quantity 1
Price USD700~800 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Size 1400*1450*1150mm Pass Width 600mm
Thickness 1.2mm Material SUS304
Communication Interface 232, RS485 Standard Traffic Direction One-way Or Two-way Traffic
Fence Length 600mm
High Light

90 Degree Full Height Turnstile


Semi Automatic Full Height Turnstile


90 Degree high security turnstile

Leave a Message
Product Description

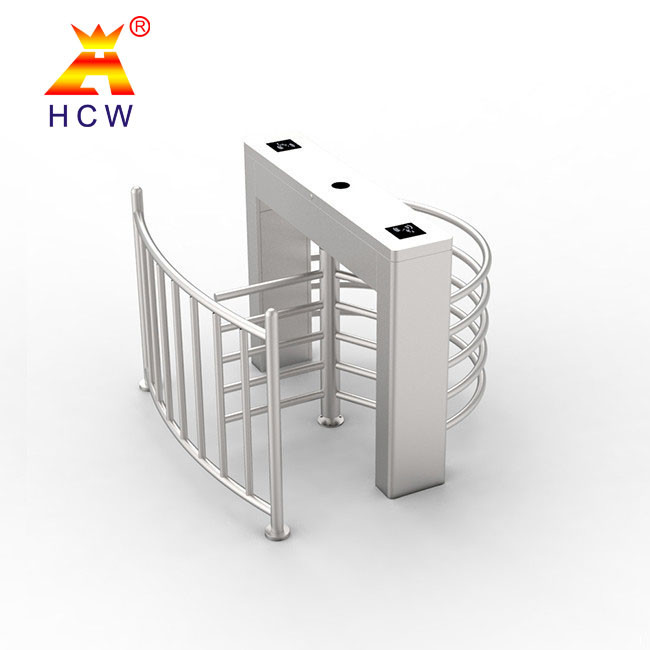

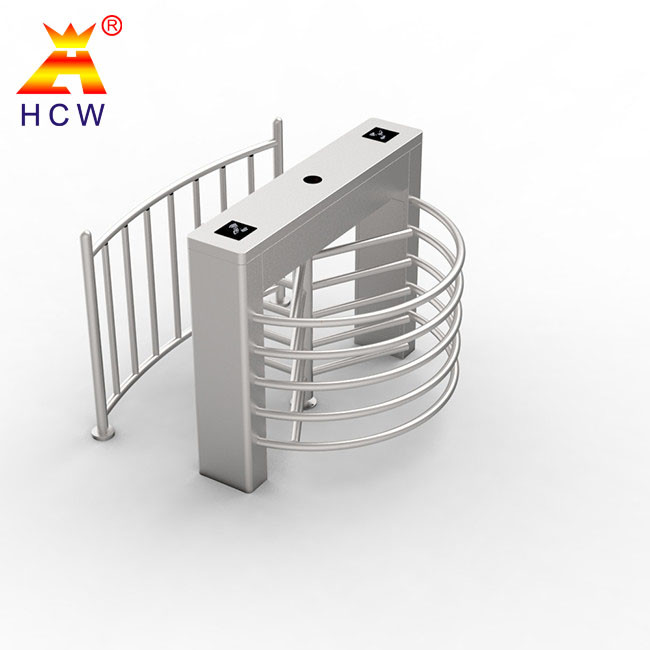

120 Degree Semi Automatic Waist Height Turnstile High Security

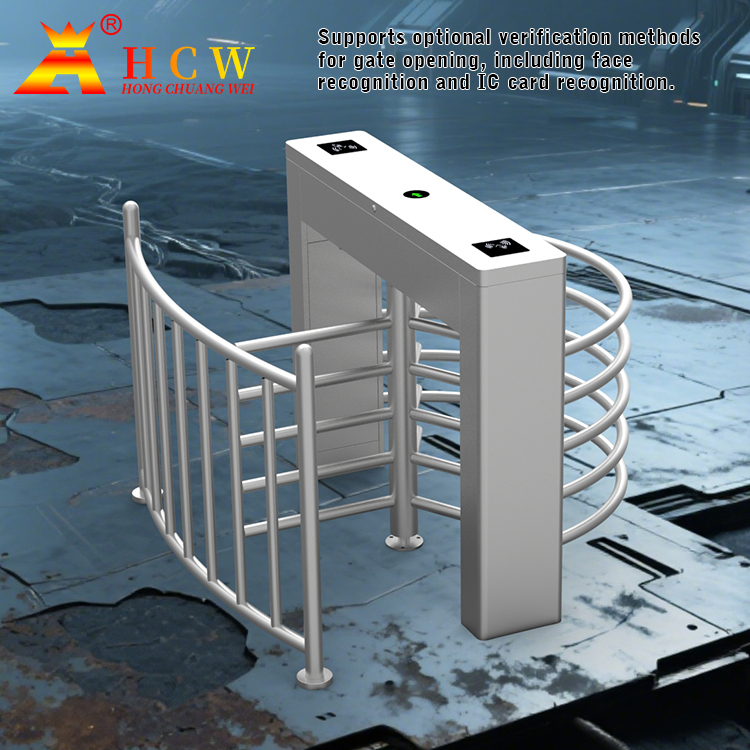

CW803 Intelligent safety half-height turnstile,Use electromagnet control, high life and high stability, long life and high stability, support various IC/ID readers, support various IC/ID readers, QR code readers, fingerprint readers, ID cards Readers, face recognition terminals, etc., are easy to interface with the access control system. Focus on the entrance and exit control of office buildings, CBD business centers, government and enterprise office buildings, and high-end shopping malls.



l 304 stainless steel box, luxurious and beautiful appearance

l sturdy and durable With personalized installation interface (convenient to integrate magnetic card, barcode card, ID card, IC card and other reading and writing equipment)

l Smooth operation, soft buffering, low noise, no mechanical shock

l The surface of the movement is electroplated with white heavy zinc acid, which is rust-proof and durable

l The gate control can be programmed, with a variety of working modes to choose from, and one-way or two-way control can be set (set by the user)

l effectively solve the loopholes in the management of the three-stick gate channel (the problem of drilling people under the rod)

l Power off: power off and unlock, the gate can pass freely when there is no power

l It has a unified and standard external electrical interface, which can be freely connected with various reading and writing devices, which is convenient for system integration

l It has a clear passage indication function, prompting the passage status (passable "→", no passage "×")

l Automatic reset function: After opening the gate, the system will be automatically locked if the system is not passed within the specified time, and the road travel time is adjustable

l Extended functions: counting function; display; direction indicator; top light; frame barrier

l Anti-rotation function: After the brake lever is rotated to a certain angle, the strong reverse rotation of the brake lever will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from moving backwards


Model CW803
Power supply AC220+10% 50HZ
Rate power Static power consumption <50W, dynamic power consumption <100W
Rotation direction: One-way or two-way
Traffic direction One-way or two-way traffic
Communication interface 232,RS485
Product components

1set of standard case, 1 set of 90 degree revolving door,

1 set of control panel, 1 set of movement,1set motor

Size L 1400*W 1450*H 1150 ,Chassis size:1400*280*1150
Barrier length 600mm, 120 degree barrier
Swing ≤600mm
Open door time Not adjustable
Number of passers: 20/min
Working environment temperature -25℃~+70℃,relative humidity ≤95%
Auto reset function After the gate is opened, the system will be automatically locked if the traffic is not passed within the specified time, and the travel limit time can be adjusted

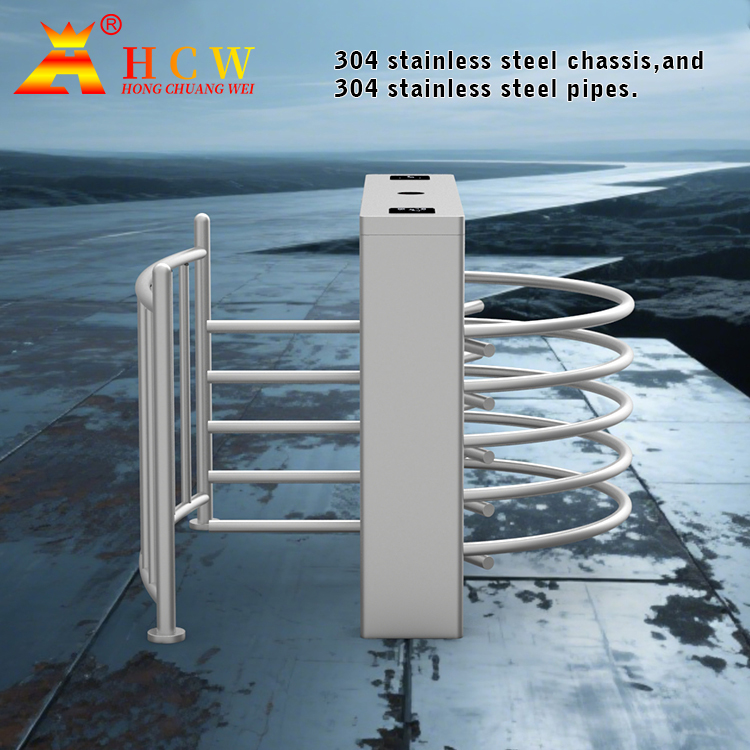

Chassis material Domestic standard 304 stainless steel, thickness: National standard 1.5mm
