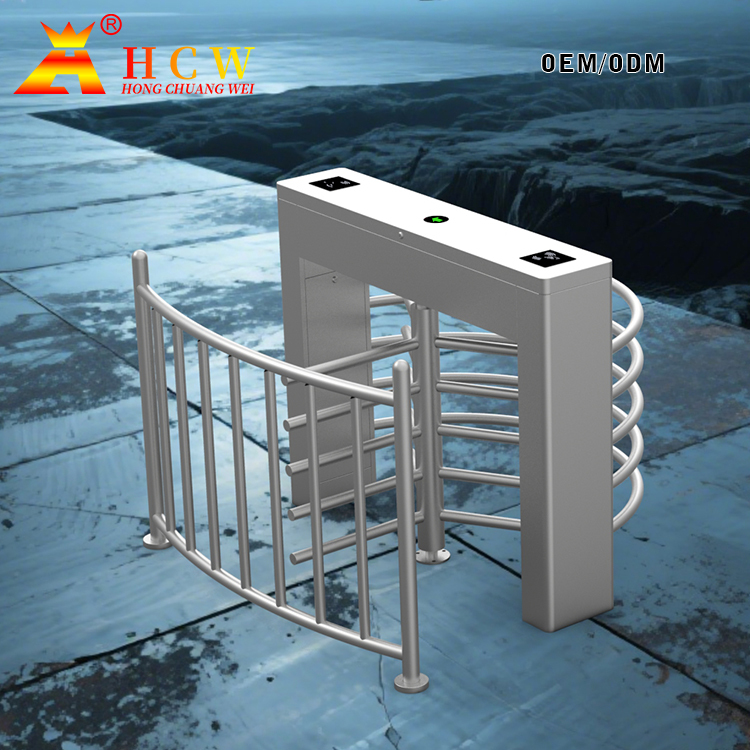

Swiping Card Half Height Turnstile SUS304 1.2mm Thickness Electromagnet Control

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW803
Minimum Order Quantity 1
Price USD700~800 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Product Size 1400*1450*1150mm Pass Width 600mm
Thickness 1.2mm Material SUS304
Communication Interface 232, RS485 Standard Traffic Direction One-way Or Two-way Traffic
Fence Length 600mm
High Light

1.2mm half height turnstile


Swiping card half height turnstile


electromagnet control Waist Height Turnstile

Leave a Message
Product Description

Swiping card half-height turnstile construction site real-name system

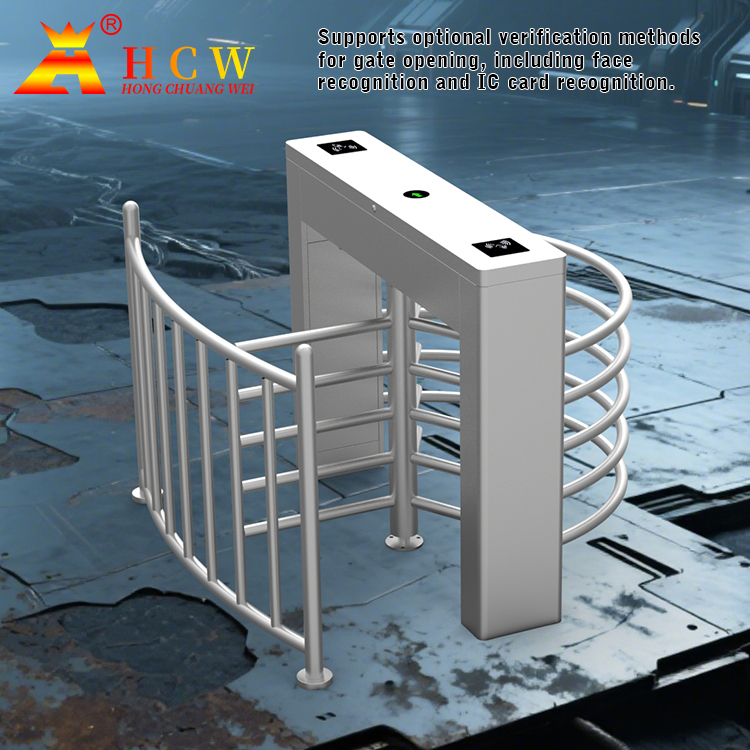

CW803 Intelligent safety half-height turnstile,Use electromagnet control, high life and high stability, long life and high stability, support various IC/ID readers, support various IC/ID readers, QR code readers, fingerprint readers, ID cards Readers, face recognition terminals, etc., are easy to interface with the access control system. Focus on the entrance and exit control of office buildings, CBD business centers, government and enterprise office buildings, and high-end shopping malls.



The mechanical system of the access gate is divided into two parts: the structural frame and the movement. The structural frame is used as a carrier, on which is installed a direction reading and writing device, and the movement is mainly composed of a motor, a main board, a frame, a fixed frame, a transmission shaft, a gate, a dust-proof and waterproof cover, a guardrail, etc.;

Passing direction: one-way, two-way (optional); there are a variety of working modes to choose from, you can read the card in both directions to limit the current, or you can read the card while the other direction is prohibited, while the card is read and the other direction is free to pass

Automatic reset function: After the gate is opened, the system will be automatically locked if there is no passage within the specified time, and the passage time can be adjusted;

Unique two-way anti-reverse function

Power-off free rotation function to meet fire protection requirements

Lighting prompt: traffic direction indication

Control board with counting function, LED digital display function (optional)

The control panel has a memory function, which can meet the needs of groups

Using the working principle of optical aperture, there is no delay requirement for the input control signal.

【technical parameter】

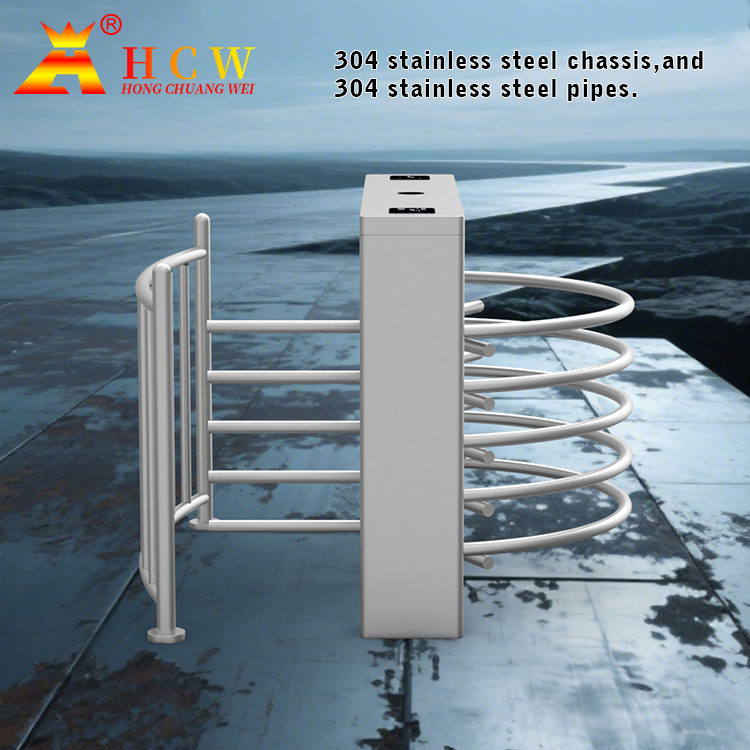

Chassis material: GB 304 stainless steel frame structure

Structure: frame structure / fine profile 304 stainless steel tube

Chassis size: 1600*280*1150 (mm)

Swing arm length: 510mm

Weight: about 200Kg/single

Swing arm transmission angle: 90 degrees

Swing direction: one-way or two-way

Power supply voltage: AC220±10% V, 50HZ

Drive motor: DC electromagnet 30W/24V

Input interface: relay switch signal or RS485 level signal

Traffic speed: about 40 people/min (normally open), 25-30 people/min (normally closed)

Gate opening and closing time: 1-2 seconds

Working environment: indoor, outdoor (with rain-proof frame)

Communication control interface: RS485 standard (customized)

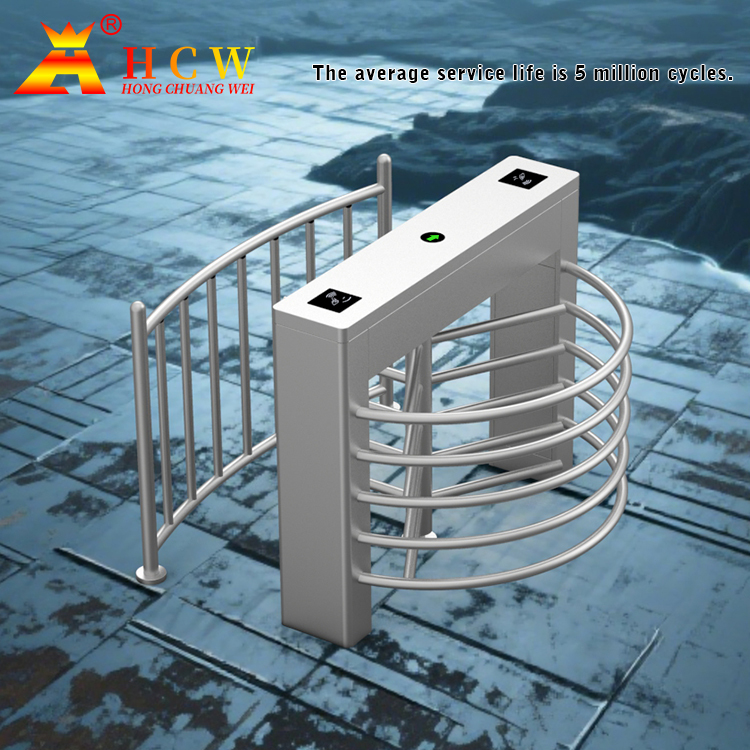

Normal service life: 5 million times

Humidity: 5%--90%

Proximity card reader size: with standard mounting bracket, or tailor-made

Opening time: 0.2 seconds

Passing speed: 30 people/min

Communication interface: standard RS485 interface, distance ≤1200 meters

Input interface: dry contact signal or +12V level signal or DC12V pulse signal with pulse width ≥100ms, drive current ≥10mA;

Working environment: indoor, outdoor (shade shed)

Temperature: -10℃~50℃

Relative humidity: ≤90%, non-condensing.


Model CW803
Power supply AC220+10% 50HZ
Rate power Static power consumption <50W, dynamic power consumption <100W
Rotation direction: One-way or two-way
Traffic direction One-way or two-way traffic
Communication interface 232,RS485
Product components

1set of standard case, 1 set of 90 degree revolving door,

1 set of control panel, 1 set of movement,1set motor

Size L 1400*W 1450*H 1150 ,Chassis size:1400*280*1150
Barrier length 600mm, 120 degree barrier
Swing ≤600mm
Open door time Not adjustable
Number of passers: 20/min
Working environment temperature -25℃~+70℃,relative humidity ≤95%
Auto reset function After the gate is opened, the system will be automatically locked if the traffic is not passed within the specified time, and the travel limit time can be adjusted
Chassis material Domestic standard 304 stainless steel, thickness: National standard 1.5mm
