Smart Access Control Full Height Turnstile Stainless Steel For Construction Site
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature | -25 To 70 Degrees | Humidity | <95%, Without Concretion |
|---|---|---|---|
| Passage Width | <=600mm | Dimension | 2400*1500*2300mm |
| Power Supply | AC220~240 V | Traffic Direction | One-way Or Two-way Traffic |
| Fence Length | 600mm | ||
| Highlight | Access Control Full Height Turnstile,Construction Site full height turnstile,600mm stainless steel turnstile gate |
||
Product Description

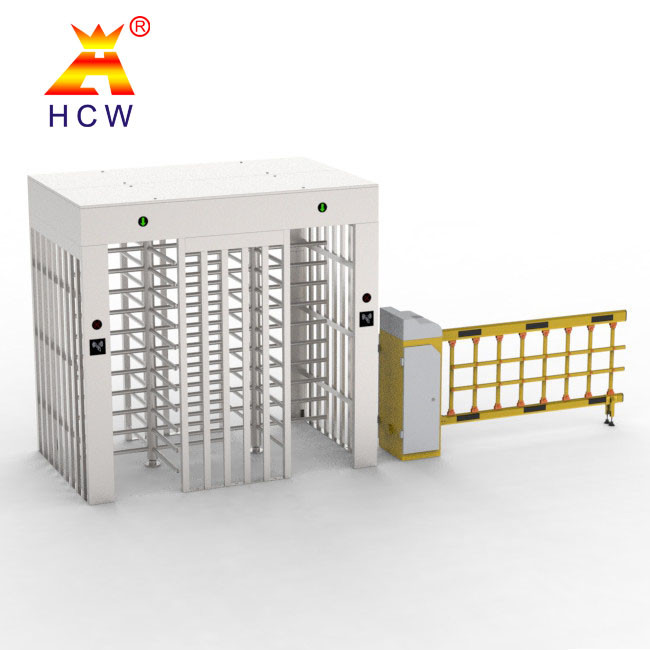

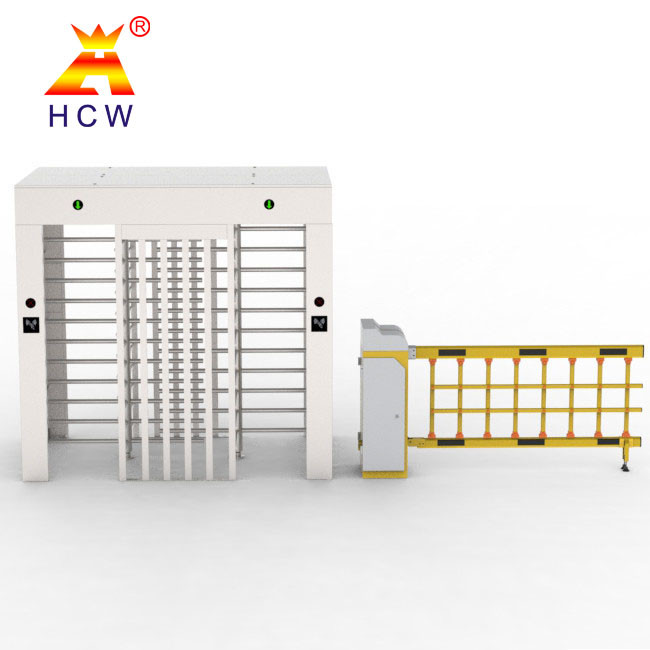

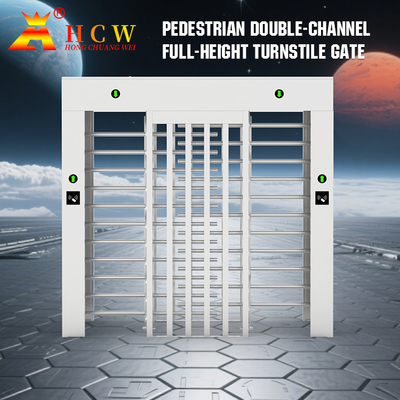

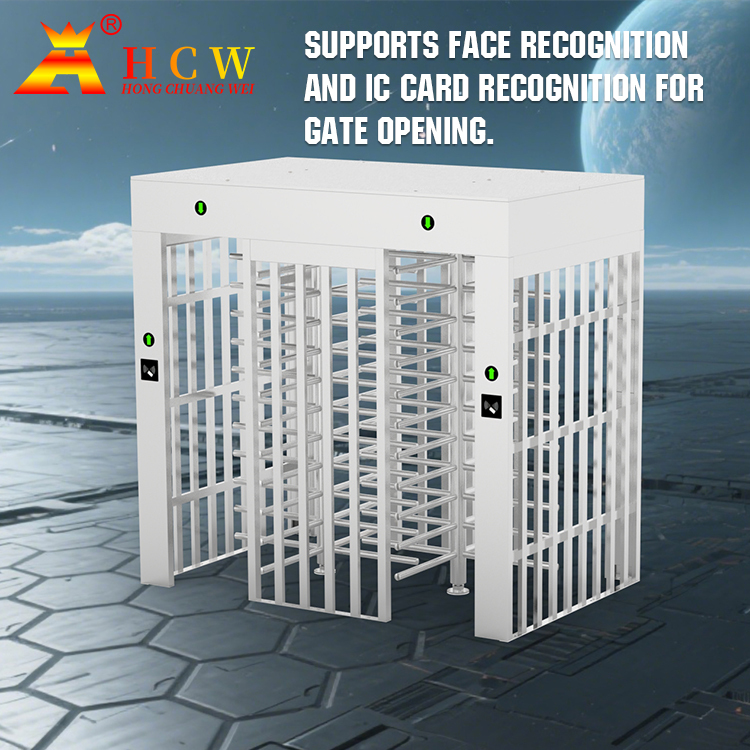

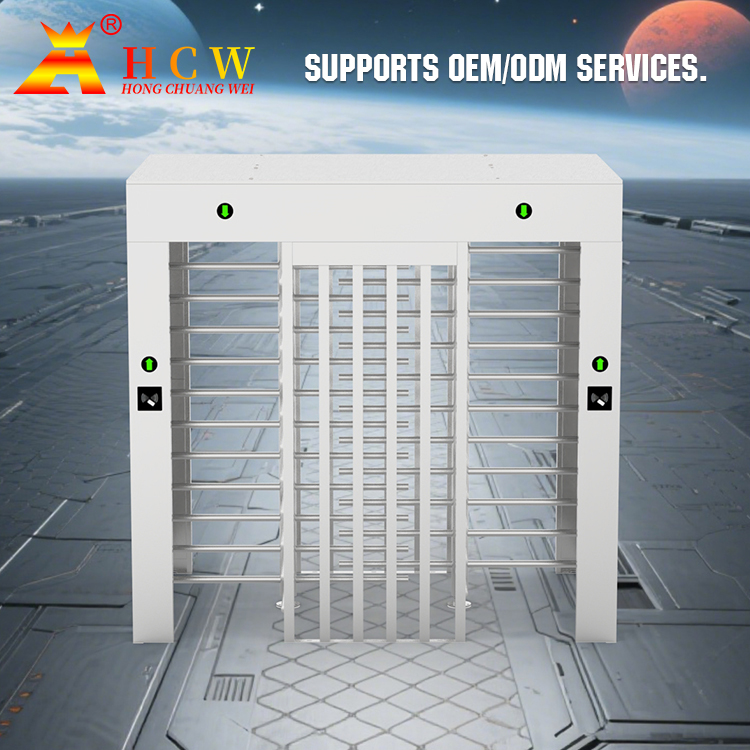

Smart construction site access control full-height turnstile stainless steel
Standard product features
1. With zero self-checking function, it is convenient for users to maintain and use
2. Through the built-in buttons on the main board, the running status of the programmable device
3. This full-height turnstile adopts the latest generation movement
4.90 degree mechanical anti-submarine back function
5. Anti-collision function, when there is no signal to open the brake, the brake lever is automatically locked
6. Free passage after power failure, in line with fire protection requirements
7. It has an automatic reset function. After the gate is opened, if the pedestrian does not pass within the specified time, the system will automatically cancel the pedestrian's permission to pass this time. The reset time is adjustable from 1s to 60s (the default time of the system is 10s), and the power is turned off. The rear channel is automatically opened (in compliance with fire protection requirements), and the power-on channel is automatically closed
8. The super bright direction indicator board indicates the traffic condition
9. The memory function of swiping the card to open the gate
The full height turnstile is designed with unique, strong, and durable mechanical to provide unsupervised access control for office or building which realize intelligent pedestrian control and management. .The impenetrable construction eliminates any un-authorized access to restricted areas. To gain authorized passage through the turnstile, the user must present a valid card for the access control system. Upon presentation of the valid card. The turnstile will unlock and allow the user to pass through the direction requested. And the turnstile can also work with push button, fingerprint and face recognition access control system.
| Technical parameter | |
| Product number | CW802-2 |
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working temperature | -25℃-70℃ |
| Relative humidity | 5%--90% |
| Motor type | 90° full-height movement |
| Rated power | Quiescent power consumption:＜50W,Dynamic power consumption:＜100W |
| Direction of passage | One-way or two-way |
| Input control signal | Switch quantity (standard configuration does not include RS232, 485) |
| Running speed | 20 people/minute |
| Opening time | Non-adjustable |
| Number of trouble-free runs | 5 million times |
| Channel width | 600mm |
| Product Size | 2400*1500*2300mm |

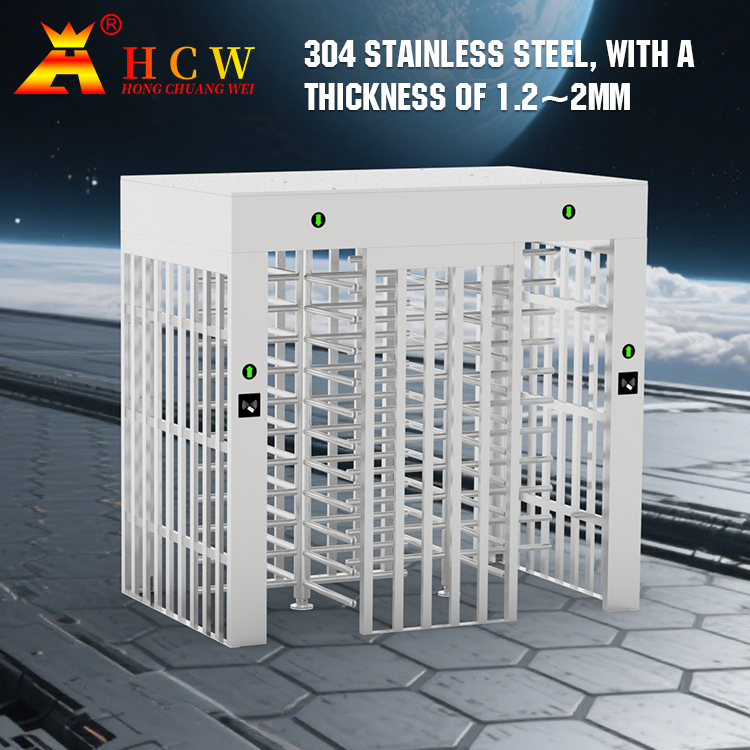

| Channel frame | 1.2~2.0 thick 304 stainless steel(customization) |
| Package weight | About 250KG |
