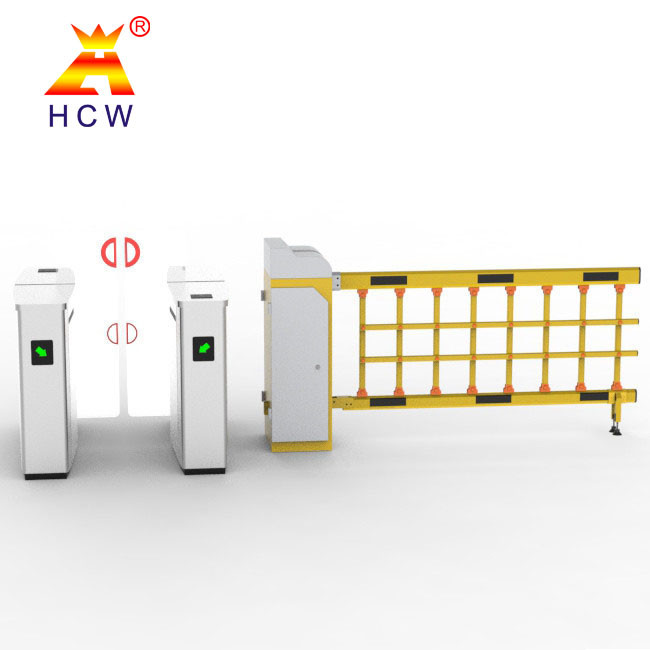

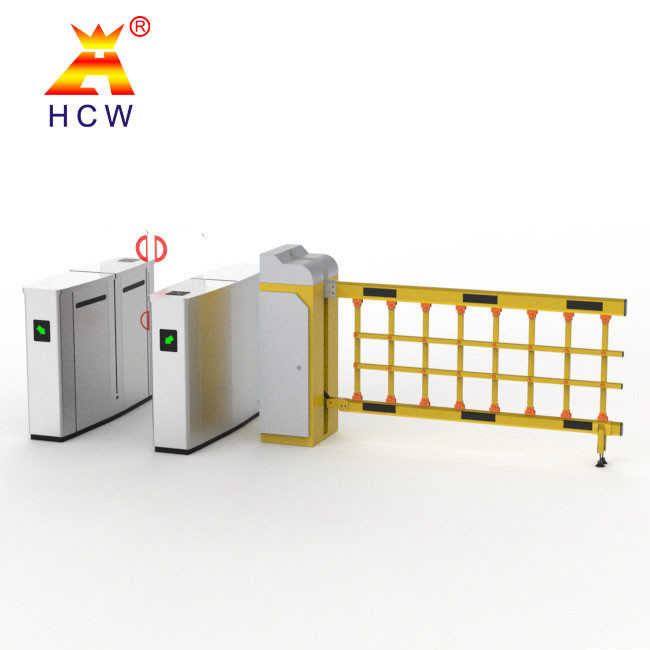

35 People / Minute Sliding Turnstile Barrier Gate Anti Shock Fault Self Checking

Factory production customization made sliding door turnstile gate

Slide gate functions and parameters

●It has the functions of fault self-checking and alarm prompting, which is convenient for users to maintain and use;
●Through the built-in small button on the main control board, the running status of the programmable device;
●Mechanical structure, induction double anti-pinch function, when the telescopic arm encounters resistance during the reset process, it will automatically stop or the motor will stop working within the default time, and reset again after the default delay (until reset), and the force is very small ( ≤2Kg);
Sound and light alarm function: including illegal intrusion and trailing alarm;
●Anti-shock function, the telescopic arm automatically locks when it does not receive the opening signal;
●Telescopic arm synchronization function;
●With automatic reset function, after the gate is opened, if there is no passage within the specified time, the system will automatically cancel the user's permission to pass this time. The standard is to automatically reset within 5 seconds after opening;
The channel is automatically opened after power failure, and automatically closed when powered on;
●It can be connected with a variety of card reading devices to receive relay switch signals;
●One-way or two-way control personnel entry and exit;
●It can realize remote control and management directly through the management computer;
●Extensible function: counting function; chassis lengthening, telescopic arm material selection.

technical parameter :
◇Case material: domestic standard (No. 304) stainless steel
◇ Chassis size: 1400*335*1000 (mm)

◇Telescopic boom length: 260mm
◇Maximum channel width: 600mm
◇Weight: Gross weight 72Kg
◇Power supply voltage: AC220±10% V, 50HZ
◇Drive motor: DC brush motor (24V)
◇Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width>100ms, drive current>10mA
◇Normal service life: 3 million times
◇ Communication interface: TCP/IP communication
◇Passing speed: 30-40 people/min
◇Gate opening and closing time: 0.2 seconds
◇ Time required to enter the traffic state after power on: 3 seconds
◇Auto reset time after failure: 10 seconds
◇Working environment: indoor, outdoor (shady shed)
◇Temperature: -15℃—60℃ Relative humidity: ≤90%, no condensation.

Structure and configuration:

【Structure and Configuration】
◇Standard case
◇Telescopic boom
◇Main control panel
◇Transformer
◇Motor
◇Movement and transmission part
◇Infrared contrast
◇Alarm (light)
◇Direction board
【Scope of application】
◎Management of import and export channels for stations, wharves, tourist attractions
◎Management of ticket inspection channels for exhibitions, swimming pools, etc.
◎Enterprise and institution import and export attendance, access control, consumption management
◎Special channel control
