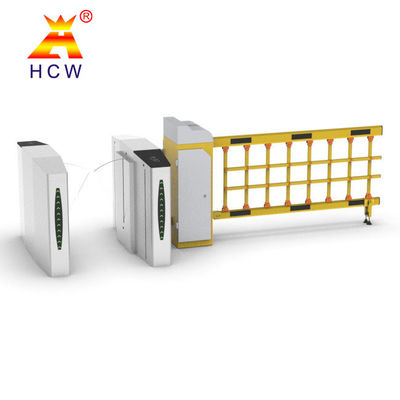

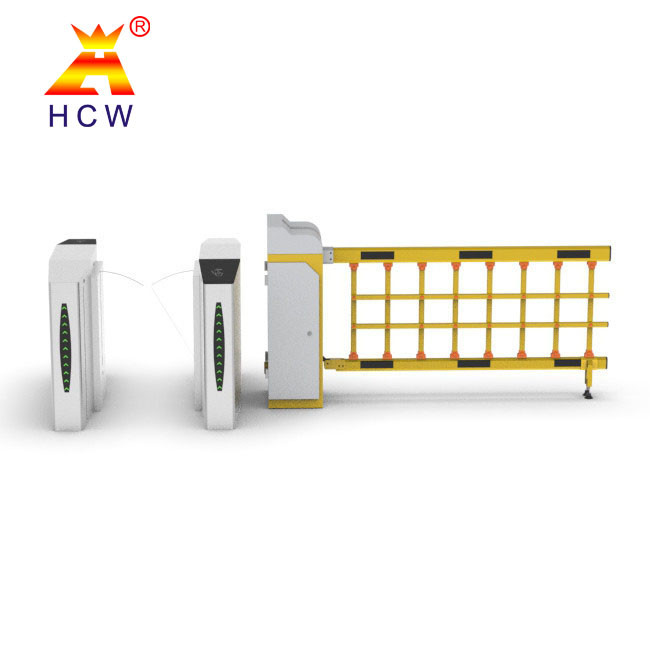

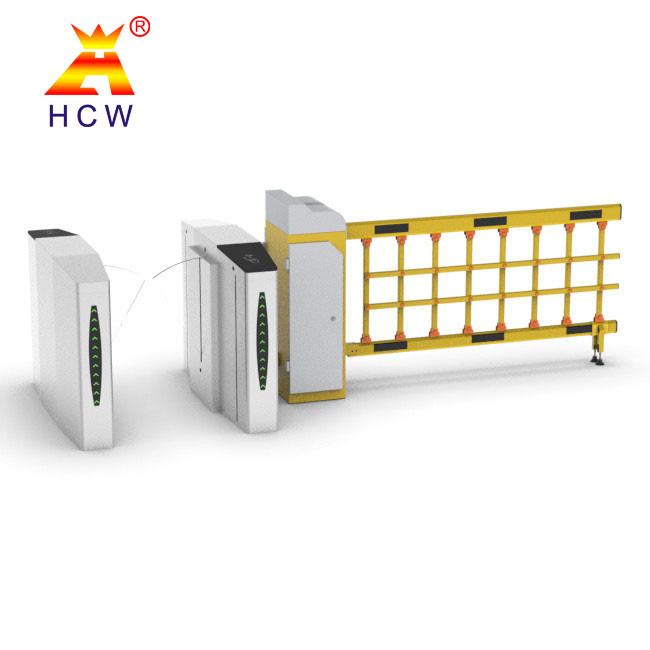

Automatic RFID Turnstile Gate Pedestrian Temperature Measurement Gate DC Motor DC24V

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW501
Minimum Order Quantity 10
Price USD300~500 per piece
Packaging Details wood cases
Delivery Time 5-8 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Product Model CW501 Power Supply Voltage AC230V
Working Environment Temperature -21℃~77℃ Relative Humidity 90%
IP Protection Level 65 Rated Power 25W
Input Control Signal Switch Quantity Standard Configuration Does Not Include RS232, 485 Running Speed (XX People/minute) 35 People/minute
High Light

Automatic RFID Turnstile Gate


Temperature Measurement RFID Turnstile Gate


DC24V temperature measurement gate

Leave a Message
Product Description

RFID automatic door swing gate pedestrian temperature measurement machine


Power supply voltage: AC220±10%V, 50HZ; Drive motor: DC motor DC24V;
Working environment: -25℃-+70℃ Passing speed: high 20--40 people/min;
Switching time: 0.2 seconds; Relative temperature: 5%--90% without condensation;
Gate size: 1400*290*1000mm; Channel width: 600MM;
No failure times: more than 1.5 million times; time required to enter the traffic state after power-on: 1~3 seconds
Waterproof and dustproof: the grade is above IP32; working noise: below 55 decibels;
Fault self-test: automatic reset time after fault: 6~10 seconds
Chassis material: 304 stainless steel, thickness 1.2MM;
Input interface: relay switch signal or 12V level signal or 12V pulse signal with pulse width>100ms, drive current>10mA


Flap Barrier Advantage:

1. Problem-self-checking function.
2. Arm Turning: Bi-direction
3. When power off, arm open automatically and power on again, arm will be held automatically.
4. When valid card read and passenger passed, arm can be delayed to close from 1-60s which can be
set in the control panel.
5. Auto-reposition function: After card read, passenger doesn't pass within regulated time, turnstile
will cancel order automatically. And the regulated time can be set by managers.
6. Anti-rush function: if there is no open signal, arm will be holding tightly.
7. Stable running with little noise.



Infrared radio 5 pairs
trouble-free operation 2 million times
average life span 3 million times
Channel width 850mm
Door wing material Soft wing sponge
Product size length 1200mm x width 300mm x height 990 mm
Channel frame 304 stainless steel
Packing weight bout 65 KG (single side lane)
