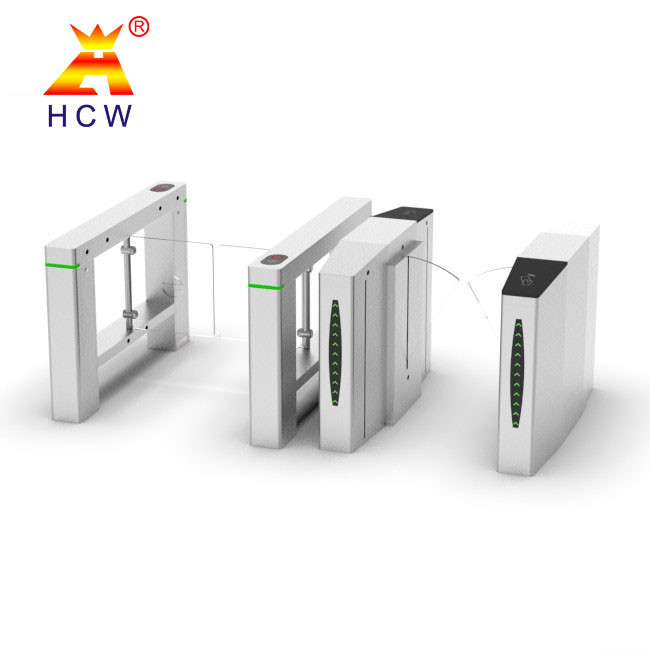

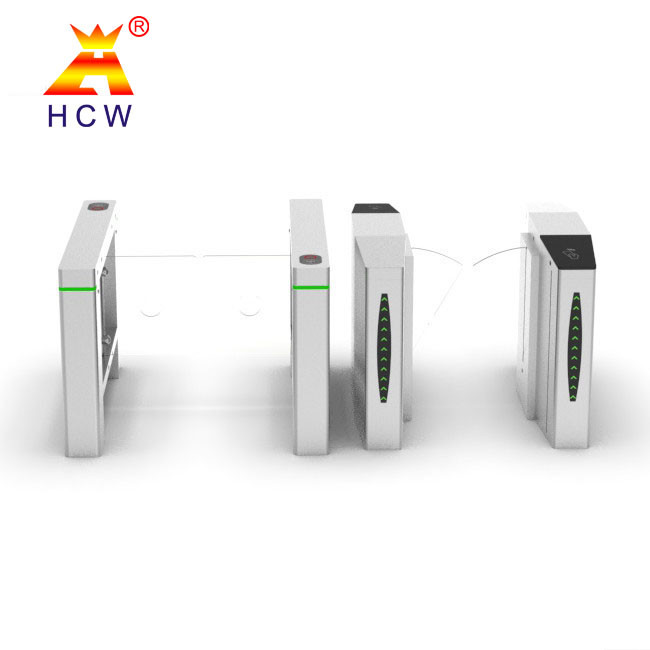

Smart RFID Card Flap Turnstile Gate Pedestrian Access Control For Gym

Place of Origin China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW507
Minimum Order Quantity 2
Price USD600~850 per piece
Packaging Details wood packing
Delivery Time 7-10 work days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
NAME High Speed Gate Power Supply Voltage AC220V±10%,50±10Hz
Motor Power DC Motor Power-on System Startup Time 3s
Open/close Time 1s Lane Width 600mm
Input Control Signal Switch Standard Configuration Without RS232, 485 Running Speed (XX People/minute) 40 People/min
High Light

RFID Card Flap Turnstile Gate

,

Gym Flap Turnstile Gate

,

Flap pedestrian security turnstiles

Leave a Message
Product Description

Smart Entrance RFID Card Solutions Pedestrian Access Control Barrier Flap Turnstile Gate for gym building school subway

Description

Function:

1. working method can be set by the buttons on the main panel 2. This model is double wing flap gate, low noise, smaller casing, save space 3. Anti-pinch by mechanism and sensor If there is block during return of gate, motor stops working automatically. Reset again after a default delay, the force 2Kg. 4.Anti-illegal in, anti-intrusion, auto close for reverse direction. 5. Anti-collision, gate closes when no valid signal is given. 6. Gates can be synchronous 7.Auto-reset. If not go through in a preset time, pass right would be cancelled automatically. (1-60s adjustable), default time is 10s. 8. Reset function by photocells,Anti-pinch function by photocells, ( 3 or 5 pairs sensors) 9. Compatible with Access control system, consumption system, ESD system, E-ticket system and so on. 10. One way or two way control 11 Unit can be controlled and administered by remote control


Extensible functions:
1. LED counter display 2. Casing and gate size can be lengthened 3.Logic judgment by photocells (8 pair or 10 pairs) 4. Speech reminder 5.normal close or normal open adjustable 6. Light, sound alarm

Application:
Intelligent flap gate ---can be compatible with IC card , ID card ,barcode card , fingerprint reading card recognition device used for staff, provide civilized , orderly access methods; effectively manage the access of staff . Can be widely used in the station, wharf subway , factories, office building , hotel , clubs, intelligent community , enterprises and institution that need intelligent access management.




Infrared radio

5 pairs

trouble-free operation

2 million times

average life span

3 million times

Channel width

850mm

Door wing material

Plexiglass

Product size

length 1200mm x width 300mm x height 990 mm

Channel frame

304 stainless steel

Packing weight

bout 65 KG (single side lane)
