Baffle Flap Barrier Turnstile QR Code Face Recognition Waist Height Turnstile

Place of Origin Guangdong, China
Brand Name Hongchuangwei
Certification CE UL
Model Number CW506
Minimum Order Quantity 2
Price USD749~799 per piece
Packaging Details wood cases
Delivery Time 6-9 work days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Item Name Security Flap Turnstile Gate Power Supply AC220V±10%,50±10Hz
Motor Power DC Motor Relative Humidity 95%
IP Protection Level 45 Lane Width 90cm
Open/close Time 1s Running Speed (XX People/minute) 30-40 People/min
High Light

Baffle Flap Barrier Turnstile


QR Code Flap Barrier Turnstile


Face Recognition Waist Height Turnstile

Leave a Message
Product Description

Security Access Control System Waist Height QR Code Face Recognition Baffle Flap Barrier Turnstile Gate



1.Power supply:AC220V±10%,50±10Hz
2.Communication interface: switch value, optional,rs232/485
3.pass direction:unidirectional or bidirectional
4.Motor power: DC motor
5.working environment:-25℃ to 70℃
6.Relative humidity,≤90% no condensation time:1s
8.Power-on system startup time:3s
9.Number of passers:40 persons/minute
10.lane width:900mm
11.Chassis material: standard 304 stainless steel.
12.The appearance of the chassis can be customized according to requirements


1.Wider lane ,ideal for wheelchair/ADA passthru.
2.Adopt Brush-less motor, the optical barrier turnstiles have a longer lifespan.
3.Adopt control technology, which has stronger function and better expandability.
4.Flow rate more fast,and switching speed up to less than or equal to 5s
5.Low noise, sound can be achieved ≤ 20 decibels.
6.Running more smooth, that is no shaking, no shake, no echo.
7.Flap-In-Flap Flap Barrier Gate Main Functions and Features:
8.With auto failure checking and Logical judgment function, make the turnstile access easy for maintenance and operation.
9.Flexible to set the performance, up to dozens of species, and easy to expand.
10.Double protections of infrared and mechanical anti-pinch function.the turnstile will automatically stop or rebound, sending out alarm signal at the same time when a sudden barrier force is applied during system reset.
11.Multi-modes alarm function, including illegal intrusion, anti-intrusion, anti-trailing, overtime alarm, etc.
12.Anti-rush function, without receiving the open signal, turnstile arm locks automatically.
13.Anti-Reverse function, when somebody attempts to passing reversely, the barrier arm will quickly shut at the same time alarms.
14.Flexible access instruction function, high brightness light, and its humanized prompt function make the passageway more characteristic.
Normal open and normal close can be controlled by code-dialing or external
15.Automatic detection and reset function: System will automatically cancel the access right when detected no objects passing within the prescribed period of time (adjustable).
16.Arm auto normal open when power is off(free passing), and meet the requirements of the emergency.
17.Can be linked with a variety of control system, receiving the signal of the relay switch.
18.Muti Passing modes: Can set uni-direction or bi-direction passing at will.
19.Strong environment adapting ability, can be installed in any harsh environments, with strong self-protecting ability. such as weak current, Strong light exposure, for rain and snow weather, typhoon or other environmental change.


Infrared radio 5 pairs
trouble-free operation 2 million times
average life span 3 million times
Channel width 850mm
Door wing material soft double wings
Product size length 1200mm x width 300mm x height 990 mm
Channel frame 304 stainless steel
Packing weight bout 65 KG (single side lane)

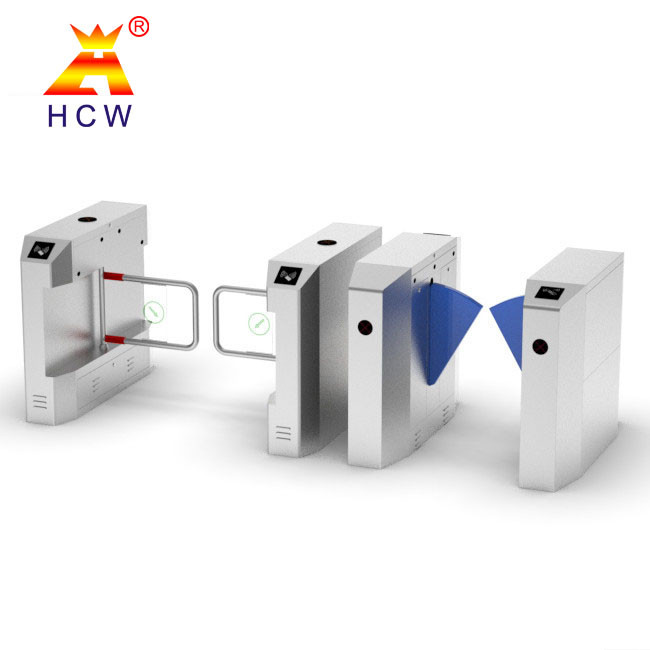

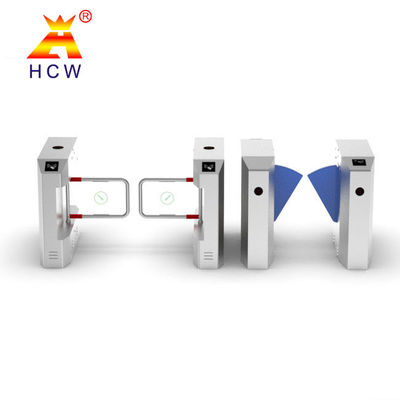

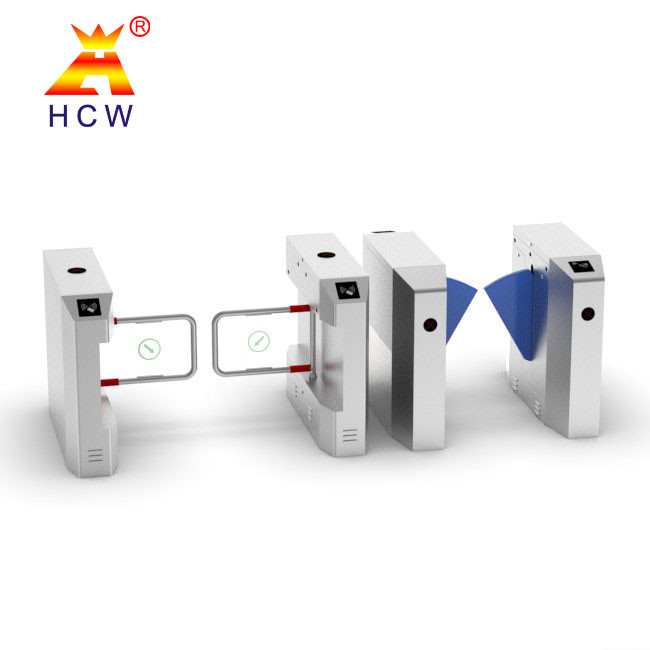

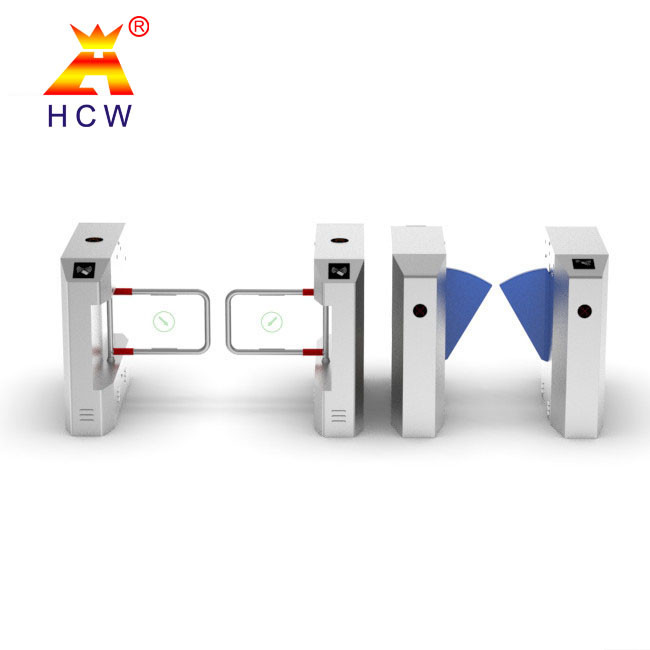

Baffle Flap Barrier Turnstile QR Code Face Recognition Waist Height Turnstile 0Baffle Flap Barrier Turnstile QR Code Face Recognition Waist Height Turnstile 1Baffle Flap Barrier Turnstile QR Code Face Recognition Waist Height Turnstile 2



1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.

2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.

3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.

4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
