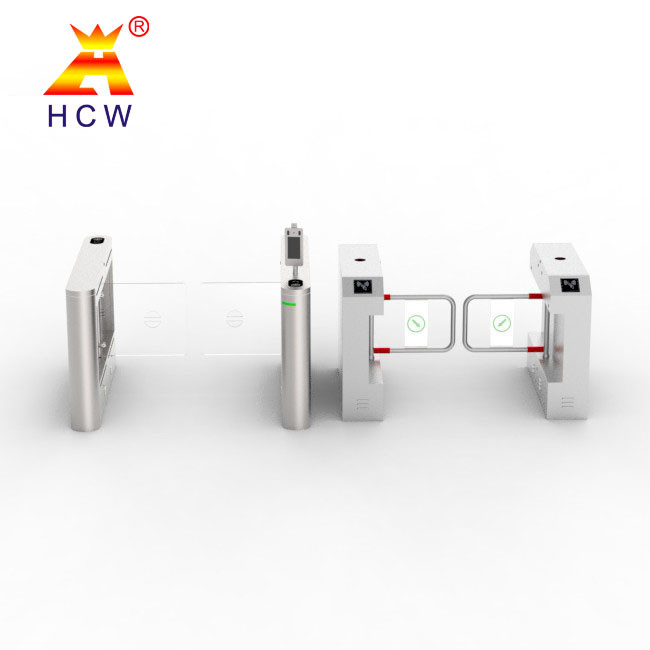

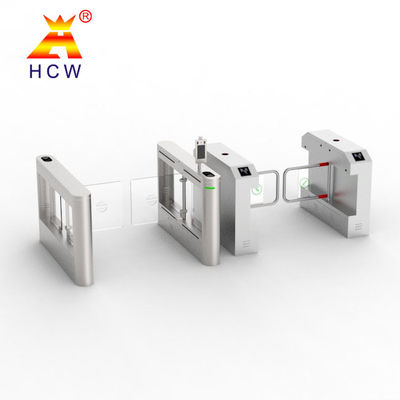

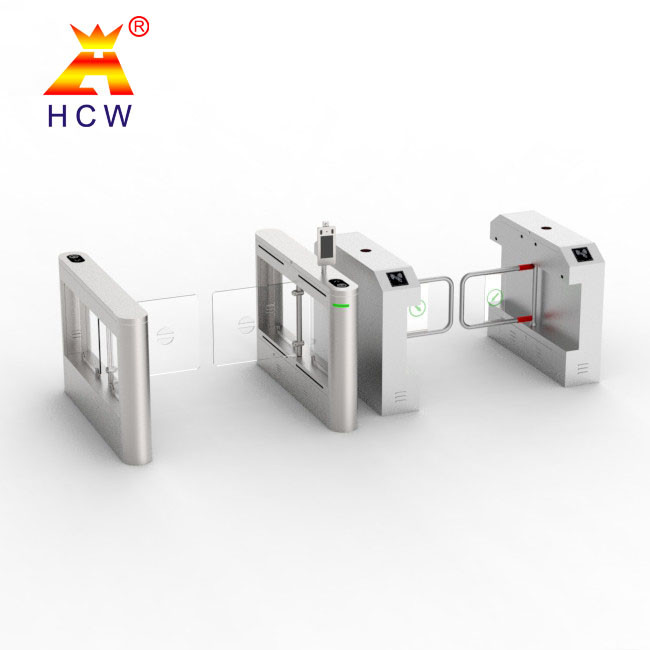

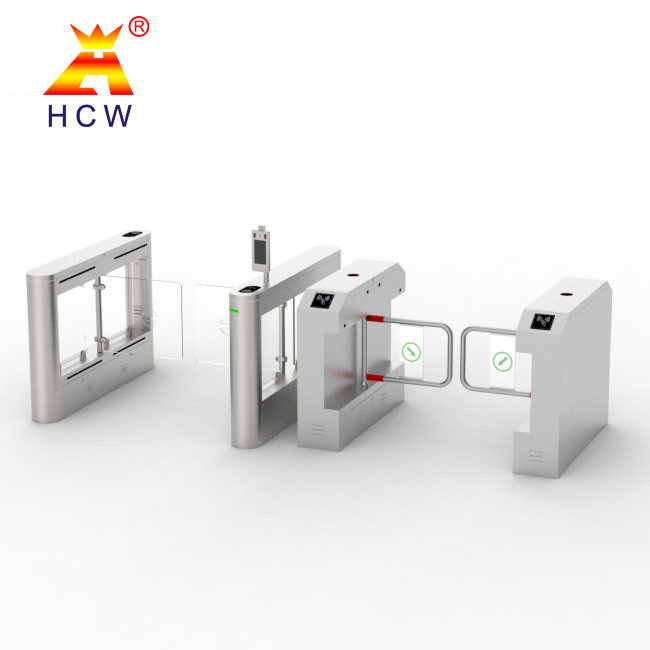

Mechanical Swing Barrier Turnstile FRID Card Access Control 304 Stainless Steel
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Name | Swing Turnstile Gates | Material | Stainless Steel |
|---|---|---|---|
| Power Supply | AC220V±10%,50±10Hz | Working Environment | -25℃ To 70℃ |
| Open/ Close Time | 1s | Power-on System Startup Time | 3 Second |
| Number Of Passers | 40 Persons/minute | Normal Service Life | 4 Million Times |
| High Light | 304 swing barrier turnstile,FRID Card swing barrier turnstile,Mechanical Stainless Steel Turnstiles |
||
Product Description
Mechanical FRID Card Access Control 304 Stainless Steel Security Swing Turnstile Barrier Gate
Features:
♤ Single and double movement;
♤ Digital movement;
♤ Anti-collision swing gate;
♤ Indoor and outdoor use;
♤ DC brushless series;
♤ SUS304 stainless steel chassis 1.2mm;
♤ Grooving, wire drawing;
♤ Hall digital positioning, return in case of resistance, Horizontal movement;
♤ Stainless steel 304 or acrylic swing arm;
♤ Suitable for outdoor use;
♤ Passable electric vehicles;
On-site installation and commissioning of equipment
6.1 On-site installation of equipment
1) Count the accessories according to the packing list
2) Determine the installation location of each gate according to the specific system composition, use site and the selected model.
3) As shown in the installation requirements as shown in the figure below, determine the installation hole position, and pre-process 4 M12 anchor bolts or 4 M12 expansion bolts at the installation position.
4) Put the 3/4" PVC pipes of the strong cables and weak current cables respectively through them, and bury them in the corresponding positions with cement.
1.Power supply:AC220V±10%,50±10Hz
2.Input interface: (passive node information number or pulse width)
3.communication interface:switching,RS232 RS485 optional
4.pass direction: one-way or two-way pass
5.working environment:-25℃ to 70℃
6.Relative humidity,≤90% no condensation
7.open/ close time: 1s
8.Power-on system startup time: 3 second
9.Number of passers:40 persons/minute
10.Normal service life: 4 million times
11.Chassis material: standard 304 stainless steel
12.The shape of the chassis can be customized according to requirements
|
Indicator
|
Green means passage
|
|
Power supply for core
|
AC100~220V 50/60Hz
|
|
Operational voltage
|
DC 24V ±5％
|
|
Voltage of indicator
|
DC12V ±5％(standard)
|
|
Power consumption
|
30W
|
|
Working environment
|
Indoors or outdoors(outdoor is optional)
|
