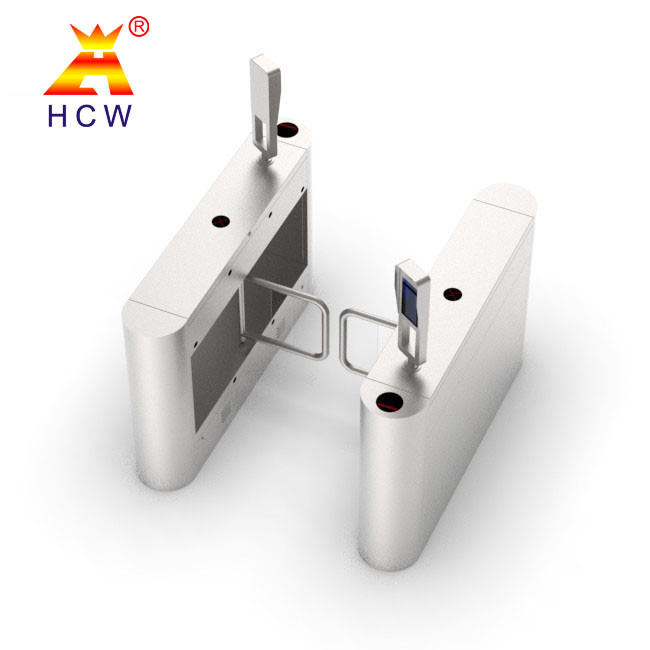

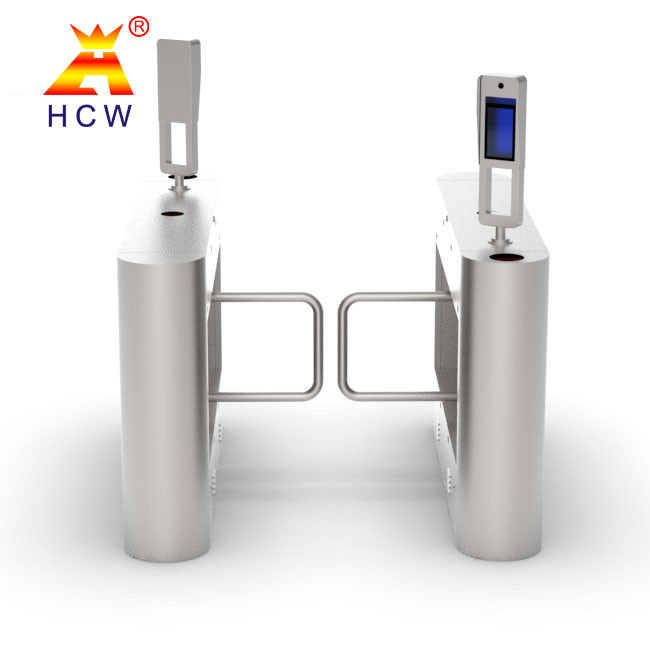

0.98m Height Face Recognition Turnstile Entrance Barrier Systems 50/60Hz

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW426
Minimum Order Quantity 10 piece
Price USD300~500 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Name Swing Turnstile Material 304 Stainless Steel
Case Thickness 0.98mm Top Cover Thickness 1.18mm
Lane Width 58cm Pass Direction Bidirectional
Waterproof IP47 Outdoor Use Support
High Light

0.98m Face Recognition Turnstile

,

60Hz Face Recognition Turnstile

,

0.98m entrance barrier systems

Leave a Message
Product Description

0.98m Height Face Recognition Turnstile Entrance Barrier Systems 50/60Hz 00.98m height face recognition turnstile waterproof outdoor use





1. It has stable and reliable mechanical locking device, precise movement and turntable combination structure with special process;
2. With two-way traffic function, the steering lever is divided into two directions and one direction;
3. It has the function of power-off and off-bar. In case of emergency, the gate will automatically drop the pole, and pedestrians can pass quickly to meet the fire-fighting channel requirements;
4. After the pedestrian reads the valid card, if the system does not pass within the specified time of the system, the system will automatically cancel the pedestrian access right;
5. An external two-way arrow indicator can be connected to indicate the traffic status, and the traffic can be passed or prohibited.
6. An external bidirectional flow counter can be connected to display the number of people in the traffic direction;
7. The control panel has a dial switch, which can adjust the transit delay time by algorithm, and can also be adjusted into a memory mode. For example, brush five effective cards and pass five people;
8. The anti-reverse device function prevents the rotating unit from rotating opposite to the original direction;
9. Unified standard external electrical interface, can be connected with a variety of card readers, and can be remotely controlled and managed through a management computer;
The entire system runs smoothly with low noise



1. Rainproof housing, 304 or 316 stainless steel or cold rolling steel

2. Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost.

3. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position.

4. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile.

5. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering.

6. Innovative and unique mounting surface ensures simple and convenient installation for system integrator.

7. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed)

8. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically.

9. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.



Indicator
Green means passage
Power supply for core
AC100~220V 50/60Hz
Operational voltage
DC 24V ±5%
Voltage of indicator
DC12V ±5%(standard)
Power consumption
30W
Working environment
Indoors or outdoors(outdoor is optional)
