55cm Lane Width Controlled Access Turnstiles SS304 Facial Recognition Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW401-2
Minimum Order Quantity 10 piece
Price USD300~680 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Name Swing Turnstile Material 304 Stainless Steel
Case Thickness 0.96mm Top Cover Thickness 1.16mm
Lane Width 56cm Pass Direction Bidirectional
Waterproof IP66 Outdoor Use Support
High Light

55cm Lane controlled access turnstiles


SS304 Facial Recognition Gate


SS304 controlled access turnstiles

Leave a Message
Product Description

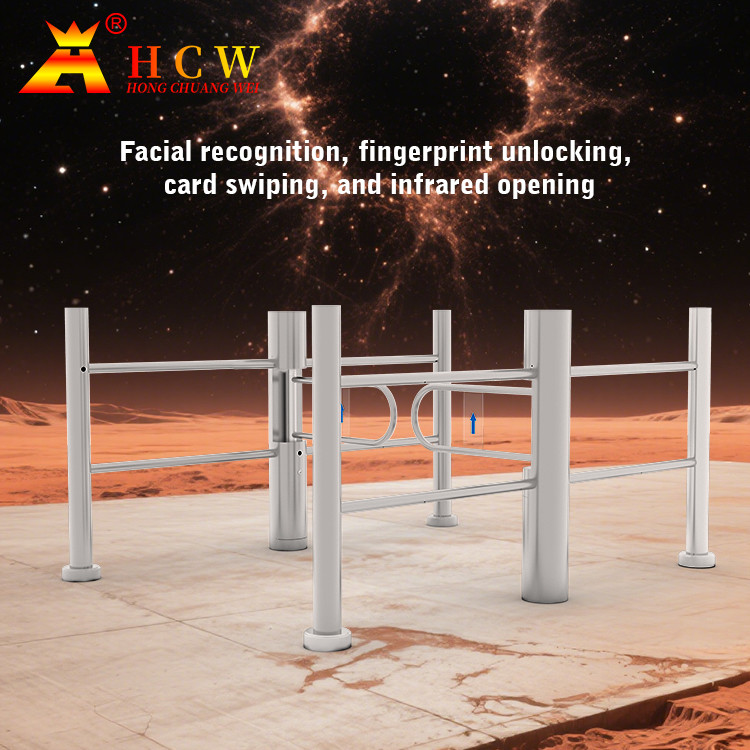

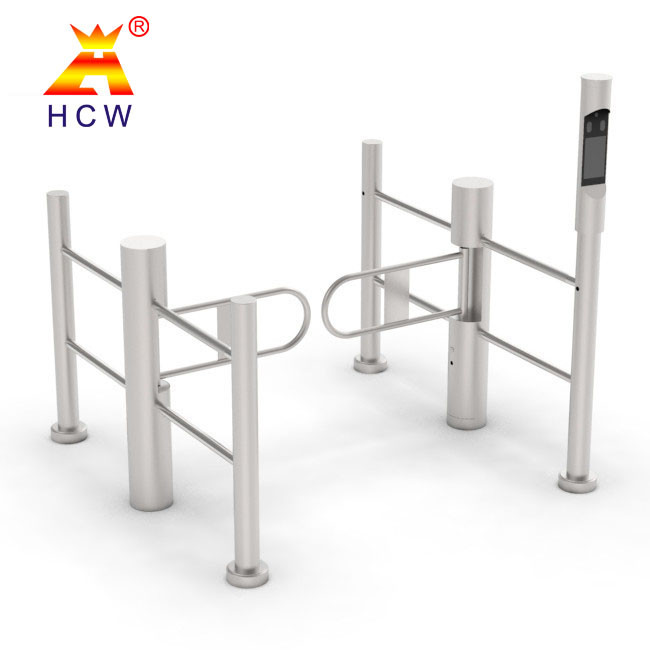

55cm Lane Width Controlled Access Turnstiles SS304 Facial Recognition Gate


Product Introduction:

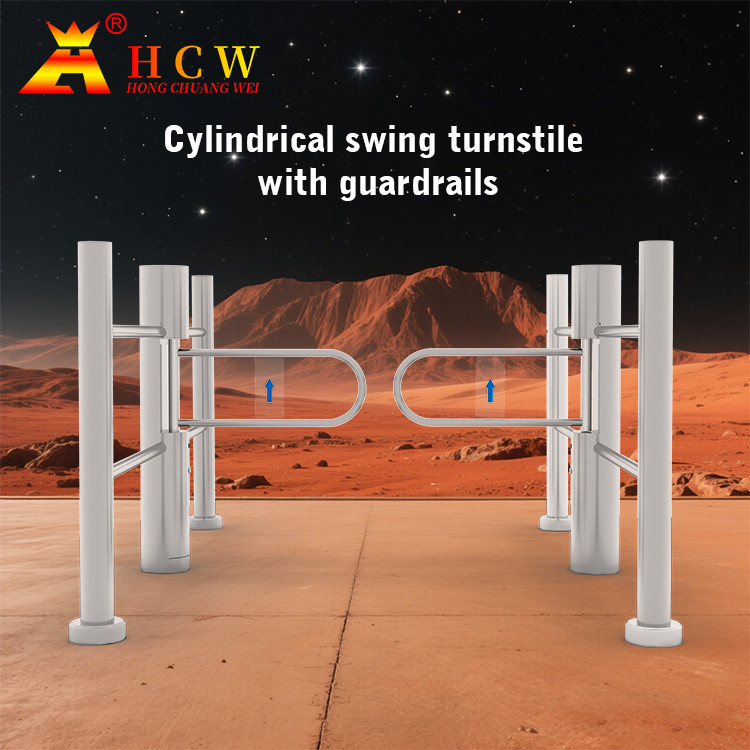

CW401-2 high-end speed pass anti-collision cylindrical swing gate, using STC CPU chip, brushless motor, 1 pair of infrared detection sensors, long life and high stability, supporting various IC/ID card readers, barcode readers, ID card readers Etc., easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers, government and enterprise office buildings, high-end residential areas, kindergartens, etc.


  • Only authorized personnel can pass
  • Normal open and normally closed modes can be flexibly selected, and two-way passing can be used. The opening and closing speed of the door wing can also be set according to the flow of people to improve the efficiency of the equipment
  • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time, and the sound and light alarm will be issued at the same time
  • Anti-shock function, when the door opening signal is not received, the swing arm is automatically locked, and the maximum impact force is 120Nm
  • With functions of self-detection, self-diagnosis, and automatic alarm; anti-pinch alarm
  • Remote control management function
  • It can be run online or offline
  • When the power is cut off, the swing arm automatically opens, the passage is in a smooth state, and personnel can pass freely to prevent panic
  • With automatic reset function, after opening the door, the system will automatically cancel the user's permission for this pass if the user does not pass within the specified time,and you can set the pass time


Technical parameter
Product Model CW401-2
Voltage AC220V±10%,50HZ±10% HZ
Working temperature -25℃-70℃
Relative humidity ≤90% No condensation
Motor Brushless Motor
Rated power 40W
Input control signal Switch value (standard configuration does not include RS232, RS485)
Running speed 30~40 Person/minute
Infrared beam 1 Pair
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600mm~1600mm
Door wing material ¢25mm Stainless steel
Product Size ¢200mm x height 1050 mm

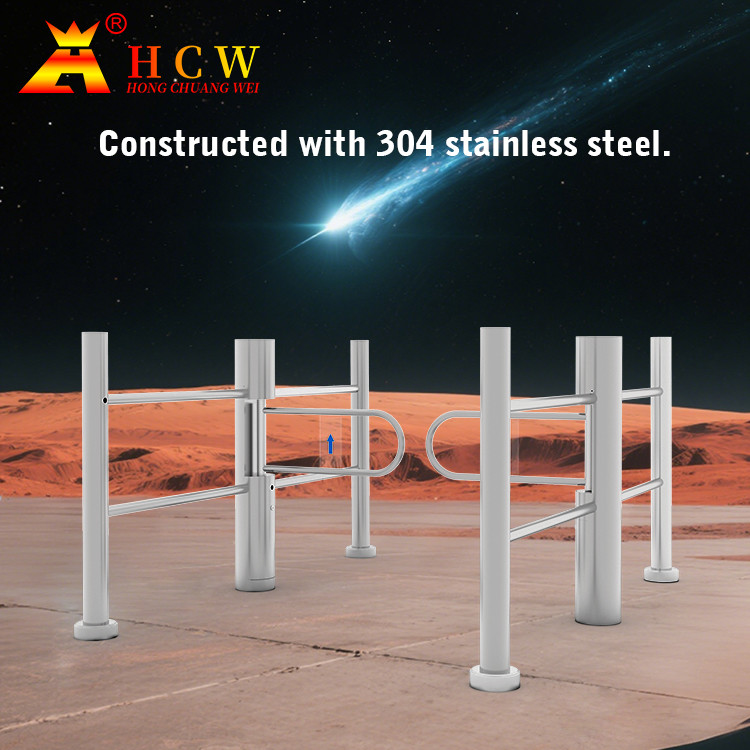

Channel frame National standard 1.5mm 304 stainless steel
Package weight About 25 KG (single side road)
