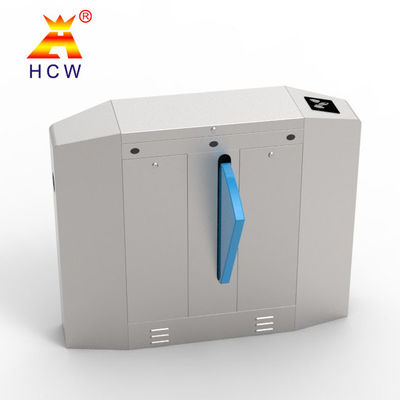

Outdoor Retractable Flap Barrier Turnstile Stainless Steel 40 Persons / Min

Place of Origin China
Brand Name Hongchuangwei
Certification CE
Model Number CW501
Minimum Order Quantity 2
Price USD299-499 per piece
Packaging Details wood cases/carton
Delivery Time 6-10 work days
Payment Terms T/T
Supply Ability 1000 pieces weekly

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Model CW501 Item Name Stainless Steel Flap Barrier Gate
Power Supply AC220V-230V Material Stainless Steel
Number Of Passers 40-55 Persons/minute Lane Width 600mm
Customization Acceptable
High Light

Flap Barrier Turnstile Retractable


Stainless Steel Flap Barrier Turnstile


Outdoor Retractable Flap Barrier

Leave a Message
Product Description

Flap Barrier Turnstile Control Security Automation

1. Public Places: Subway, Airports, Stations,Library, Bookstores, Parks, Exhibition halls, Stadium,
Museums,Apartments,Residence Area, Offices,Commercial buildings.
2. Entertainment Places: Movie theaters, Fitness halls, Country clubs, Fairground, Clubs, Swimming Hall,
Fitness Gym.
3. Business Organizations: Hotel,Factory,Bank,Prison,Hospital,School, Enterprise’s Entrance and Exit


Hongpai upgraded Full automatic Flap Turnstile/Flap gate barrier is to make up the existing defects caused by general series in the market, It is one of Hongpai upgraded Access control product with the high-tech patent. It adopts the new industrial-grade circuit and ARM control system and the unique mechanical design, combined with the characteristic of brush-less motor drive technology and accurate limit of technology, those make the product incomparable and revolutionary improved both in performance, lifespan, speed, noise, Smoothness and etc.

Standard Flap Barrier Gate Unique Features:

  • Adopt Brush-less motor, it has a longer lifespan.
  • Adopt control technology, which has stronger function and better expandability.
  • Flow rate more fast,and switching speed up to less than or equal to 5s
  • Low noise, sound can be achieved ≤ 20 decibels.
  • Running more smooth, that is no shaking, no shake, no echo.
  • mechanism flap barrier turnstile gate use for school with access control
  • Flap barrier turnstile series with innovative design, it extensive use in metro, school, office, scenic, gym, factory, residential, supermarket etc.. It can support RFID, fingerprint, facial verification mode. Combine with infrared detector, temperature controller, can widely used in all kind of different environment.


Standard Flap Barrier Gate Expansible Functions:

  • Auto bidirectional counter: Automatically count the number present(customized)
  • Voice prompt(customized)
  • Barrier arm material and color can be customized
  • metro turnstile

Technical parameter:


Product number CW501
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -20℃-60℃
Relative humidity 5%--80%
IP protection level 54
Rated power 20W
Input control signal RS232, 485
Running speed 40 people/minute
Infrared beam 6 pairs
Average life span 3 million times
Channel width 550mm
Door wing material 15mm plexiglass, 35mm sponge body with soft wings
Product Size 1200*300*990mm
Channel frame National standard 1.2mm~2.0mm thick + 304 stainless steel
Package weight About 55 KG (single side road)

Main Functions:
1.Only authorized personnel can pass, and an audible and visual alarm will be issued when unauthorized personnel break in
2.Flexible selection of always open and always closed modes, two-way passing can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
3.Anti-following tracking control technology, strictly preventing unauthorized personnel from passing through
4.Anti-pinch function, when the door wing is blocked during the reset process, it will automatically rebound or the motor will automatically stop working within the specified time, and sound and light alarms will be issued at the same time
5.Anti-shock function, when the door opening signal is not received, the door wing is automatically locked, and the maximum impact force is 120Nm
6.With self-detection, self-diagnosis, and automatic alarm functions; including illegal intrusion alarm, anti-pinch alarm, and anti-tailing alarm
7.Remote control management function
8.It can be run online or offline
9.LED passing direction indication, display passing status
10.When the power is off, the door wings automatically retract into the chassis, the passage is in a clear state, and personnel can pass freely to prevent panic
11.With automatic reset function, after opening the door, the system will automatically cancel the user's permission to pass this time if the user does not pass within the specified time,and you can set the passing time



1.Can you accept OEM or ODM ?
Yes, We provide customized services according to your detailed requirements, also can design unique gate

according to your actual site, and produce different sizes, software and functions.

2. How do you do after-sales service?
We provide life-long technical support online through e-mail, video, telephone, etc., 7*24 hours a day service,

One-year warranty and lifetime technical support.

3. How about the delivery time?
It takes 7-10 working days for regular products. It takes 15-20 working days for customized products.

4.What is your payment method?
T/T 30% as deposit, 70% before delivery. Before you pay the balance, we will show you photos or videos of the

products and packages.
