Full Height Construction Site Turnstiles Bidirectional RFID Card Rotating Entrance Gate

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW802
Minimum Order Quantity 1
Price Negotiable
Packaging Details wood cases
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Dimension L1500*W1500*H2300mm Passage Width 600mm
Pass Speed ≤25person/minutes Passage Direction Bi-directional
Service Life ≥5 Million Times Traffic Direction One-way Or Two-way Traffic
Highlight

Bidirectional Construction Site Turnstiles

,

RFID Construction Site Turnstiles

,

RFID rotating entrance gate

Leave a Message
Product Description

Affordable full height turnstiles security gates single lane RFID card


Long stainless steel box, luxurious and beautiful appearance, sturdy and durable
With a personalized installation interface (convenient to integrate magnetic card, barcode, ID card and other reading and writing equipment)
Smooth operation, soft buffering, low noise, no mechanical shock
The surface of the movement is electroplated with white heavy zinc acid, which is rust-proof and durable
Programmable gate control, with a variety of working modes to choose from, one-way or two-way control can be set (set by the user)
Power-off opening: power-off unlocking and power-off locking. Under normal circumstances, the power is cut off and the lock is unlocked. When there is no power, the gate can pass through freely.
It has a unified and standard external electrical interface, which can be freely connected with various reading and writing devices, which is convenient for system integration.


1. who are we?
We are based in Guangdong, China, start from 2014,sell to Domestic Market(30.00%),South America(10.00%),Southeast Asia(10.00%),North America(5.00%),Eastern Europe(5.00%),Oceania(5.00%),Mid East(5.00%),Eastern Asia(5.00%),Western Europe(5.00%),Central America(5.00%),Northern Europe(5.00%),Southern Europe(5.00%),South Asia(5.00%). There are total about 51-100 people in our office.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3. what can you buy from us?
Tripod Turnstile,Speed Glass Gate,Barrier Gate,Swing Gate Opener,Sliding Gate Opener
4. why should you buy from us not from other suppliers?
Chisung Technology is integrating intelligent machinery and electronic technology, and all the hardware and software technology is designed by ourselves and advanced in the markets; ODM/OEM to meet to the different clients in China and overseas markets


Technical parameter
Product number CW802
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -25-70
Relative humidity 5%--90%
Motor type 90° full-height movement
Rated power Quiescent power consumption:50W,Dynamic power consumption:100W
Direction of passage One-way or two-way
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 20 people/minute
Opening time Non-adjustable
Number of trouble-free runs 5 million times
Channel width 600mm
Product Size 1500*1500*2300mm
Channel frame 1.2~2.0 thick 304 stainless steel(customization)
Package weight About 130 KG

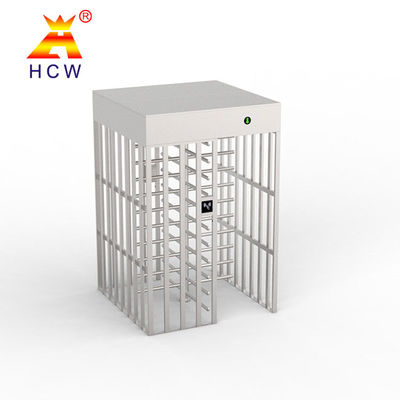

Full Height Construction Site Turnstiles Bidirectional RFID Card Rotating Entrance Gate 0

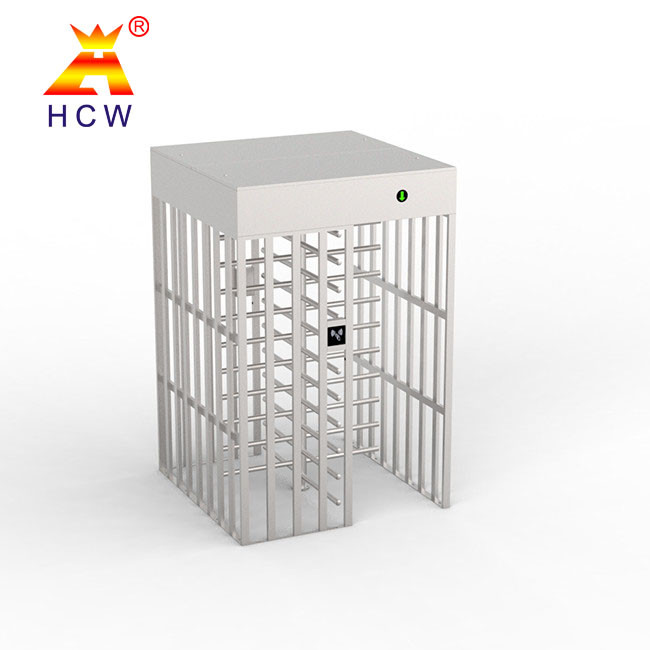

Full Height Construction Site Turnstiles Bidirectional RFID Card Rotating Entrance Gate 1

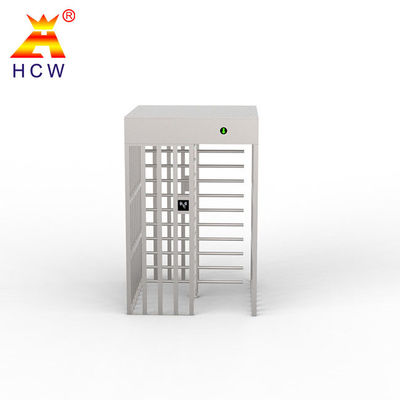

Full Height Construction Site Turnstiles Bidirectional RFID Card Rotating Entrance Gate 2

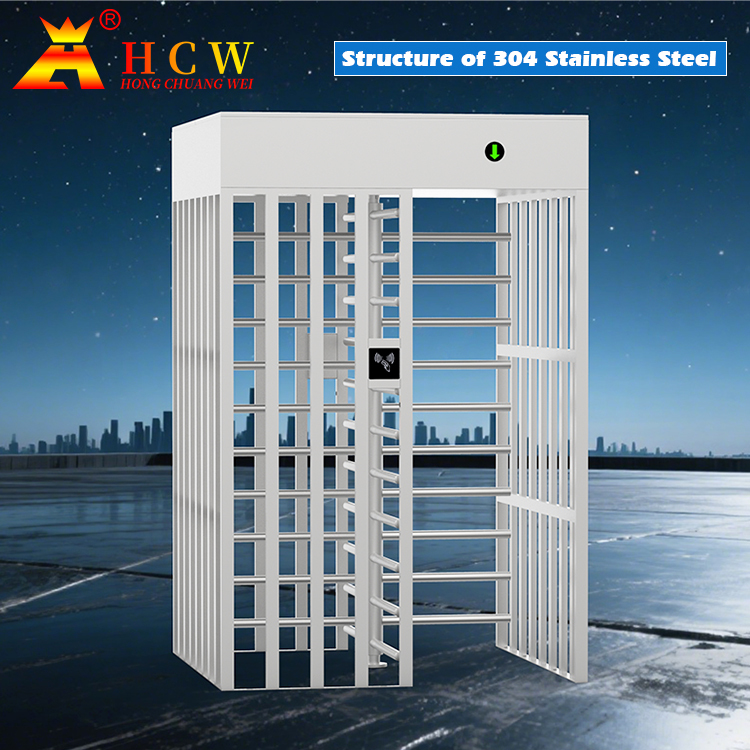

Full Height Construction Site Turnstiles Bidirectional RFID Card Rotating Entrance Gate 3

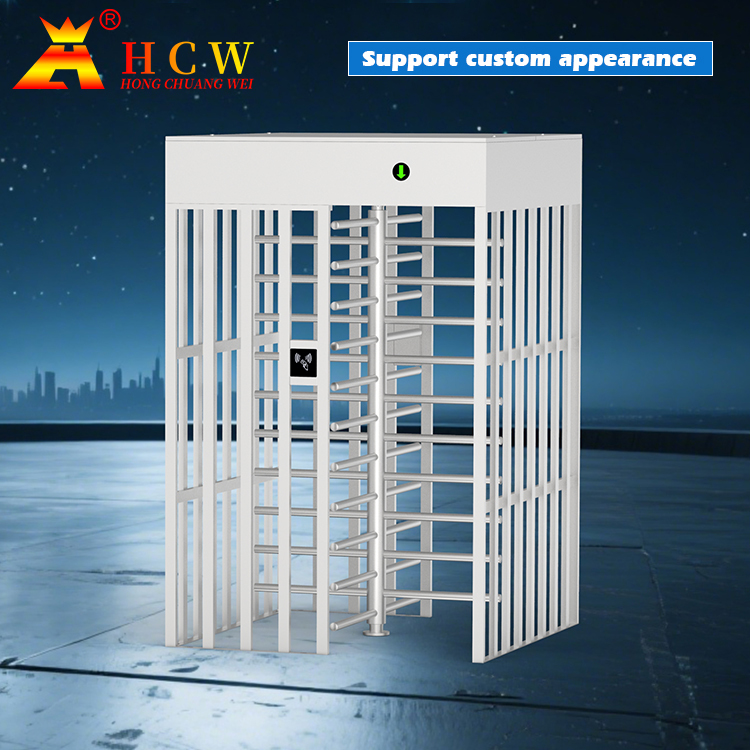

Full Height Construction Site Turnstiles Bidirectional RFID Card Rotating Entrance Gate 4
