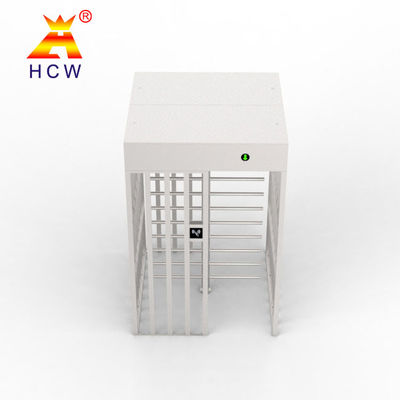

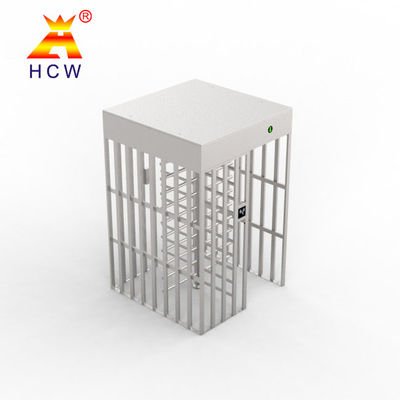

304 Stainless Steel 2000mm Full Height Turnstile Security Doors For Football Stadium

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW802
Minimum Order Quantity 1
Price USD 1000-1500 per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Power Supply AC220V±10%, 50Hz Static Power Consumption <50W
Dynamic Power Consumption <100W Rotation Direction One-way Or Two-way
Communication Interface 232, RS485 Standard Traffic Direction One-way Or Two-way Traffic
Size Length 1500*width 1500*height 2300, Net Height 2000mm Fence Length 600mm
High Light

2000mm Full Height Turnstile

,

304 Stainless Full Height Turnstile

,

2000mm football stadium turnstiles

Leave a Message
Product Description

304 stainless steel 2000mm full height turnstile used for stadium



Long stainless steel box, luxurious and beautiful appearance, sturdy and durable
With a personalized installation interface (convenient to integrate magnetic card, barcode, ID card and other reading and writing equipment)
Smooth operation, soft buffering, low noise, no mechanical shock
The surface of the movement is electroplated with white heavy zinc acid, which is rust-proof and durable
Programmable gate control, with a variety of working modes to choose from, one-way or two-way control can be set (set by the user)
Power-off opening: power-off unlocking and power-off locking. Under normal circumstances, the power is cut off and the lock is unlocked. When there is no power, the gate can pass through freely.
It has a unified and standard external electrical interface, which can be freely connected with various reading and writing devices, which is convenient for system integration
It has a clear passage indication function, prompting the passage status (passable "↙", prohibited passage "X")
Automatic reset function: After opening the gate, the system will be automatically locked if it is not passed within the specified time
Extended functions: technical functions, display screens, direction indicators, top lights, frame barriers
Anti-rotation function: After the brake lever is rotated to a certain angle, the strong reverse rotation of the brake lever will be regarded as retrograde, and the system will automatically lock to prevent pedestrians from moving backwards



Fence angle 90 degrees
Swing arm length outside the chassis ≤600mm
Opening time not adjustable
Number of people passing 20 people/minute
Working environment temperature -40°C~80°C
Relative humidity ≤95%

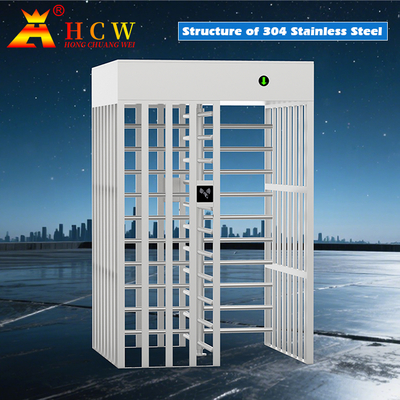

Case material 304 stainless steel
Thickness 1.5mm
