Parking Lot Barrier Arm Gate 6m Security Boom Gate Remote Control 160W
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | 1.5mm Cold Roll Plate | Housing Material | Cold-roller Sheet |
|---|---|---|---|
| Weight | 50kg | Remote Distance | ≥30M |
| Motor | Brushless DC | Motor Power | 160W |
| Take-off Time | 6s-9s | Warranty | 1 Year |
| High Light | 160W Barrier Arm Gate,6m security boom gate,6m Barrier Arm Gate |
||
Product Description

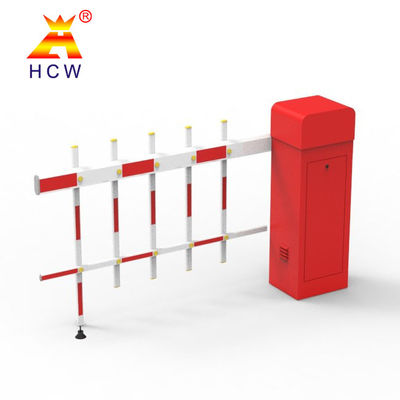

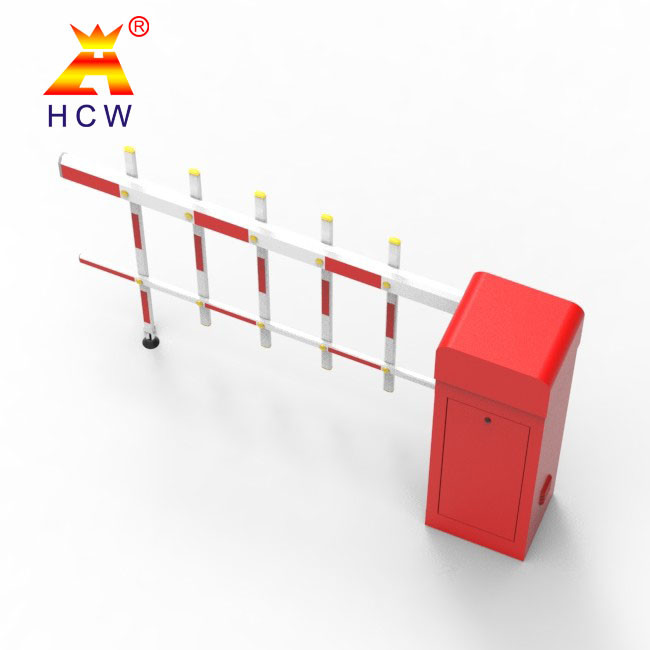

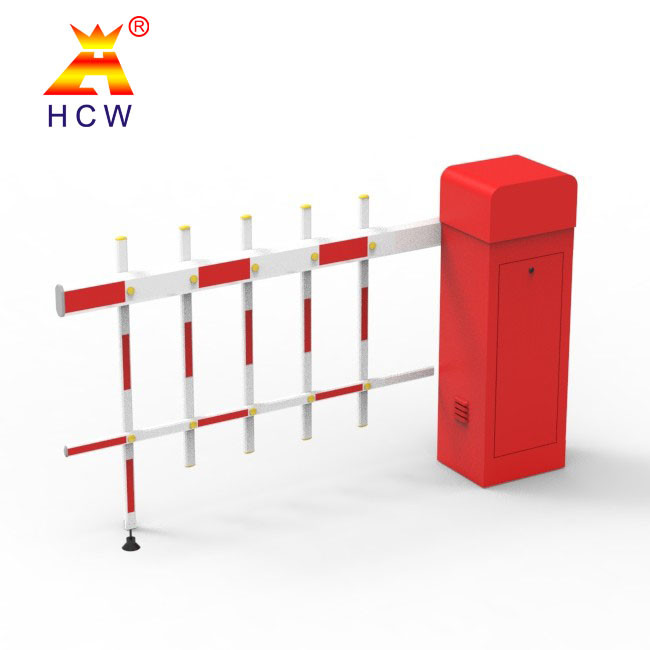

Parking Lot Barrier Arm Gate 6m security boom gate Remote Control 160W
Product Introunction
The medium-sized airborne gate four-lane barrier (CW-KM03) is a new type of barrier barrier launched by Hongchuangwei.It adopts digital control technology to monitor the entire process of barrier barrier operation and realize intelligent and simple barrier barrier operation management.The wireless remote control can be used for lifting,lowering and stopping or manual button operation.The barrier movement adopts a specially designed one-piece movement.
Function and Features
- Innovative electronic clutch design: press the electronic clutch switch to unlock when power off, then the
boom can be raised up directly.
- No limit switch design: the motor can detect the boom position automatically.
- Bi-direction boom holder design: left-installation and right-installation can be exchanged easily and quickly.
- Three springs available can extend the spring service life.
- Auto-detect barrier close after poweron,open/close speed is adjustable.
- With auto-reversing on obstruction function.
- Infrared photocell interfaceis available.(need to install photocell device).
- Loop detector interface is available, to avoid hitting the vehicle,and control the boom falling down
Technical Parameters
| Chassis | 1 |
| Movement (installed in the case) | 1 set |
| Main control system (installed in the case) | 1 set |
| Hand-made remote control | 2 pcs |
| keys | 4 |
| Manual button | 1 |
| Wiring diagram | 1 |
| Product identification card | 1 |
| Manual | 1 |
