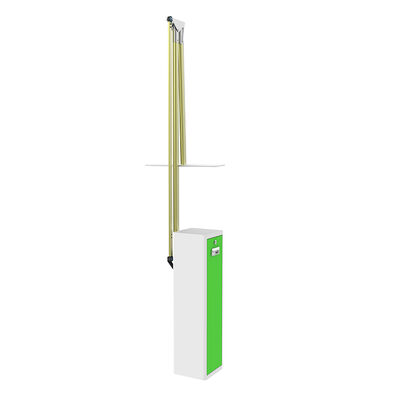

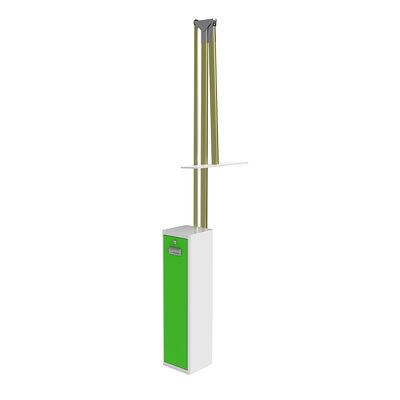

HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed and DC Brushless Motor
| Place of Origin | China |
|---|---|
| Brand Name | HCW |
| Certification | CE |
| Model Number | S300 |
| Minimum Order Quantity | 2 piece |
| Price | Negotiable |
| Packaging Details | wooden case |
| Delivery Time | 5-8 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Brand Name | HCW | Product Model | S300 |
|---|---|---|---|
| Chassis Material | Cold Rolled Plate | Arm Length | 1-6 Meters |
| Arm Material | Aluminum/foam | Motor Type | DC Brushless Motor |
| Speed | 1.5-3S Adjustable | Product Size | 340*280*1045mm |
| Safety & Control Features | Integrated Control Mainboard Dedicated For Parking Barriers | Arm Type | Straight/Folding/Fence/LED Foam/Telescopic Arms |
| Highlight | Extreme weather resistance Boom Barrier Gate,1.5-3S adjustable speed Automatic Barrier Gate,DC Brushless Motor Parking Barrier Gate |
||
Product Description
HCW Extreme Weather Resistance Automatic Barrier Gate with 1.5-3S Adjustable Speed Boom Barrier
HCW robust parking barrier gate features 1.5-3 second adjustable speed and exceptional tolerance in extreme weather conditions, providing reliable traffic control in high-humidity environments.
Product Overview
The S300 barrier gate is a durable traffic control solution designed for efficient operation. Operating on AC 220V±10% (50Hz), it withstands temperatures from -25℃ to 70℃ and humidity levels of 5%-95%, ensuring reliable performance in harsh conditions. Its bidirectional design allows flexible installation.
Technical Specifications
| Brand Name | HCW |
| Product Model | S300 |
| Chassis Material | Cold Rolled Steel Plate |
| Boom Length | 1-6 meters |
| Arm Material | Aluminum/Foam |
| Motor Type | Brushless DC Motor |
| Speed | 1.5-3S Adjustable |
| Product Dimensions | 340×280×1045mm |
| Warranty | 1 Year |
| Humidity Range | 5% - 95% |
| Safety & Control Features | Anti-collision Rebound/Loop Detection/Infrared |
| Arm Types | Straight/Folding/Fence/LED Foam/Telescopic Arm |
Key Features and Benefits
- Smart Operation: Supports wireless remote control (up/down/stop) and manual button operation, seamlessly integrating into modern access control systems
- Patented Integrated Core Mechanism: Combines frame, reducer and transmission system to reduce vibration and improve operational precision
- Adjustable and Safe Arm System: Tension spring system safely adapts to different arm lengths, providing high security and flexibility
- Durable and Aesthetic Housing: Corona high-temperature powder coating (180°C-250°C) provides corrosion resistance and maintains smooth appearance
- Multi-layer Safety Protection: Customizable safety system including ground loop, pressure sensors and infrared detectors for 360° protection
Motor and Performance
Equipped with brushless DC motor (80W/120W), this telescopic barrier provides fast 3-second or stable 6-second lifting cycles. The compact yet powerful CW203 telescopic barrier is ideal for parking lots, toll stations, and secure areas.
