Bidirectional Pass Access Control Face Recognition Turnstile Gate Half Height

Place of Origin Shenzhen,China
Brand Name hongchuangwei
Certification CE
Model Number CW427
Minimum Order Quantity 1
Price USD700~1200 per piece
Packaging Details wooden case
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Name Swing Turnstile Material 304 Stainless Steel
Case Thickness 0.95mm Top Cover Thickness 1.15mm
Lane Width 55cm Pass Direction Bidirectional
Waterproof IP56 Outdoor Use Support
High Light

Bidirectional Access Control Turnstile Gate


330W Access Control Turnstile Gate


30W half height turnstile

Leave a Message
Product Description

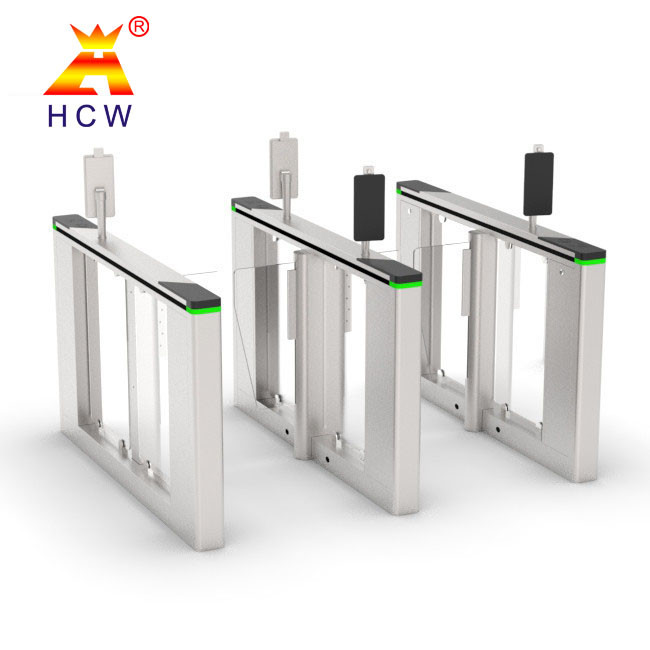

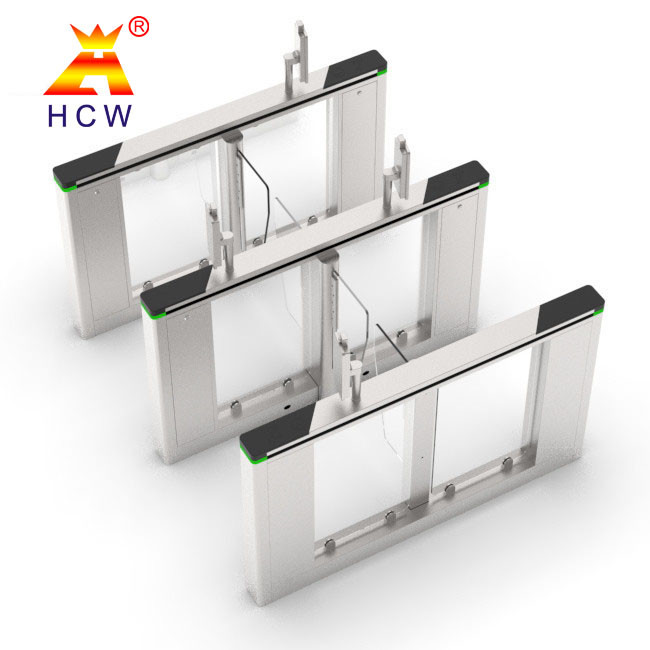

Bidirectional Pass Access Control Face Recognition Turnstile Gate Half Height


CW427 swing speed gate turnstile is a high-end speed gate for pedestrian passages. The turnstile movement adopts a servo drive + a high-speed 40W servo motor, and the door opening speed is very fast, up to 0.3-0.5 seconds. Equipped with 8 pairs of infrared detection sensors, it is highly effective anti-tailing, strictly prevent unauthorized personnel from passing. It can be passed in unidirectional or bidirectional, and the LED indicator can show the direction of passage. The product has anti-pinch and anti-shock functions. The swing arm rebounds when it encounters resistance or the motor automatically stops working within a specified time, effectively preventing personnel from being pinched.


The swing arm automatically opens after power failure, allowing people to pass freely, which meets the fire safety requirements. The box body is made of 304 stainless steel, the door wing is made of plexiglass, and the main board of the turnstile adopts STC CPU chip, which has good stability and long service life. This turnstile can be connected to various access control systems, supporting various card readers, barcode readers, ID card readers, QR code recognition, fingerprint recognition, biometric face recognition, etc. This kind of speed gate turnstile is widely used in entrance and exit control of shopping malls, business centers, government and enterprise office buildings, high-end residential areas, etc., to prevent crowded people and ensure safe passage.


Technical parameter:
Product model CW427
Voltage AC220V±10%, 50HZ±10% HZ
Working temperature -40℃-80℃
Relative humidity ≤90% No condensation
Motor servo motor
Rated power 40W
Input control signal Switch value or RS232, 485
Running speed 30~50 people/minute
Infrared beam 8 pairs
Number of trouble-free runs 2 million times
Average life span 3 million times
Channel width 600mm~1100mm
Door wing material 10mm plexiglass
Product Size L 1600mm x W 120mm x H 980mm
Channel frame National standard 1.5mm 304 stainless steel
Package weight About 45 KG (single side road)


Bidirectional Pass Access Control Face Recognition Turnstile Gate Half Height 0
