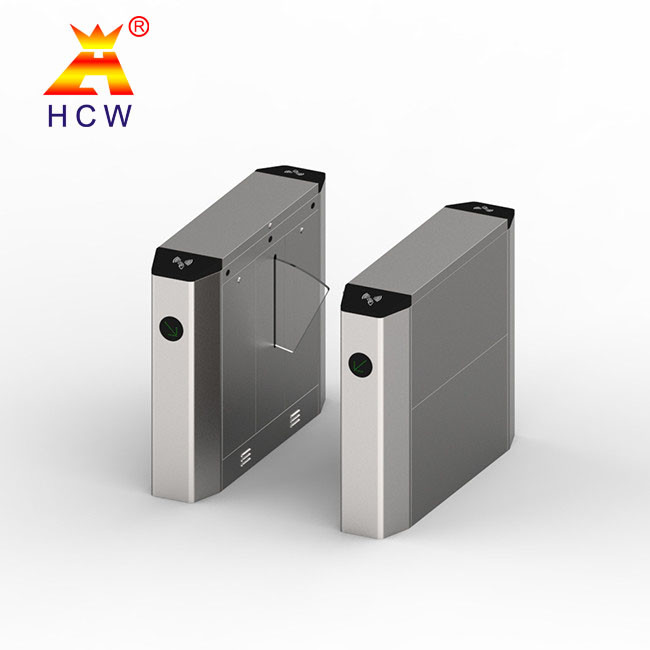

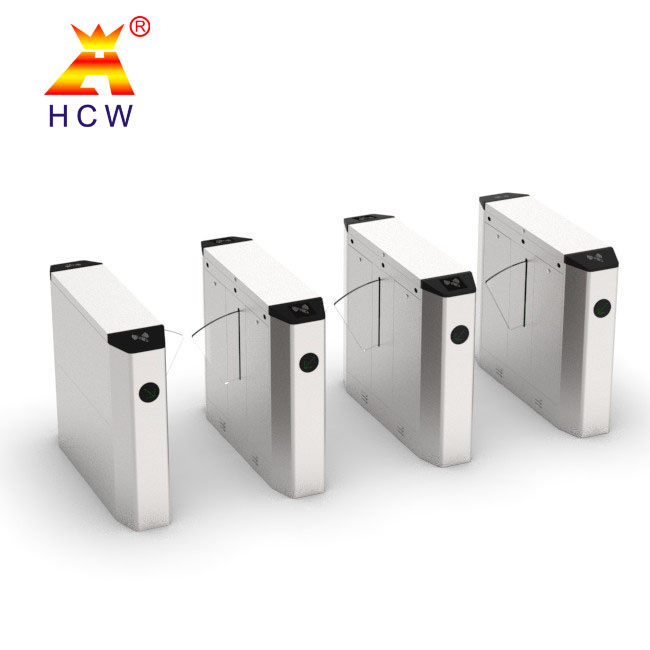

SS304 Flap Barrier Turnstile Office Building Turnstiles 550mm Channel Width

Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW510
Minimum Order Quantity 2
Price USD 300-450USD per piece
Packaging Details wood cases
Delivery Time 5-8 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Power Supply AC220V±10%, 50Hz IP Protection Level 42
Rated Power 20W Input Control Signal Switch
Number Of Passer Normally Closed 30 People/min, Normally Open 40 People/min Number Of Infrared 3 Pairs
Number Of Trouble-free Operations 3 Million Times Channel Width 550mm
High Light

20W Flap Barrier Turnstile


SS304 Flap Barrier Turnstile


SS304 Office Building Turnstiles

Leave a Message
Product Description

3 million times motor flap turnstile with 304 stainless steel


CW510 Intelligent octagonal inclined plane wing turnstile, use TC CPU chip, DC brushed motor, 3 pairs of infrared detection sensors, long life and high stability, high efficiency and anti-tailing, support various IC/ID card readers, barcode readers, ID cards Readers, etc., easy to hook up with the access control system. It is widely used in the entrance and exit control of CBD business centers, government and enterprise office buildings, high-end residential areas, kindergartens, etc.

  • Only authorized personnel can pass, and when unauthorized personnel break in, it will emit sound and light buzzer alarm
  • Flexible selection of open and closed modes, two-way traffic can also be set according to the flow of people, the opening and closing speed of the door wing can be set to improve the efficiency of the equipment
  • Anti-pinch function, when the swing arm is in the process of resetting, it will automatically rebound or the motor will automatically stop working within the specified time
  • Anti-shock function, the electromagnetic lock will automatically lock the swing arm when it does not receive the door opening signal. When the swing arm is hit, the swing arm will automatically open to
  • LED traffic direction indication, display traffic status
  • When the power is cut off, the swing arm automatically opens the cabinet, the passage is in a smooth state, and personnel can pass freely to prevent panic
  • With automatic reset function, after opening the door, the system will automatically cancel the user's permission for this pass and set the pass time if the user does not pass within the specified time.
Technical parameter
Product Model CW510
Power supply AC220V±10%,50HZ±10% HZ
Working environment -25℃-70℃
Relative humidity 5%--90%
Motor power 20W
Communication interface switch value
Number of passers 30~40/min
Infrared quantity 3pairs
Working life 2 million times
Normal service life 3 million times
Channel width size 550mm
Wing material 15mm Plexiglass
Product size L 00mm x W 80mm x H 90mm
Chassis Frame 1.0 thickness 304D stainless steel
Packing weight About 55kg (single channel)
