Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min

  • Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min
  • Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min
  • Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min
  • Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min
  • Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min
Place of Origin Shenzhen,China
Brand Name Hongchuangwei
Certification CE
Model Number CW495
Minimum Order Quantity 2
Price Negotiable
Packaging Details wood cases
Delivery Time 7-15 working days
Payment Terms T/T
Supply Ability 100 pieces per day

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Product Name Entrance Swing Turnstile Application Security Access Control Management
Warranty 1 Year Passing Speed 30-40 Persons/min
Protection Class IP54 Infrared Logarithm 6 Pairs
Chassis Material 304 Stainless Steel With A Thickness Of 1.2mm
Highlight

40 Persons / Min Supermarket Entrance Gate

,

IP55 Supermarket Entrance Gate

,

IP55 pedestrian barrier gate
Leave a Message
Product Description
Newly designed pedestrian access speed gate IP54 OEM/ODM

Millisecond-level Response, Unimpeded Passage


High-speed Drive Technology: Fast opening and closing in 0.8 seconds, with a hourly passenger throughput of over 1,200 people, perfectly suitable for ultra-peak passenger flow scenarios such as subways, airports, and convention centers.


Intelligent Speed Control: Automatically adjusts the swing arm speed according to passenger flow, with quiet and slow movement during off-peak hours and fast passage during peak hours.


Super Safety Protection


Triple Anti-pinch Protection: High-sensitivity infrared matrix + mechanical pressure sensing + current detection, with immediate rebound when encountering obstacles, force ≤8N, and safety level meeting CE certification standards.


Dynamic Anti-tailgating: Infrared accurately identifies illegal intrusion and reverse gate rushing, with an alarm response time <0.3 seconds.


Anti-riot Reinforced Structure: 10mm tempered glass swing arm + stainless steel bearings, capable of withstanding 50kg impact force, and IP54 protection to withstand extreme outdoor environments.


Intelligent Interconnection for All Scenarios

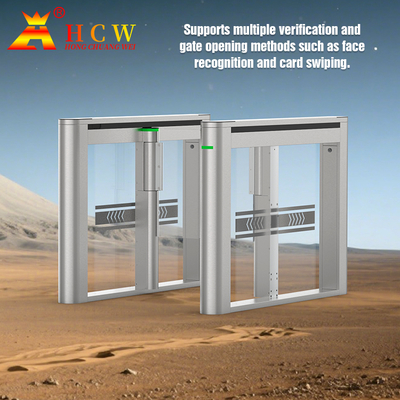

Touchless Passage Experience: Supports new-generation biometric technologies such as face swiping and touchless payment, improving passage efficiency by 60%.


Multi-system Integration: Seamlessly connects to access control and attendance systems, ticketing systems, and public security big data platforms, meeting smart city-level management needs.

Technical parameter
Product number CW495
Voltage AC220V±10%, 50HZ±10% HZ

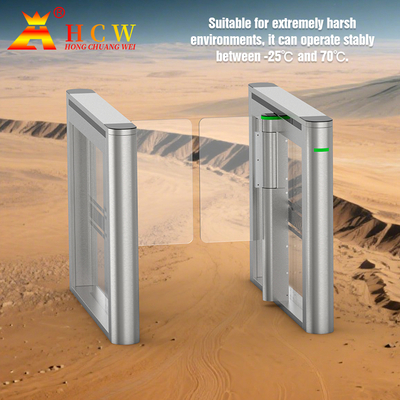

Working temperature -25℃-70℃
Relative humidity 5%--90%
Motor type 40W Brushless DC
Rated power 100W
Input control signal Switch quantity (standard configuration does not include RS232, 485)
Running speed 30-40 people/minute

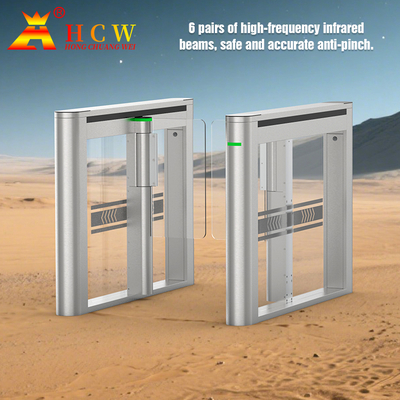

Infrared beam 6 pairs
Number of trouble-free runs 4 million times
Average life span 5 million times
Channel width 600~1000mm
Swing arm material 10mm acrylic glass
Product Size 1400*130*990mm

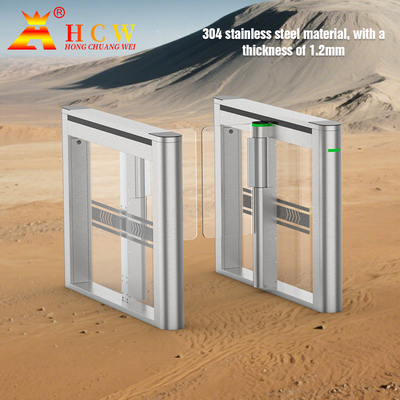

Channel frame 1.2 thick 304 stainless steel
Package weight About 55 KG (single side road)


Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min 0

Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min 1

Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min 2

Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min 3

Safety Pedestrian Barrier Gate Supermarket Entrance Gate IP54 30-40 Persons / Min 4
