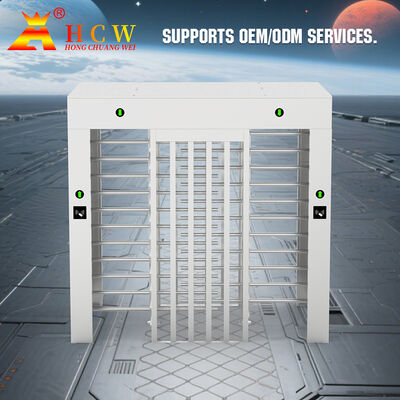

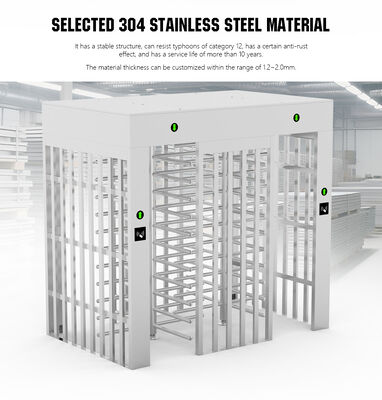

HCW Secure Full Height Turnstile with 2400*1500*2300mm Dimension Tempered Glass and 304 Stainless Steel for High Security Access Control
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongchuangwei |
| Certification | CE |
| Model Number | CW802-2 |
| Minimum Order Quantity | 1 |
| Price | Negotiable |
| Packaging Details | wood cases |
| Delivery Time | 7-15 working days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Temperature | -25 To 70 Degrees | Humidity | <95%, Without Concretion |
|---|---|---|---|
| Passage Width | <=600mm | Dimension | 2400*1500*2300mm |
| Power Supply | AC220~240 V | Traffic Direction | One-way Or Two-way Traffic |
| Fence Length | 600mm | ||
| Highlight | 2400*1500*2300mm Full Height Turnstile,Tempered Glass Security Turnstile Gate,304 Stainless Steel Pedestrian Access Control Turnstile |
||
Product Description
HCW Secure Full Height Turnstile with Fingerprint, QR Code Scanner and Face Recognition
The full height turnstile features a robust mechanical design for unsupervised access control in offices and buildings, providing intelligent pedestrian management. Its impenetrable construction prevents unauthorized access to restricted areas. Users must present valid credentials (card, fingerprint, QR code, or face recognition) for passage.
High Security Features
- Fully enclosed design (height ≥2m) prevents climbing or crawling through
- 304 stainless steel cabinet with tempered glass/barrier structure for impact resistance
- Quick-release gate arm mechanism for emergency situations and fire escape compliance
Durable Construction
- 304 stainless steel with brushed/polished surface treatment
- Resistant to acid, alkali, and rust for harsh outdoor environments
Intelligent Control System

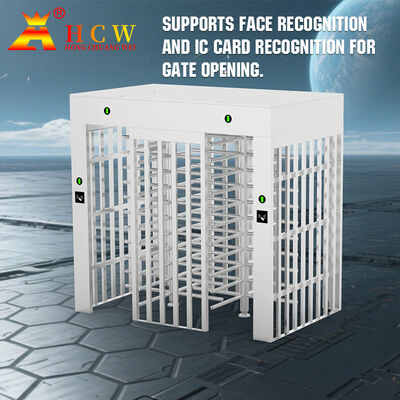

- Multiple verification methods: IC card, fingerprint, face recognition, QR code

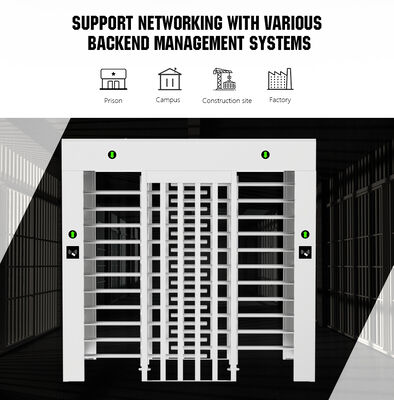

- Compatible with access control systems (TCP/IP, RS485 communication)
- Infrared anti-pinch detection with automatic rebound for pedestrian safety
Flexible Configuration Options
- One-way or two-way passage modes
- Customizable gate rotation direction (clockwise/counterclockwise)
- Expandable functions: sound/light alarm, counting statistics, remote management
High-Flow Performance
- Motor-driven with fast response (≤20 people/minute throughput)
- Ideal for high-traffic areas: subways, airports, venues
Technical Specifications
| Product Number | CW802-2 |
|---|---|
| Voltage | AC220V±10%, 50HZ±10% HZ |
| Working Temperature | -25℃ to 70℃ |
| Relative Humidity | 5% to 90% |
| Motor Type | 90° full-height movement |
| Rated Power | Quiescent: <50W, Dynamic: <100W |
| Direction of Passage | One-way or two-way |
| Input Control Signal | Switch quantity (RS232/485 not included) |
| Running Speed | 20 people/minute |
| Opening Time | Non-adjustable |
| Trouble-free Runs | 5 million times |
| Channel Width | 600mm |

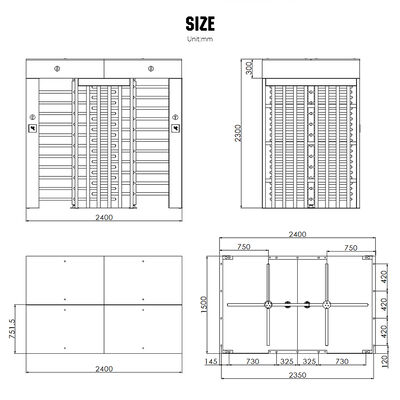

| Product Size | 2400×1500×2300mm |

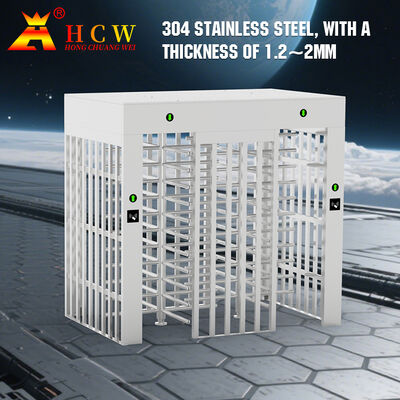

| Channel Frame | 1.2-2.0mm thick 304 stainless steel (customizable) |
| Package Weight | Approx. 250KG |
