AC220V Power Supply Swing Barrier Turnstile with IP46 Protection and 30-40 People/Minute Capacity
| Place of Origin | Shenzhen,China |
|---|---|
| Brand Name | Hongchuangwei |
| Certification | CE/ISO 9001 |
| Model Number | CW421 |
| Minimum Order Quantity | 2 pieces |
| Price | Negotiable |
| Packaging Details | wood cases |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T |
| Supply Ability | 100 pieces per day |
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Product Model | CW421 | Power Supply Voltage | AC220V |
|---|---|---|---|
| Working Environment Temperature | -25℃~70℃ | Relative Humidity | 97% |
| IP Protection Level | 46 | Rated Power | 25W |
| Trouble-free Operation Times | 2 Million Times | Running Speed (XX People/minute) | 30~40 People/minute |
| Highlight | AC220V Power Supply Swing Barrier Turnstile,IP46 Protection Swing Turnstile Gate,30-40 People/Minute Pedestrian Swing Gate |
||
Product Description
HCW Swing Barrier Turnstile with Brushless Motor & Infrared Anti-Pinch Safety
Pedestrian Swing Turnstile Barrier Gate with Face Recognition

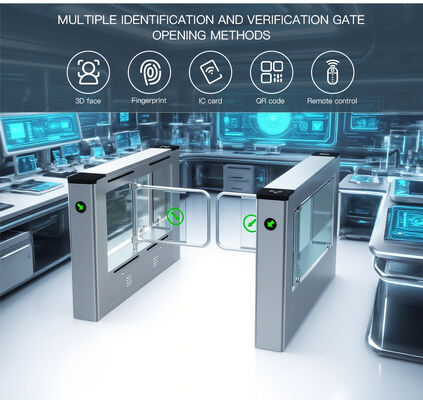

The CW421 is a high-performance anti-pinch swing turnstile gate featuring STC CPU chip technology and brushless motor operation. This versatile system supports multiple access methods including IC/ID card readers, facial recognition, fingerprint scanning, QR codes, and passport verification. Equipped with 6 pairs of infrared sensors for enhanced safety, it's ideal for office buildings, subways, schools, gyms, and other high-traffic areas.
Key Features
- Access control with audible/visual alarms for unauthorized entry attempts
- Configurable operation modes (always open/closed) with adjustable door wing speed
- Advanced anti-following tracking technology prevents unauthorized passage
- Safety rebound mechanism with motor cutoff when obstruction detected
- 120Nm impact-resistant automatic locking system
- Self-diagnostic system with alarms for intrusions, pinching, and tailgating
- Remote management capability with online/offline operation modes
- LED directional indicators display passage status
- Emergency power-off release allows free passage during outages
- Automatic reset function with configurable passage timing
Technical Specifications
| Product Model | CW421 |
|---|---|
| Motor Type | DC brushless motor |
| Infrared Sensors | 6 pairs |
| Channel Width | 600-1100mm |

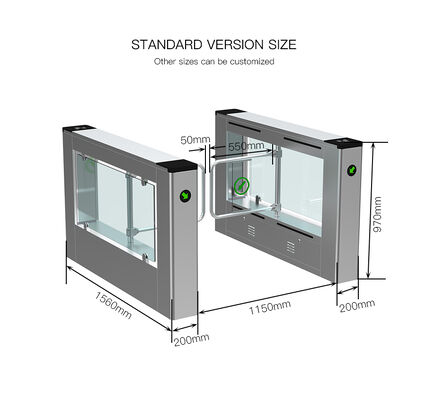

| Dimensions | 1560×220×990mm (L×W×H) |
| Weight | Approx. 68kg |
| Operating Humidity | ≤90% (non-condensing) |
| Door Wing Material | Stainless steel pipe (standard) |
